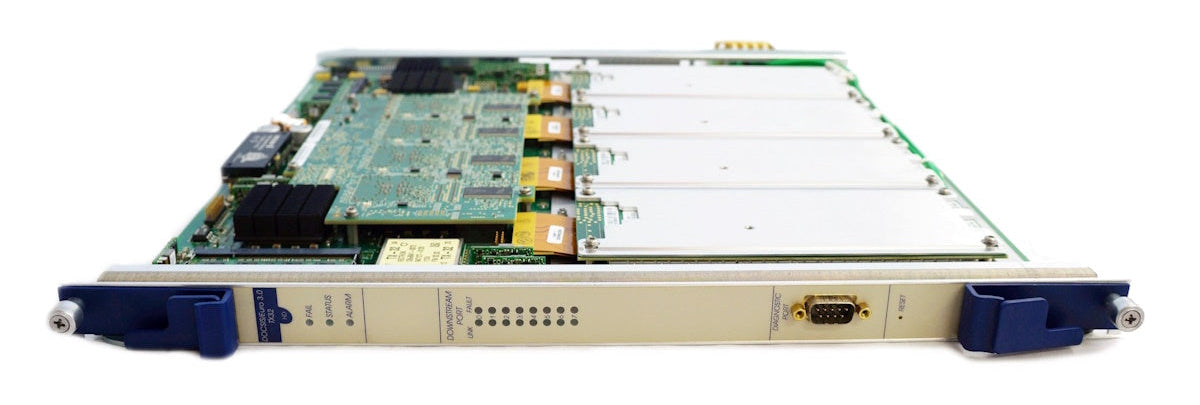

BSR 64000 Decoupled Downstream Module TX32
Motorola · BSR 64000 TX32
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
The Motorola TX32 allows cable operators to significantly increase ‘protected’ downstream capacity while fundamentally changing the economics associated with ultra-broadband triple-play services. The TX32 is easily deployed into existing headends to support DOCSIS 3.0 I-CMTS architectures that enable flexible scaling of downstream bandwidth to support ultra-broadband services.
| FLEXIBLE CONFIGURATIONS | |
|---|---|
| Eight downstream RF ports | |
| Integrated four-channel QAM modulation and RF block-upconversion per RF port | |
| One, two, three*, or four adjacent QAMs per channel per RF port | |
| Maximum of 32 downstream QAMs per module | |
| Configurable DOCSIS, J-DOCSIS and EuroDOCSIS operation | |
| Deployable with existing SRM, HSIM, and 2:8 DOCSIS/EuroDOCSIS modules | |
| Combined 2:8 and 4x32 downstream channel bonding with non-adjacent 2:8 downstream channels | |
| STANDARDS-BASED INTEROPERABILITY | |
| DOCSIS 1.x-, 2.0-, and 3.0-compliant | |
| Compatible with DOCSIS, J-DOCSIS, and EuroDOCSIS specifications | |
| Based on Broadcom BCM3215 Octal Downstream DOCSIS 3.0 Core MAC Chip | |
| MANAGEMENT | |
| Compatible with all relevant BSR 64000 CLI commands | |
| Supports all relevant DOCSIS 1.x, 2.0, and 3.0 MIBs | |
| Enables downstream per-flow queuing | |
| RF | |
| Downstream Frequency Range ($f_c$) | |
| DOCSIS | 91 to 870 (999*) MHz |
| EuroDOCSIS | 112 to 869 (998*) MHz |
| Downstream Modulation | 64 and 256 QAM |
| Downstream Per-Channel Bit Rates | |
| DOCSIS | 27 to 38 Mbps |
| EuroDOCSIS | 36 to 56 Mbps |
| Output Level | 44 to 60 dBmV |
| Bandwidth | |
| DOCSIS | 6 MHz |
| EuroDOCSIS | $\leq$8 MHz |
| Typical Modulation Error Rate | 47 |
| Output Load Impedance | 75 $\Omega$ |
| PHYSICAL | |
| Occupies | a single slot in the BSR 64000 chassis |
| Hot-swappable | with redundant rear I/O module |
| F-type connector | on rear I/O module for RF |
| Diagnostic Port | DB-9 |
| LEDs | Fail, Status, Alarm, Link, Fault |
| Dimensions | 15.0 in x 15.0 in x 0.12 in (38.1 cm x 38.1 cm x 0.3 cm) |
| Weight | 6.8 lb |
