C1G Cable Modem Termination System
Casa Systems · C1G-SYS
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204
Description
Technical Specifications

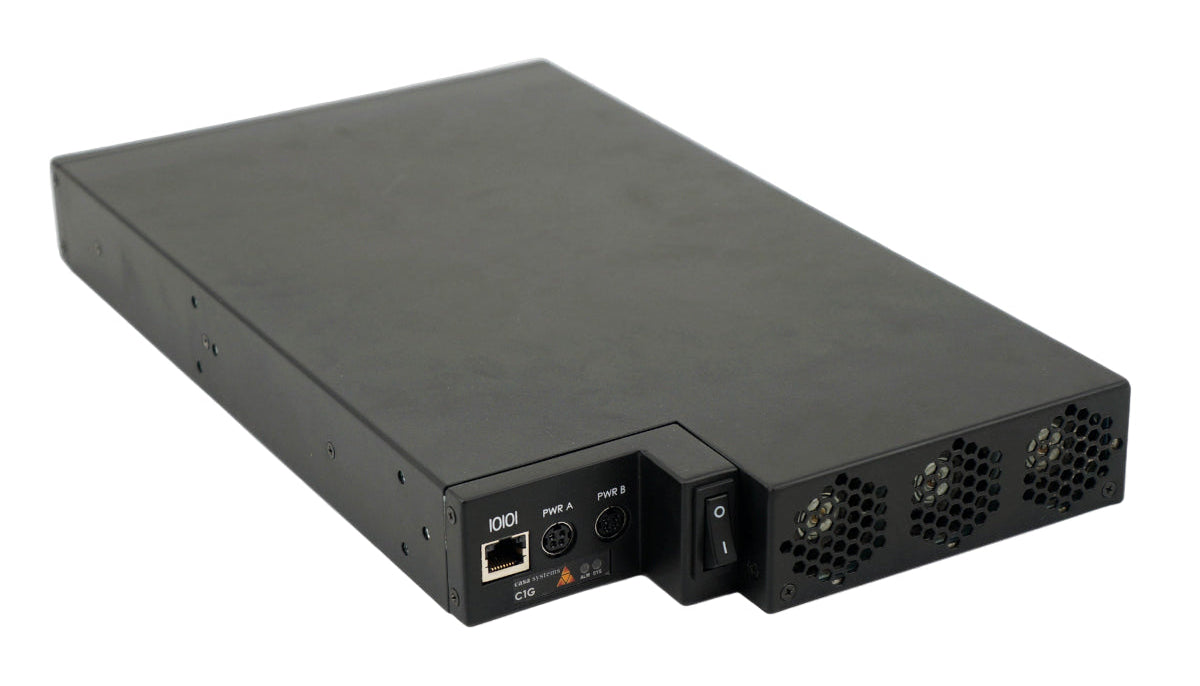

The Casa Systems C1G Cable Modem Termination System (CMTS) is a new class of cable edge device that implements all of the DOCSIS 3.0 features enabling service providers to cost effectively offer highly scalable broadband services such as IPTV, video-over-IP, interactive gaming, as well as traditional broadband access and VoIP services.
Due to its extremely compact size (15 in x 8.75 in x 1RU), the C1G can be easily deployed in locations such as Multi-Dwelling Units (MDU), hotels and motels (hospitality), and small hubs.
| System | |
|---|---|
| Network Interfaces | 2x1 Gbps |
| Downstream Interfaces | 1 downstream interface per system |
| Upstream Interfaces | 2 upstream interfaces per system |
| DOCSIS Features | |
| Compliance | Full DOCSIS 3.0 compliant, Full EuroDOCSIS 3.0 compliant |
| Downstream Channel Bonding | DOCSIS 3.0 downstream channel bonding from 2 to 8 channels |
| Upstream Channel Bonding | DOCSIS 3.0 upstream channel bonding from 2 to 8 channels |
| Encryption / Decryption | DOCSIS 3.0 AES encryption/decryption |
| IP Support | DOCSIS 3.0 IPv6, DOCSIS 3.0 Multicast |
| Legacy Support |
* Complete DOCSIS/EuroDOCSIS 1.1 features * DOCSIS/EuroDOCSIS 2.0 A–TDMA * PacketCable 1.5 compliant * PacketCable MultiMedia |
| Networking | DSG, L2VPN |
| Management | |
| Access Ports | RS232 Serial port (RJ45) |
| Interface & Security |
* Command line interface (CLI) * Telnet & SSH * SNMPv1, v2 & v3 |
| MIBs & Data |
* Standard DOCSIS & IETF MIBs * IPDR * Casa Systems Enterprise MIBs |
| Reporting |
* Event logging through syslog * Electronic mail notification * Resource usage reporting * TACACS+ & RADIUS |
| IP Features | |
| DHCP | DHCP Relay & option 82, Multiple DHCP servers |
| Bridging / Layer 2 |
* Proxy ARP * IP subnet bundling * Multiple default routes * IGMP snooping * IGMP v2 & v3 * L2VPN VLAN tagging |
| Routing | Static IP routing, BGP, RIPv2, OSPFv2 & IS–IS, PIM–SM |
| Security | Access control list |
| GigE Interfaces | |
| Type | Dual SFP fiber/copper 1GigE |
| Wavelength | CWDM |
| Throughput | Full line-rate support |
| DOCSIS QAM Interface (Downstream) | |
| Number of ports | 1 port per system |
| Number of channels | 2–8 channels per port |
| QAM modulation | Annex A, B or C |
| QAM constellations | 64, 128 & 256 QAM |
| Data rates (DOCSIS) |
27 Mbps @ 64 QAM 38 Mbps @ 256 QAM |
| Data rates (EuroDOCSIS) |
36 Mbps @ 64 QAM 51 Mbps @ 256 QAM |
| Connector | F-type, 75 $\Omega$ |
| Frequency range (center) | 48 to 999 MHz (standard) |
| Frequency accuracy | +/- 5 ppm |
| Frequency step size | 5 kHz |
| Channel width | 6 to 8 MHz (tunable) |
| Maximum output power per channel |
61 dBmV @ 1-ch/port 57 dBmV @ 2-ch/port 53 dBmV @ 4-ch/port |
| Output step size | 0.1 dB |
| Return loss |
50 ~ 870 MHz, 14 dB 870 ~ 1002 MHz, 10 dB |
| Modulation error rate | 43 dB (equalized) |
| Wideband noise | -73 dBc |
| DOCSIS Upstream Interface | |
| Number of ports | 2 ports per system |
| Number of channels per port | 1–4 channels per port |
| Logical channels per physical channel | 2 logical per physical channel |
| Modulation | QPSK, 8, 16, 32 & 64 QAM |
| Data rate per channel | 0.32 – 30.72 Mbps |
| Input frequency range (DOCSIS) | 5 – 42 MHz (DOCSIS) |
| Input frequency range (EuroDOCSIS) | 5 – 65 MHz (EuroDOCSIS) |
| Input frequency range (J-DOCSIS) | 5 – 55 MHz (J-DOCSIS) |
| Connector | F-type, 75 $\Omega$ |
| Input range | -4 to 26 dBmV |
| Additional Features | |
| Load Balancing | Dynamic upstream & downstream load balancing |
| Spectrum | Spectrum management |
| Domains | Software-defined MAC domains |
| Licensing | Software channel licensing |
| Filtering | Ingress cancellation filtering |
| Mechanical | |
| Form Factor | 1RU |
| Height | 1.75 in. / 4.4 cm |
| Width | 8.75 in. / 22.2 cm |
| Depth | 15 in. / 38.1 cm |
| Weight | 6 lbs / 2.72 kg |
| Mounting | 19 in., 1 rack unit high |
| Front Panel LED | Power, alarm |
| Environmental | |
| Operating Temperature | 0° to 50° C |
| Storage Temperature | -40° to 70° C |
| Operating Humidity | 5% to 95%, non-cond. |
| Power Supply | 110 to 240 V (Dual external) |
| AC operating range | Power consumption < 80 W (max) |
| Regulatory Compliance | |
| Safety | UL/CSA/EN60950-1 |
| EMC | FCC Part 15, Subpart B, EN55022, EN55024 |
