C4 System Control Module 3
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204
The System Control Module (SCM) supports:
• Two maintenance ports
- One maintenance RS-232 interface which supports Baud rate
speeds of 9600, 19200, 38400, 57600, 115200
- One maintenance Ethernet interface
• One bi-directional fabric port
• A system maintenance processor
The primary software functions on the SCM include:
• Persistent store management
• System maintenance control
• Monitoring all client modules
• SNMP agent
• System wide data distribution
• Alarms monitoring and management
• Overload control
• Audit control
• Billing and measurement data
• Common Operation Administration Maintenance and Provisioning
(OAM&P) and infrastructure software functions
• Telnet processing
• SSH processing
• FTP processing
• TACACS+ processing
• PacketCable Common Open Policy Server (COPS)
• PacketCable IPSec processing
• PacketCable/VoIP Connection Management
• PacketCable Gate Control.
| Physical | |
|---|---|
| Power | -48 VDC (-44 to -72 VDC) |
| Power Consumption | 32 W nominal, 50 W maximum at -48 VDC, 77°F (25°C) |
| Power Consumption of Control Complex (SCM 3 with Router Control Module) | 150 W nominal, 170 W maximum at -48 VDC, 77°F (25°C) |
| Operating Temperature – Short Term °F (°C) | +23 to +131 ( -5 to +55 ) |
| Operating Temperature – Long Term °F (°C) | +41 to +104 ( +5 to +40 ) |
| Storage Temperature °F (°C) | -40 to +158 ( -40 to +70 ) |
| Operating Humidity (Min.-Max.) | 5 to 85% (Non condensing) |
| Dimensions (H × W × D) in. (cm) | 15.8 × 0.8 × 15.0 (40.0 × 1.9 × 38.1) |
| Processor Memory | 2 GB DDR2 RAM |
| Non-Volatile Storage Media | Compact Flash (CF) |
| Weight lbs. (kg) | approx 4 (1.8) |
| Interfaces | |
| Serial Port | RS-232 with baud rates of 9,600, 19,200, 38,400, 57,600, and 115,200 |
| Maintenance Ethernet | 10/100-BaseT port (RJ-45) on SCM Physical Interface Card (PIC) and 10/100/1000-BaseT port (RJ-45) on SCM 3 front faceplate; active port (front or rear) selectable at boot-up, defaults to rear |

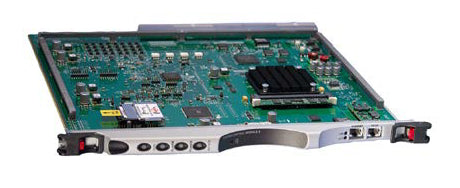

C4 SCM 3
