E6000 CER Upstream Cable Access Module
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Upstream CAM
-Flexible Mapping of Upstream Channels to RF Connectors
-Up to 12 Upstream Channels per RF Connector
-24 RF (MCX) Connectors per Physical Interface Card (PIC)
-Up to 5+1 RF Sparing
-BPI/BPI+ Support
-DOCSIS® 3.0 Multicast IP Video Support via IGMPv3 Control
IPv6 Features
-Cable modem management
-Dual-Stack CPE
-IS-IS Routing with Multi-topology support
-Cable Source Verify with DHCP Lease Query
-Route Injection (RI) for DHCPv6 Prefix Delegation
-OSPFv3
-Prefix Stability
-Distribute Lists
-TFTP Enforce / Dynamic Shared Secret
-DS and US Subscriber Management Filters
Policy-Based Routing
DOCSIS 3.0 24 Channel Bonding (Downstream)
DOCSIS 3.0 Four Channel Bonding (Upstream)
IS-IS, BGPv4
PacketCable™ Multimedia Support
Dynamic Cable Modem Load Balancing
SII Lawful Intercept (RFC 3924)
802.1Q VLAN tagging
Extended ACLs & Named ACLs
Secure Shell v2 (SSHv2)
DOCSIS Ping
DHCP Relay Agent (Option 82)
DNS Client
TFTP Enforce and Dynamic Shared Secret
BSoD L2 VPN
BPI+ Enforce
IPDR/SP
| RF Upstream | |
|---|---|
| Frequency Range (MHz) | 5 to 85 (5 to 65 with Software Release 1.0) |
| Modulation | QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM (No 8 QAM Support in Software Release 1.0) |
| Channel Type | TDMA, ATDMA, TDMA/ATDMA, SCDMA (No SCDMA Support in Software Release 1.0) |
| Data Rate (Mbps) (Max.) | 30.72 per channel |
| RF Input Level (dBmV) | -16 to +29 |
| Frequency Resolution (kHz) | < 1 |
| Symbol Rate (Ksym/sec) | 160, 320, 640, 1280, 2560, 5120 |
| Bandwidth per Channel (MHz) | 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 |
| Physical | |
| Power | -48 VDC (-40 to -72 VDC) |
| Power Consumption | 170 W nominal and TBD W max at -48 VDC, 77°F (25°C) |
| Operating Temperature (Short Term °F (°C)) | +23 to +131 (–5 to +55) |
| Operating Temperature (Long Term °F (°C)) | +41 to +104 (+5 to +40) |
| Storage Temperature °F (°C) | -40 to +158 (-40 to +70) |
| Operating Humidity (Min.–Max.) | 5 to 85% (Non condensing) |
| Dimensions (H × W × D) in. (cm) | 13.8 × 1.2 × 17.8 (35.0 × 3.0 × 45.3) |
| Weight lbs. (kg) | approx. 4.6 (2.1) |

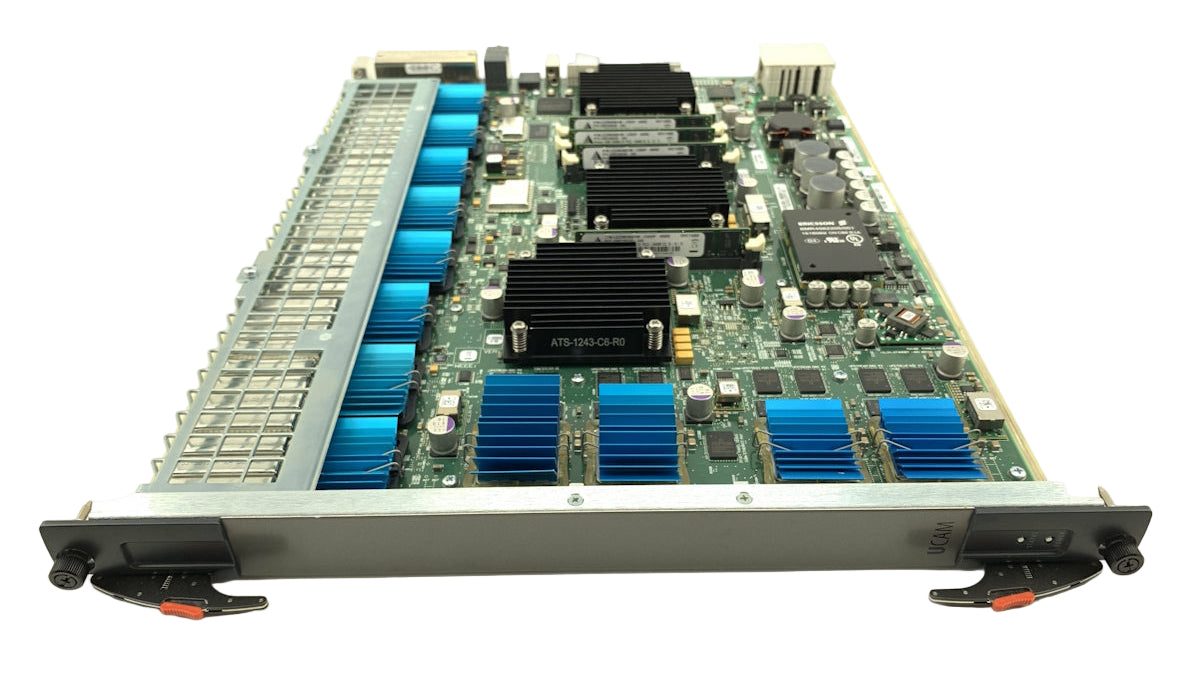

E6000 UCAM
