Echolife HG8010H, an intelligent bridging-type ONT

Huawei · HG8010H
Condition

Feature Highlights

GPON WAN Access

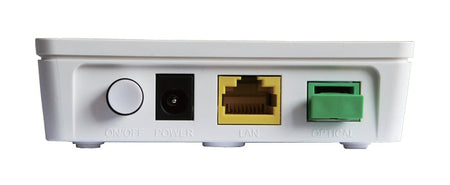

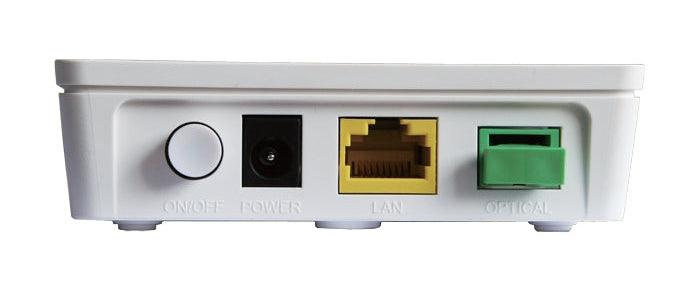

SC/APC Optical Port
1 x Gigabit Ethernet LAN
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

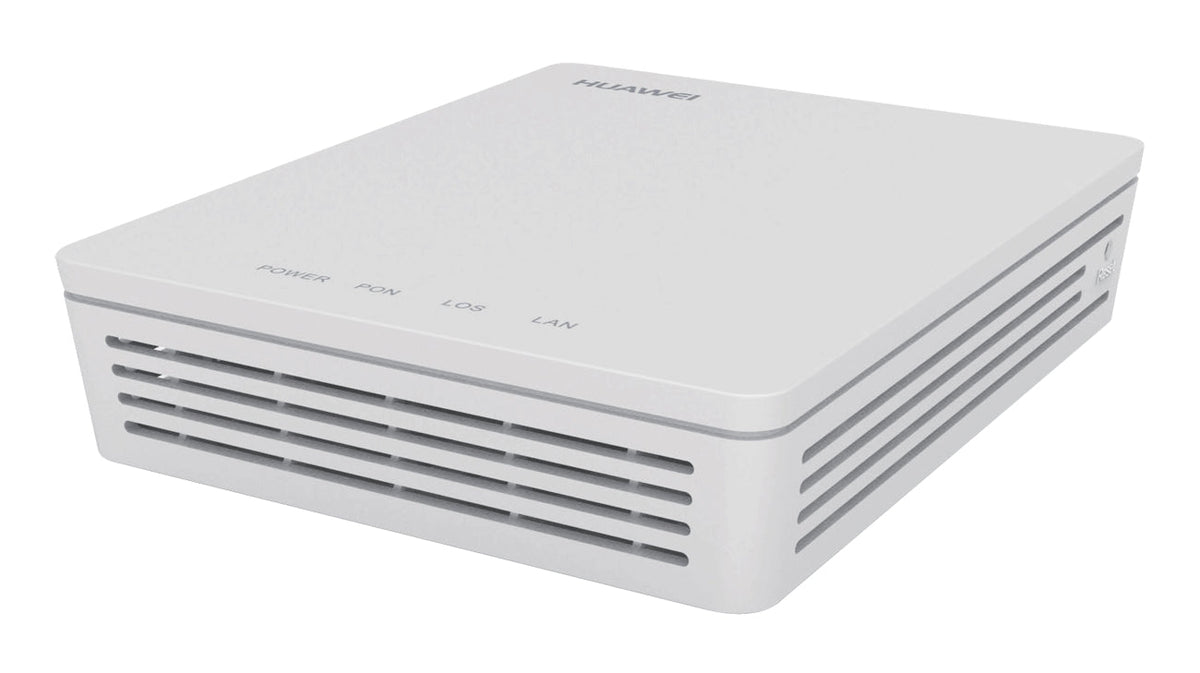

The Huawei EchoLife HG8010H is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology.

It provides 1 GE port. The high-performance forwarding capability ensures the service experience of data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

Device Parameters
Dimensions (H×W×D) (220 × 160 × 32) mm
(without an external antenna)
Weight about 1000 g
Operating temperature 0°C to +40°C
Operating humidity 5% RH to 95% RH (non-condensing)
Power adapter input 100–240V AC, 50–60 Hz
System power supply 11–13V DC, 2A
Static power consumption 7.5 W
Maximum power consumption 18 W
Ports 2 POTS + 4 GE + CATV + Wi-Fi + USB
Indicators POWER / PON / LOS / LAN / TEL / USB / WLAN / WPS / CATV
GPON Port • Class B+
• Receiver sensitivity: -27 dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• WBF
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
Ethernet Port • Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
CATV Port • Bandwidth 54–870 MHz
• Output resistance 75 ohms
POTS Port • Maximum REN: 4
• G.711 A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
USB Port • USB 2.0
• FTP-based network storage
WLAN • IEEE 802.11 b/g/n
• 2 × 2 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
Product Function
Smart interconnection features
  • Smart Wi-Fi coverage (V300R015C10)
  • SIP/H.248 auto-negotiation
  • Any port any service
  • Parental control (V300R015C00)
  • L2/L3 (IPv4) forwarding: 1G uplink, 2G downlink
Service features
  • Smart Wi-Fi sharing
  • Portal/802.1x authentication (V300R015C10)
  • SoftGRE-based sharing (V300R015C10)
  • Association of one account with two POTS ports
O&M features
  • IPTV video quality diagnosis (V300R015C10)
  • Variable-length OMCI messages
  • Active/Passive rogue ONT detection and isolation
  • Call emulation, and circuit test and loop-line test
  • PPPoE/DHCP simulation testing
  • WLAN emulation
Layer 3 functionality
  • PPPoE/Static IP/DHCP
  • NAT/NAPT
  • Port forwarding
  • ALG, UPnP
  • DDNS/DNS server/DNS client
  • IPv6/IPv4 dual stack, and DS-Lite
  • Static/Default routes
  • Multiple services on one WAN port
Multicast features
  • IGMP v2/v3 proxy (V300R015C00) / snooping
  • MLD v1/v2 snooping
  • Multicast services through Wi-Fi
Interface Parameters
GPON Port
  • Class B+
  • Receiver sensitivity: -27dBm
  • Wavelengths: US 1310nm, DS 1490nm
  • Wavelength blocking filter (WBF)
  • Flexible mapping between GEM Port and TCONT
  • GPON: consistent with the SN or password authentication defined in G.984.3
  • Bi-directional FEC
  • SR-DBA and NSR-DBA
Ethernet Port
  • Ethernet port-based VLAN tags and tag removal
  • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
  • QinQ VLAN
  • Limit on the number of learned MAC addresses
  • MAC address learning
  • Transparent transmission of IPv6 packets at Layer 2
Product Functions
Smart O&M
  • Variable-length OMCI messages
  • Active/Passive rogue ONT detection and isolation
  • PPPoE/DHCP simulation testing
QoS
  • Ethernet port rate limitation
  • 802.1p priority
  • SP/WRR/SP+WRR
  • Broadcast packet rate limitation
  • Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Power Saving
  • Indicator power saving
  • Power consumption reduction of idle components in power-saving state
  • COCv4
Security
  • MAC address filtering
Common O&M
  • OMCI/Web UI
  • Dual-system software backup and rollback
  • 802.1ag Ethernet OAM
  • Optical link measurement and diagnosis
  • Loopback check
Multicast
  • IGMP v2/v3 snooping
  • MLD v1/v2 snooping
  • Fast leave
  • VLAN tag translation, transparent transmission, and removal for downstream multicast packets
  • IGMP/MLD protocol packet rate limitation
