Echolife HG8012H, an intelligent bridging-type ONT

Huawei · HG8012H
Condition

Feature Highlights

GPON WAN Access
SC/APC Optical Port
1 x Gigabit Ethernet LAN
1 x CATV F-type RF
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

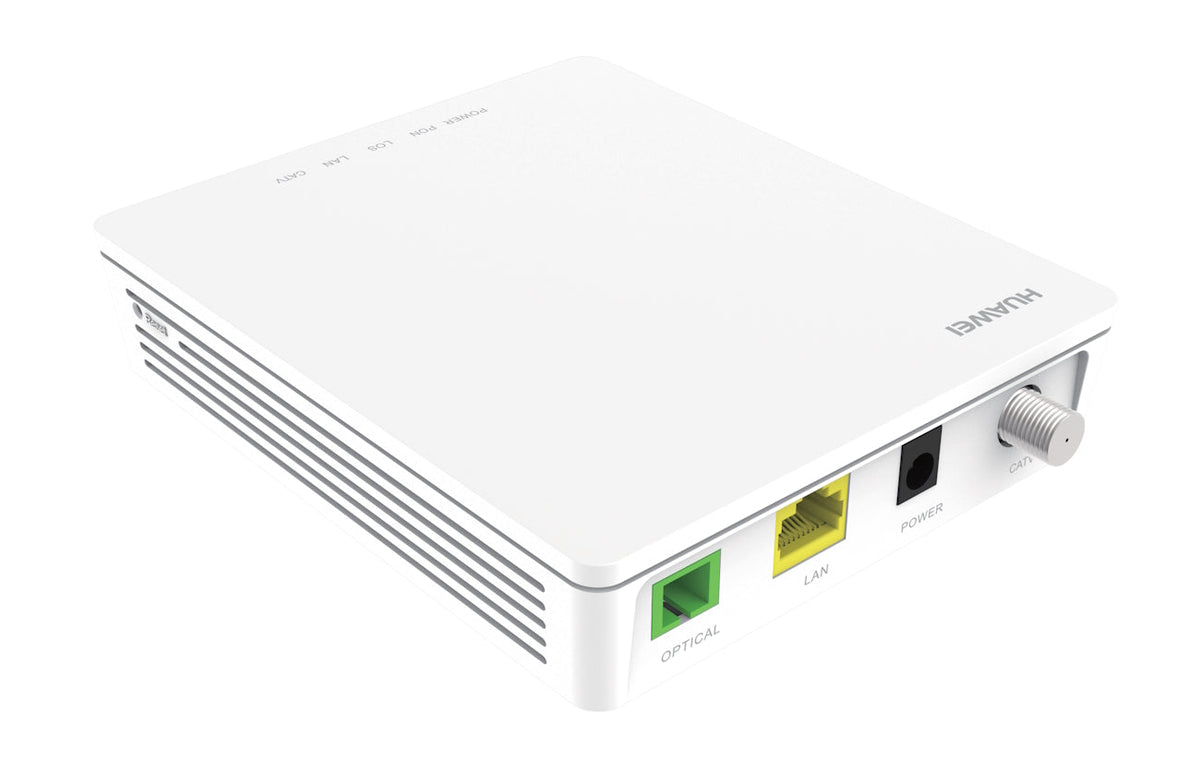

The Huawei EchoLife HG8012H is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology. It provides 1 GE port and 1 RF port. The high-performance forwarding capability ensures the service experience of CATV,data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

Device Parameters
Dimensions (H × W × D) (134 × 115 × 30) mm
Weight < 500 g
Operating temperature 0°C to +40°C
Operating humidity 5% RH to 95% RH (non-condensing)
Power adapter input 100–240 V AC, 50–60 Hz
System power supply 11–14 V DC, 1A
Static power consumption 3 W
Maximum power consumption 6 W

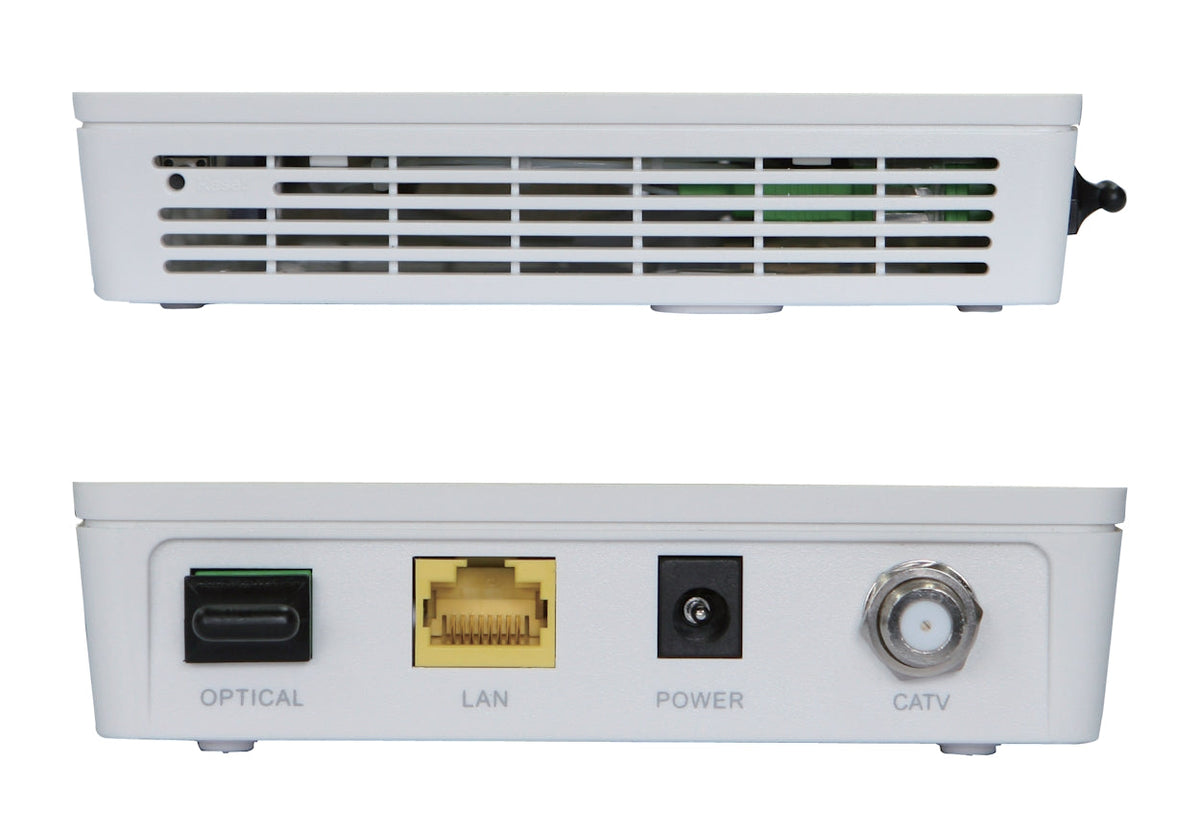

Ports 1GE + 1CATV
Indicators POWER / PON / LOS / LAN / CATV
Interface Parameters
GPON Port
  • Class B+
  • Receiver sensitivity: -27 dBm
  • Wavelengths: US 1310 nm, DS 1490 nm
  • Wavelength blocking filter (WBF)
  • Flexible mapping between GEM Port and TCONT
  • GPON: consistent with the SN or password authentication defined in G.984.3
  • Bi-directional FEC
  • SR-DBA and NSR-DBA
Ethernet Port
  • Ethernet port-based VLAN tags and tag removal
  • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
  • QinQ VLAN
  • Limit on the number of learned MAC addresses
  • MAC address learning
  • Local switching/isolation based on Ethernet ports
  • Transparent transmission of IPv6 packets at Layer 2
CATV Port
  • Bandwidth: 54–870 MHz
  • Output resistance: 75 ohms
Product Function
Smart O&M • Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• PPPoE/DHCP simulation testing
QoS • Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
• Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Power Saving • Indicator power saving
• Power consumption reduction of idle components in power-saving state
• COCV4
Security • MAC address filtering
Common O&M • OMCI/Web UI
• Dual-system software backup and rollback
• 802.1ag Ethernet OAM
• Optical link measurement and diagnosis
• Loopback check
Multicast • IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Fast leave
• VLAN tag translation, transparent transmission, and removal for downstream multicast packets
• IGMP/MLD protocol packet rate limitation
