Echolife HG8110H, an intelligent bridging-type ONT
Huawei · HG8110H
Feature Highlights
GPON WAN AccessSC/APC Optical Port
1 x Gigabit Ethernet LAN
1 x FXS Phone
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications

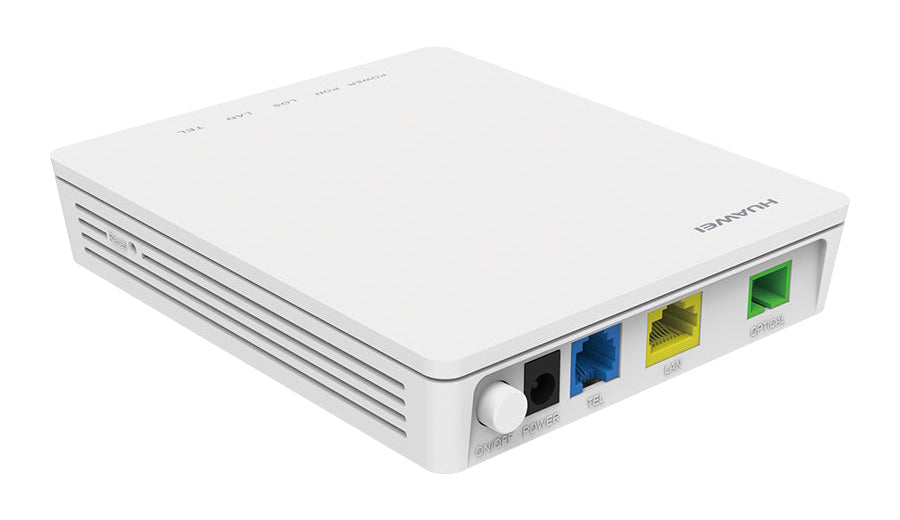

The Huawei EchoLife HG8110H is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology.
It provides 1 GE port and 1 POTS port. The high-performance forwarding capability ensures the service experience of voice, data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.
| Device Parameters | |
|---|---|
| Dimensions (H × W × D) | (134 × 115 × 27) mm |
| Weight | < 500 g |
| Operating temperature | 0°C to +40°C |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100–240 V AC, 50–60 Hz |
| System power supply | 11–14 V DC, 1 A |
| Static power consumption | 3.5 W |
| Maximum power consumption | 5.5 W |

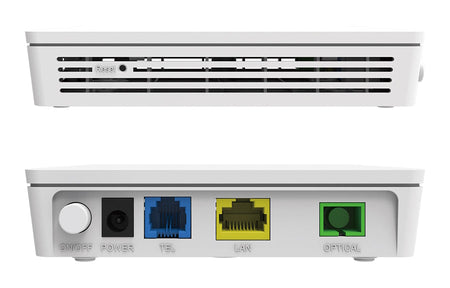

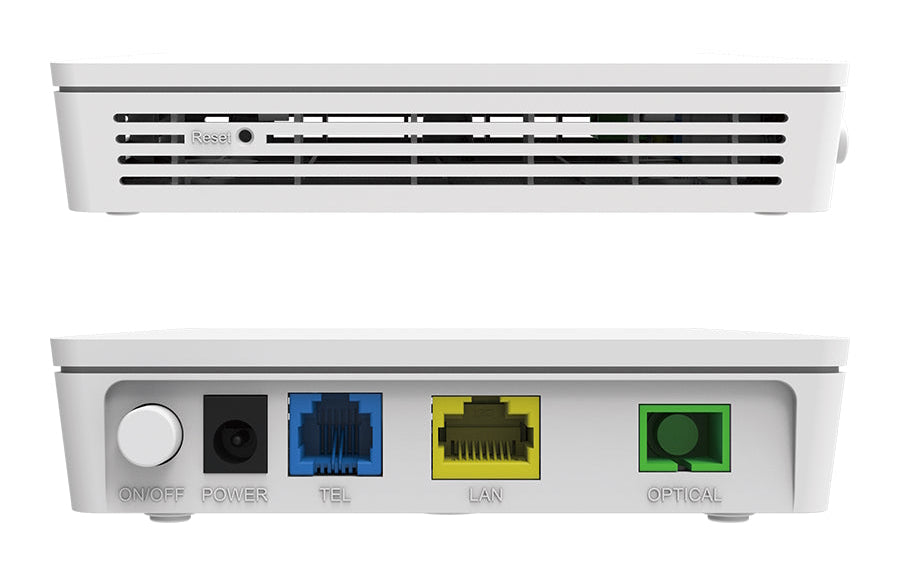

| Ports | 1GE + 1POTS |
| Indicators | POWER / PON / LOS / LAN / TEL |
| Interface Parameters | |
| GPON Port |
• Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA |
| Ethernet Port |
• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Transparent transmission of IPv6 packets at Layer 2 |
| POTS Port |
• Maximum REN: 4 • G.711 A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) |
| Product Function | |
| Smart interconnection | • SIP/H.248 auto-negotiation |
| QoS |
• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p |
| Security | • MAC address filtering |
| Power Saving |
• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCV4 |
| Smart O&M |
• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPOE/DHCP simulation testing • Call emulation, and circuit test and loop-line test |
| Multicast |
• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation |
| Common O&M |
• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check |
