Echolife HG8245H, an intelligent routing-type ONT

Huawei · HG8245H

Condition

Refurbished

Feature Highlights

GPON WAN Access
SC/APC Optical Port
Single-Band WiFi 4 (N)
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

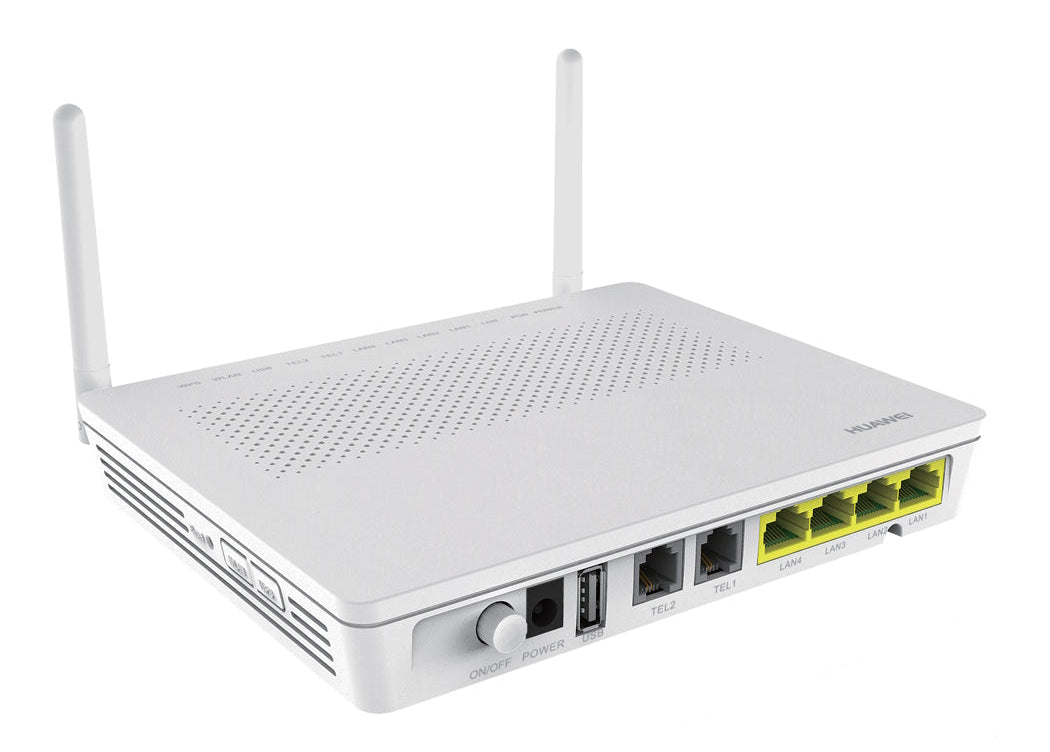

The Huawei EchoLife HG8245H is a routing-type ONT used in the Huawei all-optical access solution.It uses GPON technology to provide ultra-broadband access for users.

It provides 4 GE+2 POTS+1 USB+2.4G WiFi(4 GE Ethernet ports,2 POTS ports, 1 USB port, and 1 2.4G WiFi port). High-performance forwarding provides voice, data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

Device Parameters
Dimensions (H×W×D)	(176 × 138.5 × 28) mm (without an external antenna)
Weight	about 500 g
Operating temperature	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50–60 Hz
System power supply	11–14 V DC, 2 A
Static power consumption	5 W
Maximum power consumption	15.5 W
Ports	2 POTS + 4 GE + Wi-Fi + USB
Indicators	POWER / PON / LOS / LAN / TEL / USB / WLAN / WPS
Interface Parameters
GPON Port	• Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA
Ethernet Port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Transparent transmission of IPv6 packets at Layer 2
POTS Port	• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)
USB Port	• USB 2.0 • FTP-based network storage
WLAN	• IEEE 802.11 b/g/n • 2×2 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS
Product Function
Smart interconnection	• Smart Wi-Fi coverage (V300R015C10) • SIP/H.248 auto-negotiation • Any port any service • Parental control (V300R015C00) • L2/L3 (IPv4) forwarding: 1G uplink, 2G downlink
Smart service	• Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) • SoftGRE-based sharing (V300R015C10) • Association of one account with two POTS ports
Smart O&M	• IPTV video quality diagnosis (V300R015C10) • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • Call emulation, and circuit test and loop-line test • PPPoE/DHCP simulation testing • WLAN emulation
Layer 3 Features	• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port
Multicast	• IGMP v2/v3 proxy (V300R015C00) / snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation
QoS	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation
Security	• SPI firewall • Filtering based on MAC/IP/URL addresses
Common O&M	• OMCI/Web UI/TR069 • Dual-system software backup and rollback
Power Saving	• Dynamic power saving • Indicator power saving • Scheduled Wi-Fi shutdown (V300R015C00)
