Echolife HG8247H, an intelligent routing-type ONT

Huawei · HG8247H

Condition

Refurbished

Feature Highlights

GPON WAN Access
SC/APC Optical Port
Single-Band WiFi 4 (N)
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
1 x CATV F-type RF

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

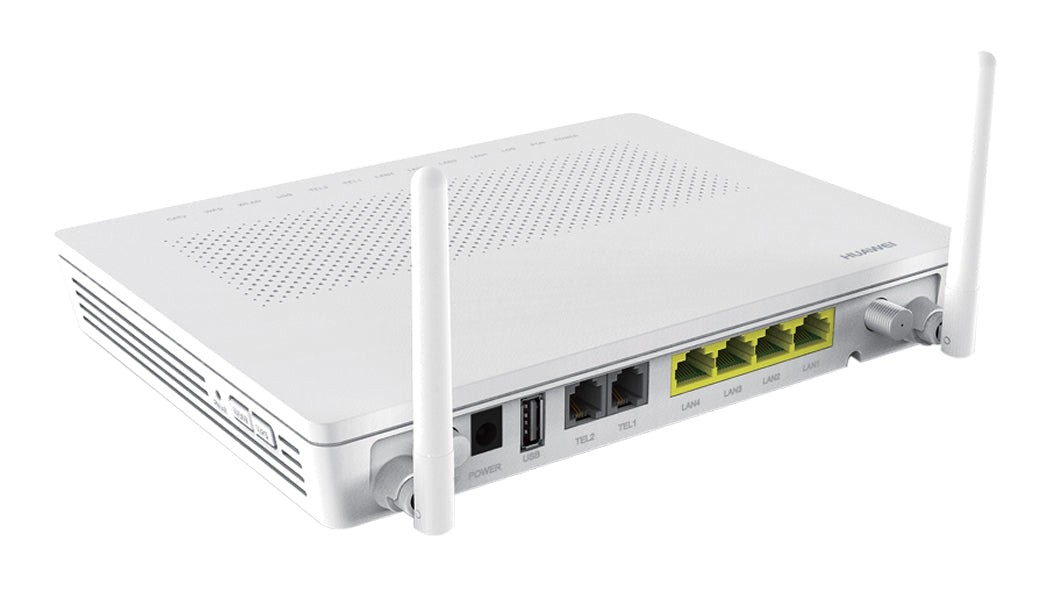

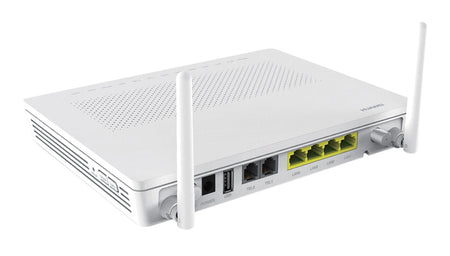

The Huawei EchoLife HG8247H is an routing-type ONT used in the Huawei all-optical access solution.It uses GPON technology to provide ultra-broadband access for users.

It provides 4 GE+2 POTS+1 USB+1 RF+2.4G WiFi(4 GE Ethernet ports,2 POTS ports, 1 USB port, 1 RF port and 1 2.4G WiFi port). High-performance forwarding provides voice, data, CATV and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

Dimensions (H×W×D)	(220 × 160 × 32) mm (without an external antenna)
Weight	about 1000 g
Operating temperature	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240V AC, 50–60 Hz
System power supply	11–13V DC, 2A
Static power consumption	7.5 W
Maximum power consumption	18 W
Ports	2 POTS + 4 GE + CATV + Wi-Fi + USB
Indicators	POWER / PON / LOS / LAN / TEL / USB / WLAN / WPS / CATV
GPON Port	• Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA
Ethernet Port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning
CATV Port	• Bandwidth 54–870 MHz • Output resistance 75 ohms
POTS Port	• Maximum REN: 4 • G.711 A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)
USB Port	• USB 2.0 • FTP-based network storage
WLAN	• IEEE 802.11 b/g/n • 2 × 2 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS

Product Function
Smart interconnection features	Smart Wi-Fi coverage (V300R015C10) SIP/H.248 auto-negotiation Any port any service Parental control (V300R015C00) L2/L3 (IPv4) forwarding: 1G uplink, 2G downlink
Service features	Smart Wi-Fi sharing Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) Association of one account with two POTS ports
O&M features	IPTV video quality diagnosis (V300R015C10) Variable-length OMCI messages Active/Passive rogue ONT detection and isolation Call emulation, and circuit test and loop-line test PPPoE/DHCP simulation testing WLAN emulation
Layer 3 functionality	PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP DDNS/DNS server/DNS client IPv6/IPv4 dual stack, and DS-Lite Static/Default routes Multiple services on one WAN port
Multicast features	IGMP v2/v3 proxy (V300R015C00) / snooping MLD v1/v2 snooping Multicast services through Wi-Fi
