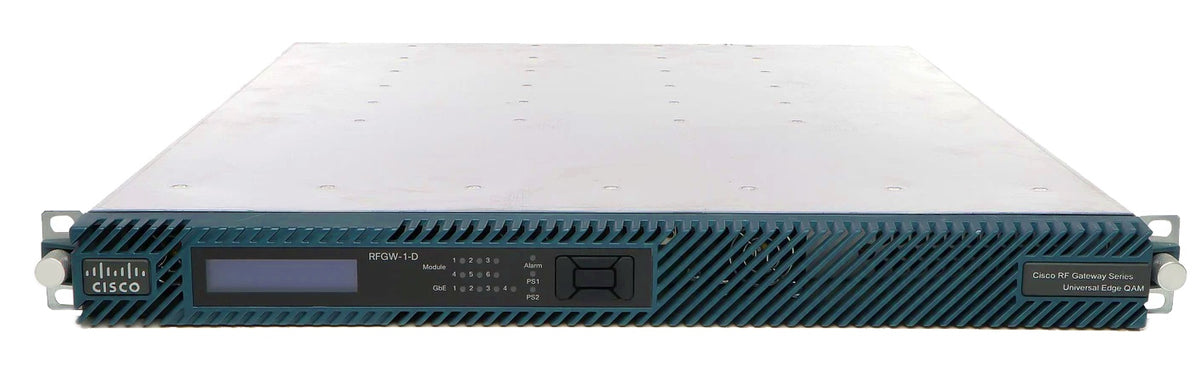

RF Gateway 1 Chassis
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The Cisco RF Gateway 1 provides up to 96 U-EQAM channels (for SDV, Broadcast, VoD, and DOCSIS 3.0/MCMTS) in a compact 1 RU chassis. The modular design supports 16 QAM channels per module, with eight QAM channels per RF output port and frequency agility up to 1 GHz.
Primary features include:
● True U-EQAM video (broadcast, SDV, SD/HD, MPEG-2, AVC) and high speed data
● (M-CMTS/DTI, DOCSIS 3.0) in 1 RU form factor
● Manual or DEPI Control Plane modes supported
● Table-based or session-based video functionality
● Optional on-board Encryption: DVB® SimulCrypt and PowerKEY® SKS
● Utilizes Direct Digital Synthesis (DDS) QAM technology which allows superior RF performance and stability
● 96 configurable QAM channels; each of which is fully agile 45–1000 MHz
● RF performance typically meets or exceeds CableLabs® DRFI specification CM-SP-DRFI
● Modular, hot-swappable, and Auto-configurable QAM cards
● Support for up to 2048 streams in 1 RU
● Fully redundant design with redundant Gigabit Ethernet ports and power supplies (AC/AC, AC/DC, or DC/DC)
● Front-to-back airflow to allow self-cooling and stacking
● Compliance with ITU-T J.83 standard, Annex A (DVB), Annex B (ATSC), or Annex C (Japan)
● Internet Group Management Protocol Version 3 (IGMPv3) support
● Low power consumption per QAM
● Four or eight QAM channels per RF port available - independent of channel bandwidth (6, 7, and 8 MHz)
● Fully SNMP compliant
| Gigabit Ethernet Input Interface | |
|---|---|
| Number of inputs | 2+2 (for redundancy) or 4 Independent |
| Connector | Optical/electrical Small Form Factor Pluggable (SFP) |
| Interface type | Gigabit Ethernet according to IEEE 802.3ab (Electrical) or IEEE 802.3z (Optical) |
| Input Data rate | Full line rate |
| Syntax | VBR and CBR MPEG SPTS and MPTS on UDP (RFC-768), RTP, L2TPv3, IGMPv3 |
| Dejitter Buffering | 500 ms (configurable from 5ms - 400ms) |
| RF Outputs | |
| Number of outputs | Maximum 12 physical RF ports (each with 4 QAM channels) |
| Connector | F-type, 75 Ω |
| Range | |
| Frequency | Channel edges between 45 and 1002 MHz (tunable) |
| Step Size | 1 kHz |
| Stability | ± 3 ppm |
| Accuracy | ± 3 ppm |
| Channel Bandwidth | 6, 7, or 8 MHz depending on QAM transmission standard |
| Level | 52 dBmV RMS Max per QAM Channel in 0.1 dB steps |
| 8-Channel Mode | 54 dBmV RMS Max per QAM Channel in 0.1 dB steps |
| 4-Channel Mode | 56 dBmV RMS Max per QAM Channel in 0.1 dB steps |
| 3-Channel Mode | 58 dBmV RMS Max per QAM Channel in 0.1 dB steps |
| 2-Channel Mode | 60 dBmV RMS Max per QAM Channel in 0.1 dB steps |
| 1-Channel Mode | 62 dBmV RMS Max per QAM Channel in 0.1 dB steps |
| Stability | ± 1 dB |
| Accuracy | ± 1 dB |
| Return loss | >14 dB 45-750 MHz |
| >13 dB 750-870 MHz | |
| >12 dB 870-1000 MHz | |
| Per DOCSIS 3.0 DRFI specification CM-SP-DRFI | |
| Management Interface | |
| Interface type | Ethernet 10/100 BASE-T |
| Connector | RJ-45 |
| Protocols | HTTP, SNMP, FTP, RPC |
| Other Interfaces | |
| DTI | 2 RJ-45 Primary and Redundant |
| Conditional Access | Ethernet 10/100 BASE-T |
| Signal Specifications | |
| Channel encoding | Randomization, Reed-Solomon, Trellis Encoding, and Interleaving configurable to ITU Annex A, B, or C |
| MER (before equalizer) | ≥ 40 dB (at RF) |
| MER (after equalizer) | ≥ 45 dB (at RF) |
| QAM constellations | 64 and 256 QAM |
| Environmental Specifications | |
| Operating temperature | 32 to 122°F (0 to 50°C) |
| Storage temperature | -30 to 158°F (-22 to 70°C) |
| Altitude | -200 to 10,000 feet AMSL |
| Operating humidity | 5% to 95%, non-condensing |
| Power supply (nominal) | 100 to 240 VAC or -48 VDC |
| Normal service voltage range | 90 to 264 VAC or -38 to -58 VDC |
| Power consumption (fully loaded) | 48 QAM Typical 345W 96QAM Typical x 360W |
| Chassis Mechanical Specifications | |
| Height | 1.75 in. (44.45 mm) (1 RU) |
| Width | 19 in. (482.6 mm) |
| Depth | 21.0 in. (533.4 mm) |
| Weight | 27.5 lbs (12.5 kg) |
CHAS-RFGW-1
