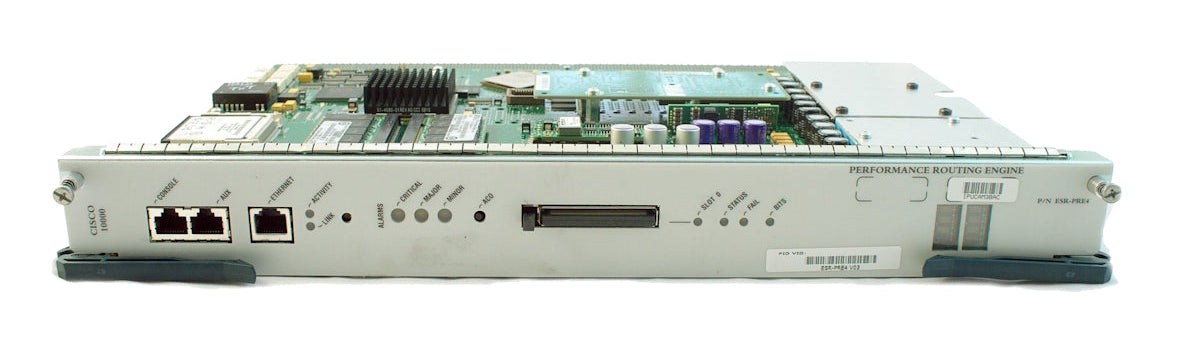

10000 Series Performance Routing Engine 4
Cisco · ESR-PRE4
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
The Cisco 10000 Series Performance Routing Engine 4 (PRE4) addresses the demand for increased performance, scalability, and hierarchical quality of service (HQoS) to support diverse network-edge requirements for residential and business services markets.
| Software and Performance | |
|---|---|
| Software Compatibility | Compatible with Cisco IOS® Software Release 12.2(33)SB and later Release 12.2 images supported on the Cisco 10000 Series |
| Features and Functions |
Supports up to 61,500 broadband subscribers Hierarchical Queuing Framework (HQF) provides up to 3 levels of QoS or shaping per packet 10 mpps forwarding performance through the PXF complex |
| Performance |
PXF forwarding performance: 10 million packets per second RP forwarding performance: 400,000 packets per second |
| Reliability and Availability |
Supports Online Insertion and Removal (OIR) Supports Nonstop Forwarding (NSF) and Stateful Switchover (SSO) Supports In-Service Software Upgrades (ISSUs) |
| Memory | |
| Route processor memory | 4 GB ECC protected DRAM |
| Onboard memory | 128 MB Compact Flash, 14 MB NVRAM (7 MB primary and 7 MB backup) |
| Removable memory | 512 MB or 1 GB Compact Flash |
| Packet memory | 512 MB ECC protected |
| Connectivity, Management, and Power | |
| Connectivity and Controls |
10/100 Ethernet port network management interface with RJ-45 connector Console serial port Auxiliary (modem) port Push button reset |
| Network Management |
Network management through: Telnet (command-line interface [CLI]) Console port (through the CLI) Simple Network Management Protocol (SNMP) RFC 2665 |
| Power | 210W |
| LED Indicators | |
| Alarms (Critical/Major/Minor) | ON indicates an alarm condition OFF indicates no alarm |
| Fail (yellow) |
ON indicates that a major failure has disabled the Cisco PRE4 OFF indicates that the Cisco PRE3 is operating properly |
| Status (bicolor) |
Flashing yellow indicates that the system is booting Green indicates that Cisco PRE4 is active (as a primary) Flashing green indicates that Cisco PRE4 is standby (as a secondary) OFF indicates no power to Cisco PRE4 |
| Ethernet activity/link (green) |
Activity: Green indicates packets are being transmitted and received Link: Green indicates carrier detected; the port is able to accept traffic |
| CF card slot 0 (green) | ON indicates slot 0 is active |
| BITS |
Green indicates T1/E1 BITS input is configured and working properly Yellow indicates T1/E1 BITS input is configured and has errors Off indicates T1/E1 BITS input is not configured |
| Physical and Environmental | |
| Physical Dimensions (H x W x D) | 16.0 x 1.91 x 9.97 in. (40.64 x 4.84 x 25.32 cm) |
| Weight | 9.0 lb (4.09 kg) |
| Storage temperature | -38 to 150°F (-40 to 70°C) |
| Operating temperature (nominal) | 41 to 104°F (5 to 40°C) |
| Operating temperature (short term) | 23 to 131°F (-5 to 55°C) |
| Storage relative humidity | 5 to 95 percent relative humidity (RH) |
| Operating humidity (nominal) | 5 to 85 percent RH |
| Operating humidity (short term) | 5 to 90 percent RH |
| Operating altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
All technical data, specifications and descriptions published on this website are provided for general information purposes only. We make reasonable efforts to ensure that the information is accurate and up to date; however, no guarantee, warranty or representation (express or implied) is given that any information is complete, correct, current or error-free. Images are for illustration purposes only, actual product may not include all parts visible.
