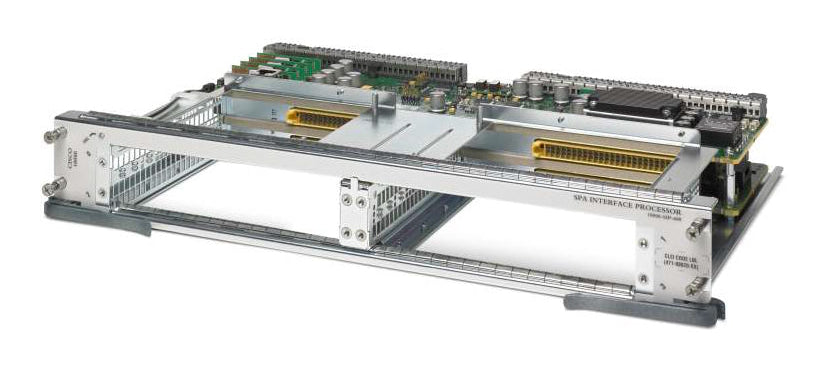

10000 Series SPA Interface Processor-600
Cisco · 10000-SIP-600
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
The Cisco 10000 Series SIP-600 supports four single-height or two double-height SPAs using two adjacent line-card slots of the Cisco 10000 Series Router. Using application specific integrated circuits (ASICs) and the flexibility to bond together point-to-point links, the SIP provides up to 11.2 Gbps of bandwidth and support for 10 Gigabit Ethernet interface at line-rate.
| Feature / Description | Specification / Benefit |
|---|---|
| Performance Routing Engine compatibility | Supported with ESR-PRE4 at 11.2 Gbps or ESR-PRE3 at reduced total bandwidth of 5.6 Gbps. No SIP support with PRE1 or PRE2. |
| Minimum software | Cisco IOS® Software Release 12.2(33)SB and later releases |
| Slot configuration | Four single-height SPAs, two double-height SPAs, or combination |
| Supported SPAs |
Ethernet SPA-1X10GE-L-V2 Cisco 1-Port 10 GE SPA (XFP IEEE LAN PHY optics) SPA-5X1GE-V2 Cisco 5-Port GE SPA (SFP optics) SPA-2X1GE-V2 Cisco 2-Port GE SPA (SFP optics or built-in RJ-45 ports) |
| Indicators |
Single LED indicating whether the SIP card has failed. FAIL indicator: Off (operational); On for more than 5 seconds (faulty) Note that SPAs include all interface status LEDs. |
| Physical |
Occupies 2 line card slots and can be operated only in Cisco 10000 Series Router. Weight: 6.3 lb (2.9 kg) (without SPAs) Height: 2.4 in. (6.1 cm) Width: 14.6 in. (37.1 cm) Depth: 9.5 in. (24.1 cm) |
| Increased port density, bandwidth, and SPA support | Supports 4 single-height SPAs, 2 double-height SPAs, or a combination to increase port density per chassis. Link bonding enables greater bandwidth and new connectivity options such as a modular 10GE SPA. |
| Modularity | Provides support for up to 4 SIPs or a combination of SIPs plus older Cisco 10000 Series line cards installed in the same chassis. |
| Investment protection | Same carrier card is used for various SPA types supported on the Cisco 10000 Series Router. In addition, SPA interfaces can be shared across multiple platforms. |
| Online Insertion and Removal (OIR) | Provides hitless OIR to minimize impact of add, change, and remove operations. Individual SPAs can be removed without impacting traffic on other SPA interfaces. |
| Link protection and link bundling |
Ethernet – 802.3ad, Cisco EtherChannel® technology SONET – Automatic Protection Switching (APS) |
| Managed oversubscription | Hierarchical QoS provided on PRE3 and PRE4 allows oversubscription of interfaces with predictable performance. SIP memory includes 128MB buffering to support ingress bursts of 20 Gbps for 50 ms. |
| Building Integrated Timing Supply (BITS) | Supports BITS-enabled SPAs. |
