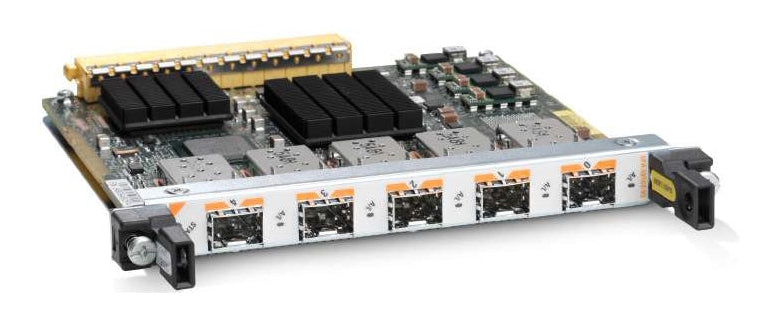

5-Port Gigabit Ethernet Shared Port Adapter, Version 2
Cisco · SPA-5X1GE-V2
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
The Cisco Interface Flexibility (I-Flex) design combines shared port adapters (SPAs) and SPA interface processors (SIPs), taking advantage of an extensible design that helps enable service prioritization for voice, video, and data services. Enterprise and service provider customers can take advantage of improved slot economics resulting from modular port adapters that are interchangeable across Cisco routing platforms.
| Features and Functions | |
|---|---|
| Features and functions |
Autonegotiation Full-duplex operation 802.1Q VLAN termination 802.1ad QinQ termination (stacked VLAN processing) Jumbo Frames support (9188 bytes) Support for command-line interface (CLI)-controlled online insertion and removal (OIR) 802.3x flow control Bridge protocol data unit (BPDU), Cisco Discovery Protocol, and VLAN Trunking Protocol (VTP) filtering Layer 2 Protocol (BPDU, Cisco Discovery Protocol, and VTP) Tunneling Layer 2 access list (MAC address-based filtering) Up to 8000 VLANs per SPA and subject to a limit of 4000 VLANs per port for 802.1q Up to 5000 MAC accounting entries per SPA (source MAC accounting on the ingress, and destination MAC accounting on the egress) Up to 2000 MAC address entries for destination MAC address filtering per SPA, and up to 1000 MAC address filtering entries per port Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets Per-VLAN byte and packet counters for policy drops; oversubscription drops; and unicast, multicast, and broadcast packets Per-port byte counters for good bytes and dropped bytes |
| Physical Interfaces | |
| Physical interfaces |
Short wavelength (SX) Long reach/long haul (LX/LH) Extended distance (ZX) SFP SFP-GE-T (5-, 8-, and 10-port Gigabit Ethernet SPAs) Built-in RJ-45 (2-port Gigabit Ethernet SPA) |
| Physical Specifications | |
| Physical specifications (5-port Gigabit Ethernet SPAs) |
Weight: 0.75 lb (0.34 kg) Height: 0.8 in. (2.03 cm) (single height) Width: 6.75 in. (17.15 cm) Depth: 7.28 in. (18.49 cm) |
| Environmental Specifications | |
| Environmental specifications |
Storage temperature: -38 to 150°F (-40 to 70°C) Operating temperature, nominal: 32 to 104°F (0 to 40°C) Operating temperature, short term: 32 to 131°F (0 to 55°C) Storage relative humidity: 5 to 95% relative humidity Operating humidity, nominal: 5 to 85% relative humidity Operating humidity, short term: 5 to 90% relative humidity Operating altitude: -60 to 4000m |
