7200 Series Network Processing Engine NPE-G2
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204
With the introduction of the uBR7200-NPE-G2 Network Processing Engine, service providers can now take advantage of the enhanced performance and scalability of the uBR7246VXR Universal Broadband Router to maximize service and revenue generation. At 1.3 Mpps, the performance of the uBR7200-NPE-G2 is double that of the uBR7200- NPE-G1. This enhancement enables service providers to offer higher speed data services and also to increase the number of VoIP sessions that each uBR7246VXR can support. The uBR7200-NPE-G2 is the newest and most powerful engine on the uBR7246VXR. Some highlights of this board include:
● Increased processing capacity to meet the growing performance demand and extreme flexibility to introduce new services
● Investment protection for existing uBR7246VXR customers through incremental processor upgrades
● Sufficient spare processing power enabling future compatibility with uBR7200VXR next generation cable linecards and advanced software features
● Ability to measure digital diagnostics data from the Small Form-Factor Pluggable interfaces, providing customers with enhanced troubleshooting capability
| Hardware and Software Features | |
|---|---|
| Processor | 1.67-GHz Motorola Freescale 7448 processor 512 KB NVRAM, 16 MB Bootflash (Note: This size NVRAM and Bootflash are only available when a Cisco I/O controller is not used) |
| Cache Size | 1-MB Layer 2 cache |
| SDRAM Memory Size | 1 GB SDRAM default memory (expandable to 2 GB) |
| Flash Memory Size | 256 MB of Compact Flash memory |
| On Board Software | Error Correcting Code (ECC) support |
| Physical and Environmental Specifications | |
| Physical Weight | 3.25 lb. (1.49 kg) |
| Physical Dimensions | 15.15 x 11.12 x 1.40 in. (38.481 x 28.245 x 3.556 cm) |
| Environmental Storage temperature | -38° to 150° F (-40° to 70° C) |
| Environmental Operating temperature, nominal | 41° to 104° F (5° to 40° C) |
| Environmental Operating temperature, short term | 23° to 131° F (-5° to 55° C) |
| Environmental Storage relative humidity | 5% to 95% relative humidity (RH) |
| Environmental Operating humidity, nominal | 5% to 85% RH |
| Environmental Operating humidity, short term | 5% to 90% RH |
| Environmental Operating altitude | -60 m to 2000m |

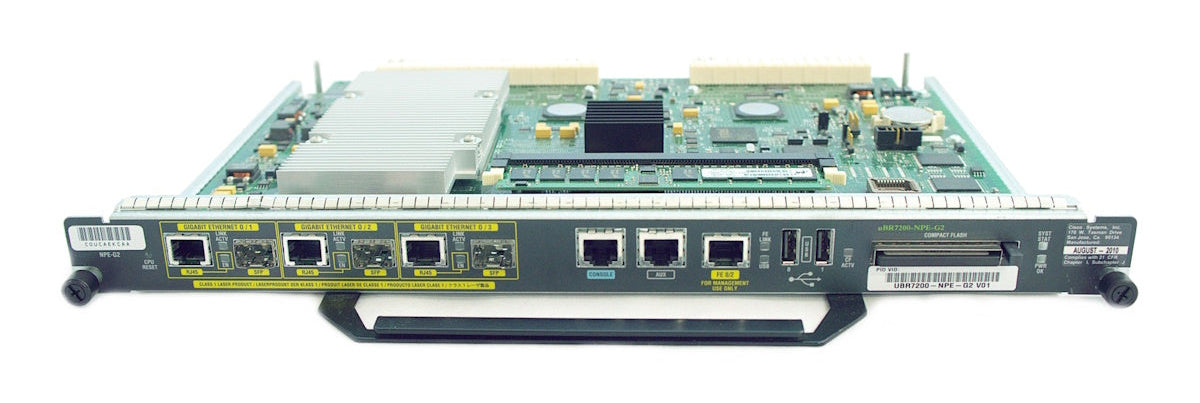

NPE-G2
