Broadband Services Router 64000 Chassis
Motorola · BSR 64000 CHAS
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications

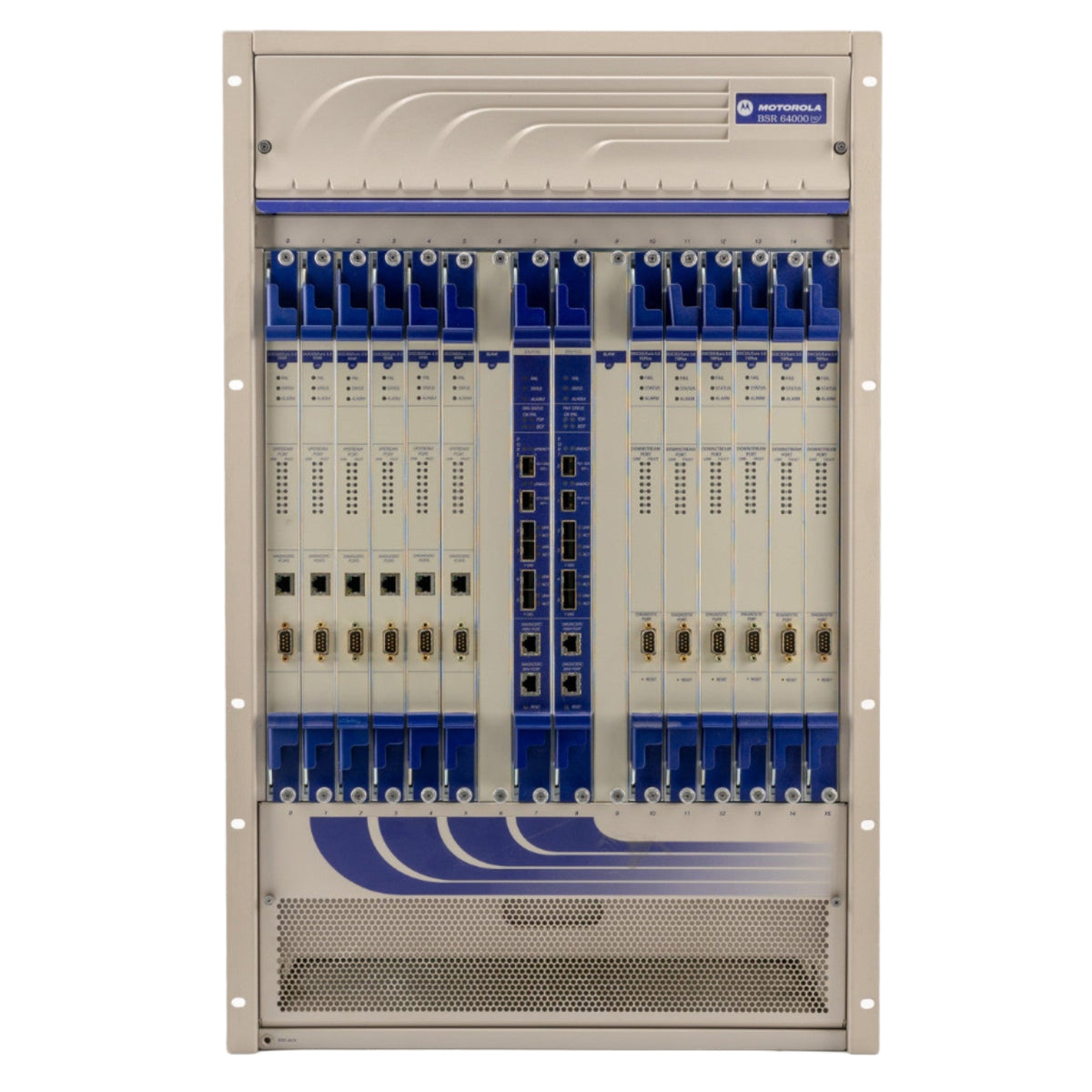

Motorola’s BSR 64000 is a fully redundant, carrier-class intelligent CMTS/edge router supporting (Euro)DOCSIS® 3.0 for next-generation Ultra-Broadband cable services. The BSR 64000 allows cable operators to cost-effectively and efficiently deploy Ultra-Broadband services with per-flow Quality of Service by implementing downstream channel bonding on existing BSR 64000 platforms.
| Physical Specifications | |
|---|---|
| Form | 16-slot, 17 RU, NEBS-compliant chassis |
| Dimensions | 29.75 in H x 19 in W x 19.75 in D (75.56 cm x 48.26 cm x 50.17 cm) |
| Fully configured weight | 140 lbs (63.5 kgs) |
| Power Specifications | |
| Input power | -48 VDC |
| Optional | Tyco NP1200 AC to DC Carrier-Class Power Converter |
| Environmental Specifications | |
| Operating temperature | 0° C (32° F) to +40° C (104° F) |
| Storage temperature | -20° C (-4° F) to +60° C (140° F) |
| Operating humidity | 10% - 90% non condensing |
| Storage humidity | 5% - 95% non condensing |
