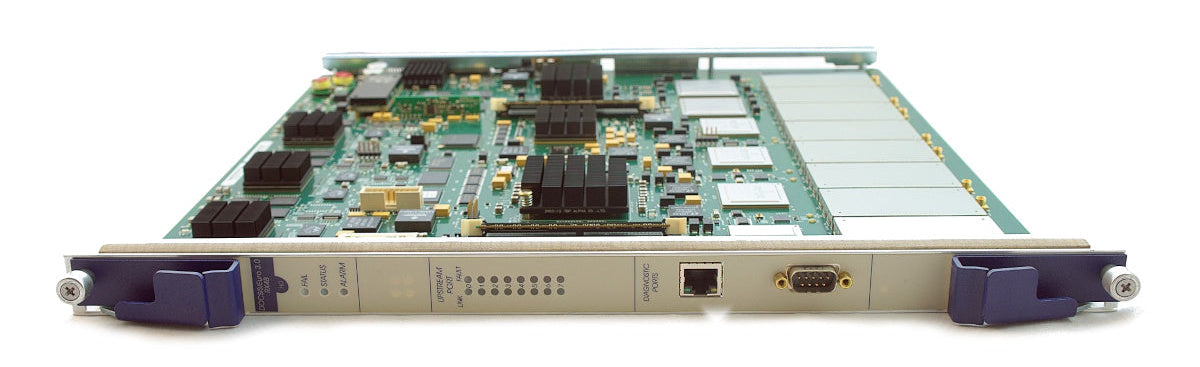

BSR 64000 Decoupled Upstream Module RX48
Motorola Β· BSR 64000 RX48
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / πͺπΊ +36 62 808 073 / πΊπΈ +1 (561) 408-7204
Description
Technical Specifications
The RX48 introduces advances in RF technology that will allow full DOCSIS 3.0 capability and much greater upstream spectrum utilization. It enables flexible scaling of upstream capacity to achieve subscriber speeds of 100Mbps or beyond for Ultra-Broadband services. The Motorola RX48, combined with the TX32 Decoupled Downstream Module, provides industry leading density in a fully protected Integrated CMTS.
| FLEXIBLE CONFIGURATIONS | |
|---|---|
| BSR 64000 I-CMTS Chassis Configuration with the TX32 and RX48 Decoupled DOCSIS 3.0 modules, SRM controller module, and Ether-Flex High-Speed Interface modules | |
| Deployable with 2:8 DOCSIS/EuroDOCSIS modules operating with unique MAC Domains | |
| FEATURES | |
| High-performance Dual-Core PPC Processor and Packet Processing Engines | |
| Advanced DOCSIS 3.0 Upstream MAC and Upstream Burst Receiver Chipset | |
| 4 GB High-speed DDR2 Memory | |
| 48 Upstream QAM receivers | |
| 8 Upstream RF Ports | |
| Maximum of 6 upstream QAM receivers per RF port | |
| Field-Upgradable Firmware | |
| STANDARDS-BASED INTEROPERABILITY | |
| Compliant with DOCSIS 3.0, 2.0, and 1.x | |
| Compatible with DOCSIS, J-DOCSIS, and EuroDOCSIS specifications | |
| RF | |
| Upstream RF frequency range | 5 to 85 MHz |
| Upstream modulation | 4 (QPSK), 8, 16, 32, and 64 QAM |
| RF Receive Input Level Range | -7 to +23 dBmV per DOCSIS 3.0 PHY Specification |
| Input load impedance: | 75 Ξ© |
| PHYSICAL | |
| Occupies | a single slot in the BSR 64000 chassis |
| Hot-swappable | |
| RF Interfaces | Eight 'F' type connectors on rear I/O module |
| Diagnostic Ports | DB-9 and RJ-45 (1000BASE-T Only) |
| Module LEDs | Fail, Status, and Alarm |
| Upstream Port LEDs | Link and Fault |
| Dimensions (H x W x D) | 15.0 x 15.0 x 1.0 inches (38.1 x 38.1 x 2.54 cm) |
| Weight | 4.1 lbs |
