BSR 64000 Supervisory Resource Module 10G

Motorola · BSR 64000 SRM10G
Condition
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

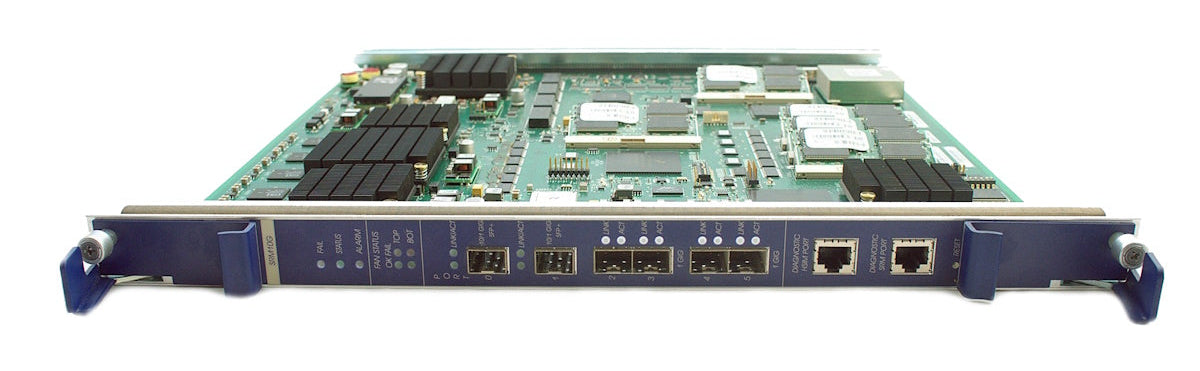

The SRM 10G is a combined Supervisory Resource Module and Network Interface Module for the BSR 64000 CMTS/edge router. Integrating control, switching, route processing, and forwarding in a single module, the SRM10G can forward up to 20 Gbps. Like the entire BSR 64000 product line, the SRM10G supports full, hot-swappable redundancy and industry-leading processing power, efficiency, and performance.

ROUTING, MULTICAST, AND TRAFFIC MANAGEMENT
Supported Protocols IPv4 and IPv6; OSPF v2/v3; BGP v4; MPLS; BGP/MPLS-VPNs; RIP v1/v2; IS-IS v4/v6/MT; VRRP; PIM-SM, PIM-SSM, IGMP v1/v2/v3
Static Routes
Policy-Based Routing
DHCP Relay
Marking, policing, and shaping traffic management
Two-level class-based scheduling
SmartFlow per-flow queuing
Longest Queue Pushout (LQP) congestion management
IPSec tunnels, MD5 authentication, BPI+
Hardware-based forwarding and flow classification
Hardware-based wire-speed QoS, routing policy support
PACKETIZED VOICE SERVICE
Dynamic QoS, COPS, IPSec, cable intercept, lawful intercept
LOGGING AND MONITORING
Syslog, traceroute, ping (IPv4 and IPv6), SNMP v1, v2, v3, IPDR D2.0/D3.0
SYSTEM MANAGEMENT
Out-of-Band Industry-compatible CLI via RJ45 Console Port
In-Band Industry-compatible CLI, Telnet, SSH, TACACS/TACACS+, and RADIUS; SNMP v1, v2, v3; 10/100 Ethernet port
MEMORY
On-board NVRAM 512 MB
SOFTWARE
Minimum Software Revision BSR 64000 Software Release 7.0
ENVIRONMENTAL
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
