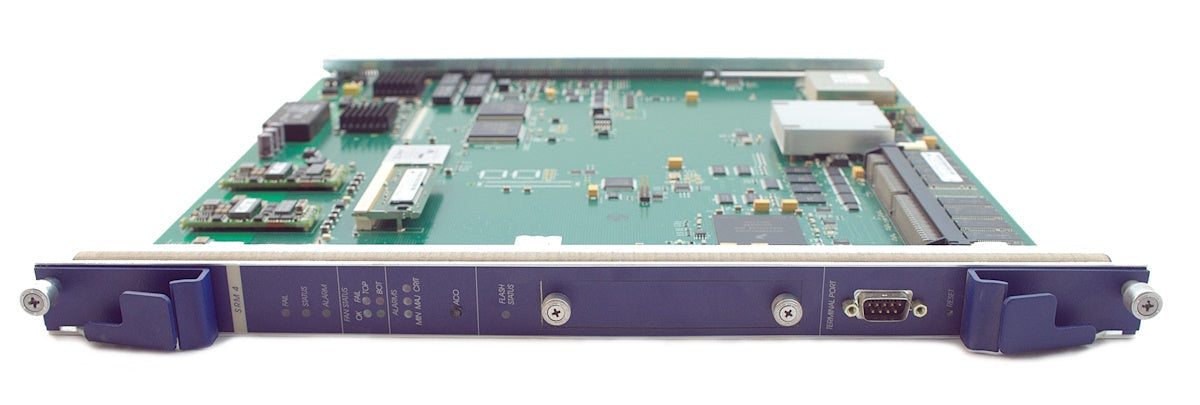

BSR 64000 Supervisory Resource Module 4
Motorola · BSR 64000 SRM4
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
The Supervisory Resource Module Release 4 (SRM4) is an integrated control, switching, and route processing module for the carrier-class BSR 64000 CMTS/edge router. The SRM4 provides the high performance, advanced routing, and scalability needed for cable operators to deploy new high-speed Internet, voice, and video service packages to mid- and high-tier customers.
| ROUTING, MULTICAST, AND TRAFFIC MANAGEMENT | |
|---|---|
| IPv4 and IPv6; OSPF v2; BGP v4; MPLS; BGP/MPLS-VPNs; RIP v1 and v2; IS-IS; VRRP; IGMP v1, v 2, and v3; PIM-SM, PIM-SSM | |
| Static routes | |
| DHCP Relay | |
| Marking, policing, and shaping traffic management | |
| Two-level class-based scheduling | |
| SmartFlow, per-flow queuing | |
| Longest Queue Drop-out (LQD) congestion management | |
| IPSec tunnels, MD5 authentication, BPI+ | |
| Hardware-based forwarding and flow classification, hardware-based wire-speed QoS, routing policy support | |
| PACKETIZED VOICE SERVICE | |
| Dynamic QoS, COPS, IPSec, cable intercept, lawful intercept | |
| LOGGING AND MONITORING | |
| Syslog, traceroute, ping (IPv4 and IPv6) | |
| SYSTEM MANAGEMENT | |
| Industry-compatible CLI, Telnet | |
| SSH, TACACS/TACACS+, and RADIUS; SNMP v1, v2, v3 | |
| 10/100 Ethernet port | |
| PROCESSORS | |
| FreeScale Semiconductor MPC7410 Host Processor | (500 MHz CPU, 166 MHz bus, 2 MB L2 cache) |
| FreeScale Semiconductor MPC8260 PowerQuicc II Communications Processor | (166 MHz CPU) |
| MEMORY | |
| SDRAM System Memory | 512 MB |
| Removable Compact Flash Memory Card | 512 MB |
| Packet Memory | 32 MB |
| On-board Flash Memory | 64 MB |
| POWER | |
| Unit Power | 87 W (typical) |
| SOFTWARE | |
| Minimum Software Revision | BSR 64000 Software Release 4.2.0.13 with the SRM4 modules |
| PHYSICAL | |
| Occupies | a single slot in the BSR 64000 chassis |
| Hot-swappable | with redundancy |
| Front Module LEDs | Fail, Status, Alarm |
| Fan Status LEDs | OK and Fail |
| Alarm LEDs | Minor, Major, Critical |
| Terminal Port | DB-9 (male) connector |
| Audible alarm cutoff button | |
| Flash status LED | |
| CompactFlash card slot | |
| REAR MODULE | |
| External Alarm Interface | DB-25 (female) connector |
| T1/E1 Bits Clock Interface | Input A RJ-48 and Input B RJ-48 connectors |
| Console Port | DB-9 (male) connector |
| 10/100 Ethernet Interface | RJ-45 connector |
| Dimensions | 15.0 in x 15.0 in x 0.12 in (38.1 cm x 38.1 cm x 0.3 cm) |
| Weight | 3.5 lb |
| ENVIRONMENTAL | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
