C100G Bi Directional Module BDM2 / BDM2m 6+12 with 204 MHz
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.

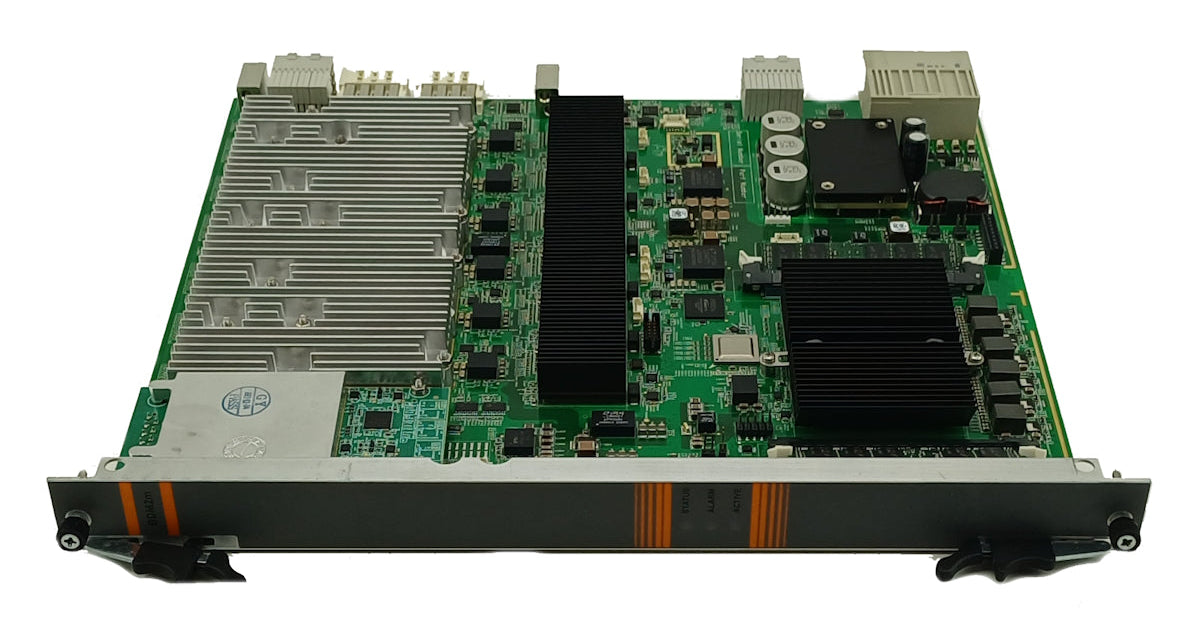

The BDM2/2m 6+12 supports 6 downstream and 12 upstream ports to increase CCAP channel density in either the high-density C100G or the mid-density C40G. The BDM2/2m also supports DOCSIS 3.1E, DOCSIS 3.1, DOCSIS 3.0, and EuroDOCSIS 3.0 standards for maximum operational flexibility.
• Supports full DOCSIS® 3.1/3.1E capacities: 4 x 192 MHz OFDM downstream blocks and up to 2 x OFDMA upstream blocks along with multiple SC-QAM channels per connector port.
• High split capable with upstream up to 204 MHz
• BDM2m provides identical capabilities as the BDM2 card but uses a different packet processor.
| Characteristics | Specification |
|---|---|
| Standards Supported | DOCSIS 3.1E, DOCSIS 3.1, DOCSIS 3.0, EuroDOCSIS 3.0 |
| Downstream Capacity | Per port support for up to four (4) 192 MHz downstream OFDM blocks along with 64 SC-QAM channels |
| Upstream Capacity | Per port support for two (2) 96 MHz upstream OFDMA blocks (R8.6.4+) along with 6 ATDMA SC-QAM channels |
| RF Connector Ports and Frequency Ranges |
BDM2/2m with F+12 I/O Card: * 6 downstream ports * 12 upstream ports * Upstream: 5 MHz to 204 MHz (multiple frequency split variations) * Downstream: 108 MHz to 1218 MHz (multiple variations) |
| I/O Connector Type | MCX-connector |
| Redundancy |
1+1 for the C100G 3+1 for the C40G |
| Total Power | 300 W |
| **Downstream** | |
| Annex Support | Annex A, B, or C |
| QAM Modulations | 64, 128, and 256 QAM |
| DOCSIS 3.1 OFDM Modulations | QPSK, BPSK, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096 QAM |
| Data Rates (DOCSIS 3.0) |
27 Mbps @ 64 QAM 38 Mbps @ 256 QAM |
| Data Rates (EuroDOCSIS) |
36 Mbps @ 64 QAM 51 Mbps @ 256 QAM |
| Data Rates (DOCSIS 3.1 full OFDM Block) |
1.5 Gbps @ 1024 QAM 1.8 Gbps @ 4096 QAM |
| Frequency Step Size | 1 Hz |
| Maximum Output Power (Sum of All Channels) |
60 dBmV @ 1 ch/port 59 dBmV @ 2 ch/port 58 dBmV @ 4+ch/port |
| Output Step Size | 0.1 dB |
| Output Accuracy | ± 3 ppm |
| Return Loss |
14 dB @ 50-870 MHz 10 dB @ 870-1218 MHz |
| Modulation Error Rate | 43 dB (equalized) |
| Wideband Noise | -73 dBc |
| **Upstream** | |
| QAM Modulations | QPSK, 8, 16, 32, 64 QAM |
| OFDMA Modulations | QPSK, BPSK, 8, 16, 32, 64, 128, 256, 512, 1024 QAM |
| QAM Data Rate/Channel | 0.32–30.72 Mbps |
| OFDMA Data Rate/Channel | 950 Mbps |
| Input Range | -10 to 29 dBmV– 10 Log (N) |
C100G-BDM2
