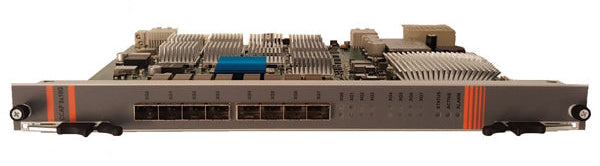

C100G CCAP Services Card CSC8x10G

Casa Systems · C100G-CSC-8X10G
Condition
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

The CSC8x10G provides the DOCSIS and EQAM MAC functions from the CCAP core in Casa’s DAA solution, and performs traffic aggregation for the Distributed Access nodes. With 8x10GbE ports, the CSC8x10G can be used to support at least up to 196 DAA nodes in a single C100G, and can be used to support at least up to 196 DAA nodes in a single C100G.

Narrowband Digital Forward (NDF) and Narrowband Digital Return (NDR) are supported along with two separate Out-of-Band (OOB) interface pairs for the seamless transport of (i) SCTE 55-1 or 55-2 OOB signaling between legacy set-top boxes and headend set-top management systems, (ii) telemetry to nodes, power supplies and amplifiers over the digital network and, (iii) analog FM radio.

CCAP Services Card (CSC8x10G)
Total Power 250W
Connectors (8) SFP+
Optional CSC I/O Card (For out-of-band signal support)
Connectors (4) F-type
Out-of-band Interface pairs 2 NDF ports and 8 NDR ports
Input Level 40 to 60 dBmV
Output Level -10 to 10 dBmV
