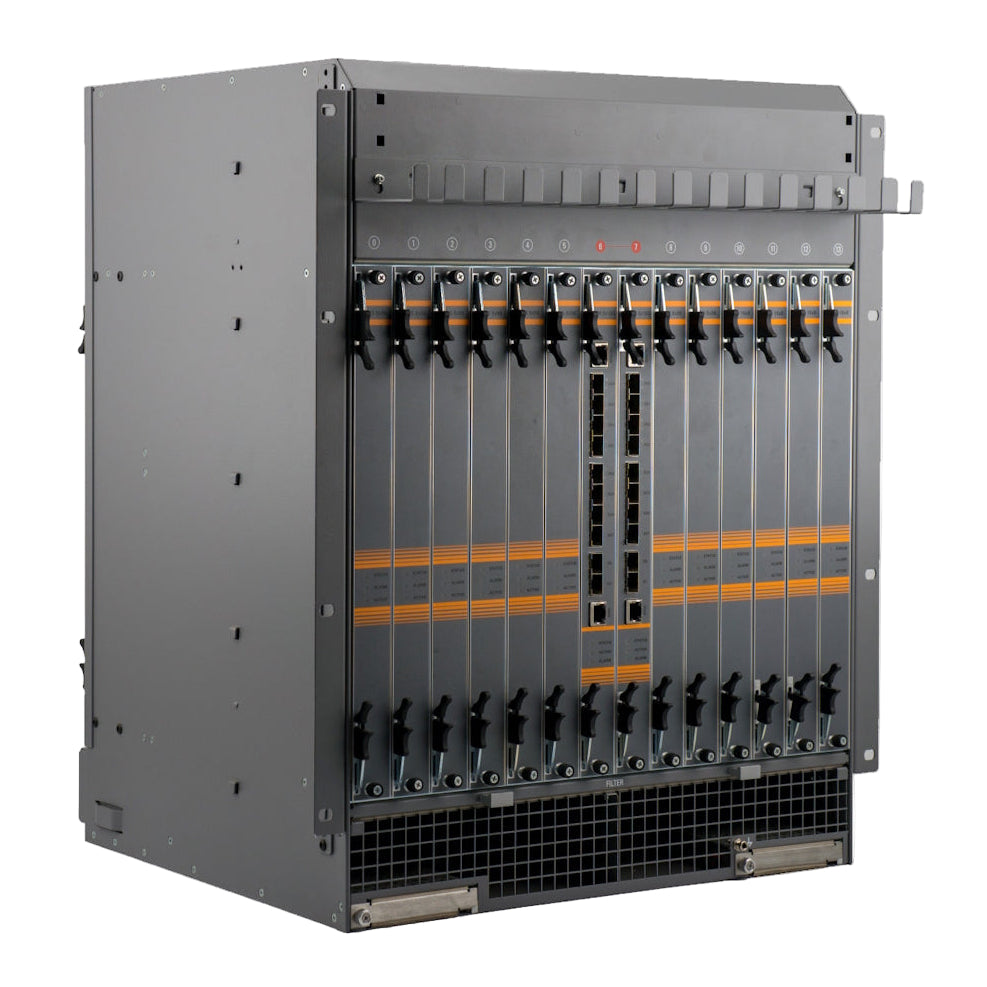

C100G Converged Cable Access Platform Chassis
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Service providers who choose the C100G obtain competitive advantages today, including the ability to deliver faster high-speed data rates, lower OPEX, and improve subscriber Quality of Experience. More importantly, the C100G delivers strategic benefits for the long term — including lower lifetime TCO, and investment protection as networks evolve. Deployed by some of the world’s leading service providers, the C100G is the gold standard for current and future CCAP capabilities
• Proven True CCAP: DOCSIS® PHY and MAC, Edge QAM video, routing and MPLS, and subscriber and traffic management control in one chassis. Delivers video and data over a single port in commercial deployments
• Full Spectrum DOCSIS 3.1 Support: Full 192 MHz OFDM/96 MHz OFDMA spectrum block support with existing hardware
• Future proof: Full support for DOCSIS 3.0, DOCSIS 3.1, and DOCSIS 3.1E
• Scalability: Full 1.2 GHz spectrum support per service group; High‐split capable line cards
• Reliability: 99.999% availability, full redundancy
• Density: 13RU, 14 slot chassis
• Low Power Consumption: 3.6 kW per fully loaded chassis
|
|
|
| Mechanical | |
|---|---|
| Form factor | 13RU |
| Height | 21 in. / 533 mm |
| Width | 19 in. / 482 mm |
| Depth | 16 in. / 406 mm |
| Weight | 120 lbs (fully loaded) |
| Mounting | 19 inch, 13 rack unit high |
| Front panel LED | Power & alarm |
| Environmental | |
| Operating temperature | 0° to 50° C |
| Storage temperature | -40° to 70° C |
| Operating humidity | 5% to 95%, non-cond. |
| Power requirements (DC) | -40.5 to -60 V (dual) |
| Power consumption | < 3600 W (nominal) |
| Regulatory Compliance | |
| Designed to NEBS level 3 requirements | |
| Safety: EN/UL/IEC/CAN/CSA/C22.2 60950-1 | |
| EMC: FCC Part 15 Class A & CISPR Class A | |
| Immunity: EN61000-4 | |
C100G-Chassis-DC
