C100G Downstream DS8x192 Module
Feature Highlights
DOCSIS 3.1 / EuroDOCSIS 3.0 / DOCSIS 3.0 WAN AccessCouldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.

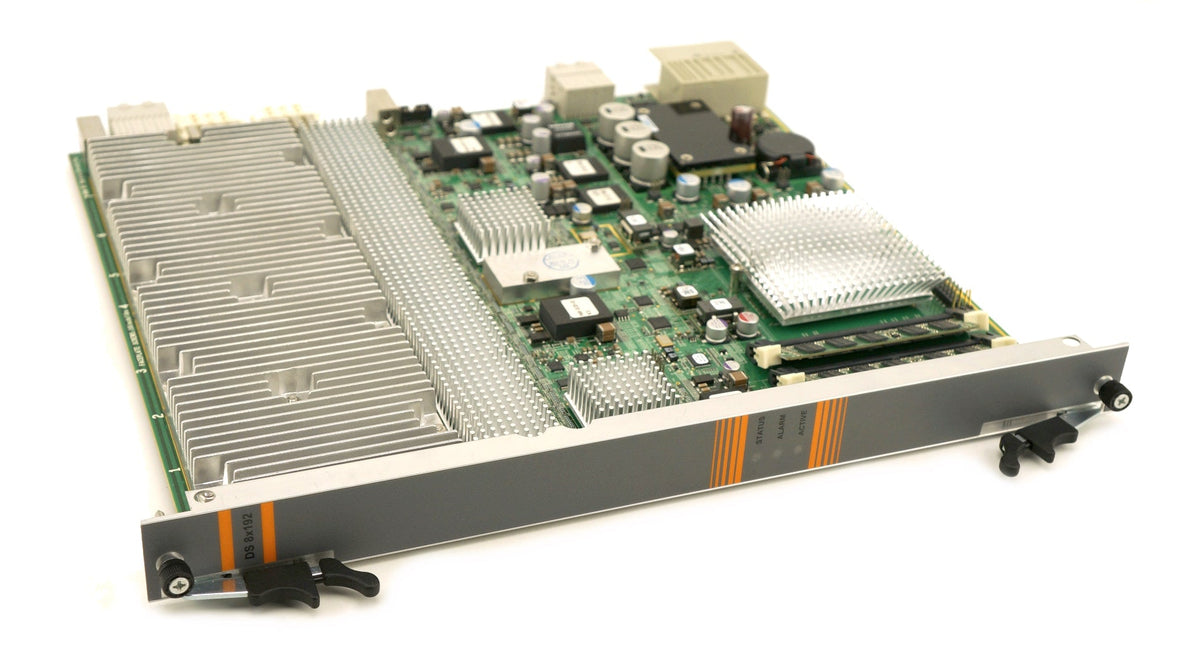

The industry’s first full DOCSIS 3.1 CCAP line-card, the DS8x192, is deployable in either the C100G or the smaller C40G. The DS8x192 module not only supports DOCSIS 3.1 but for service provider flexibility, it also supports DOCSIS 3.0 and EuroDOCSIS 3.0 standards.
- Full DOCSIS 3.1 support - OFDM (192MHz) support allows service providers to deliver the faster downstream speeds needed to meet customer and competitive demands
- 8 physical RF F-connector ports up to two 192 MHz OFDM channels, along with multiple SC-QAM channels available today
- Complete DOCSIS downstream unit includes DOCSIS downstream MAC and PHY
| Standards Supported | DOCSIS 3.1, EuroDOCSIS 3.0, DOCSIS 3.0 |
| QAM Modulations | Annex A, B or C |
| DOCSIS 3.1 Modulations | QPSK, BPSK, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096 QAM |
| Channel Width | 6 to 8 MHz tunable |
| Data Rates (DOCSIS) |
27 Mbps @ 64 QAM 38 Mbps @ 256 QAM |
| Data Rates (EuroDOCSIS) |
36 Mbps @ 64 QAM 51 Mbps @ 256 QAM |
| Frequency Range | 108 MHz – 1218 MHz |
| Frequency Step Size | 1 Hz |
| I/O Connector Type | F-connector |
| Maximum Output Power (sum of all channels) |
60 dBmV @ 1 ch / port 59 dBmV @ 2 ch / port 58 dBmV @ 4+ ch / port |
| Output step size | 0.1 dB |
| Output accuracy | +/- 3 ppm |
| Return Loss Accuracy |
50 – 870 MHz, 14 dB 870 – 1218 MHz, 10 dB |
| Modulation Error Rate | 43 dB (equalized) |
| Wideband Noise | -73 dBc |
| Total Power | 320W |
C100G-DS8x192
