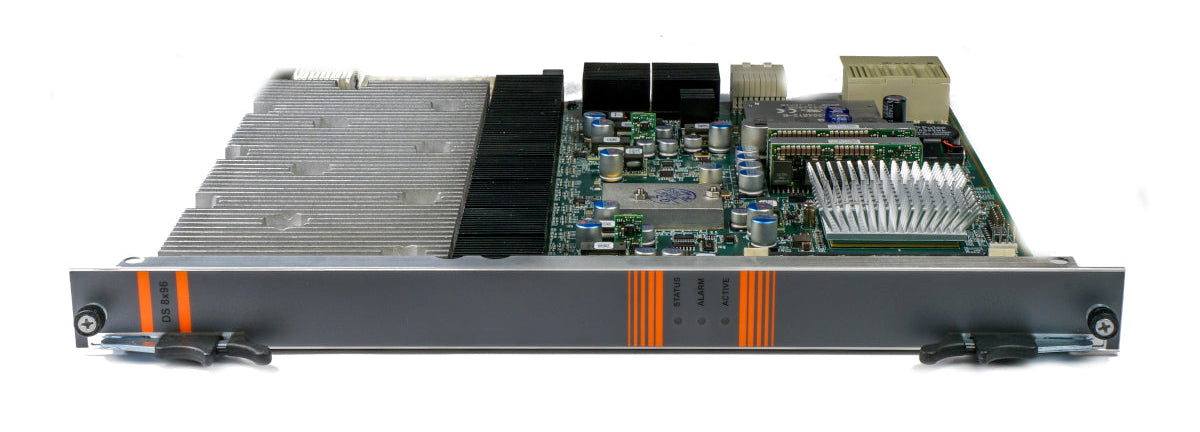

C100G Downstream DS8x96 Module

Name: C100G Downstream DS8x96 Module
Brand: Casa Systems
SKU: 56103435043164

Casa Systems · C100G-DS8x96

Refurbished

12 In Stock

1-Year Warranty

30-Day Returns

Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

Casa Systems’ downstream DS8x96 module provides carriers with a lower capacity option than the DS8x192 module. It is designed to be deployed in either the C100G or the smaller C40G. The DS8x96 module not only supports DOCSIS 3.1® but for service provider flexibility, it also supports DOCSIS 3.0 and EuroDOCSIS 3.0 standards.

DOCSIS 3.1 Support: OFDM support available today
Complete DOCSIS downstream: unit includes DOCSIS downstream MAC and PHY

Specification	Value
Standards Supported	DOCSIS 3.1, EuroDOCSIS 3.0, DOCSIS 3.0
QAM Modulations	Annex A, B or C
DOCSIS 3.1 Modulations	QPSK, BPSK, 8, 16, 32, 64, 128, 256, 512, 1024 QAM
Channel Width	6 to 8 MHz tunable
Data Rates (DOCSIS)	27 Mbps @64 QAM 38 Mbps @ 256 QAM
Data Rates (EuroDOCSIS)	36 Mbps @64 QAM 51 Mbps @ 256 QAM
Frequency Range	48 MHz - 1000 MHz
Frequency Step Size	1 Hz
I/O Connector Type	F-connector
Maximum Output Power (sum of all channels)	60 dBmV @ 1 ch / port 59 dBmV @ 2 ch / port 58 dBmV @ 4+ ch / port
Output step size	0.1 dB
Output accuracy	+/- 5 ppm
Return Loss Accuracy	50 - 870 MHz, 14 dB 870 - 1218 MHz, 10 dB
Wideband Noise	- 73 dBc
Total Power	320W
