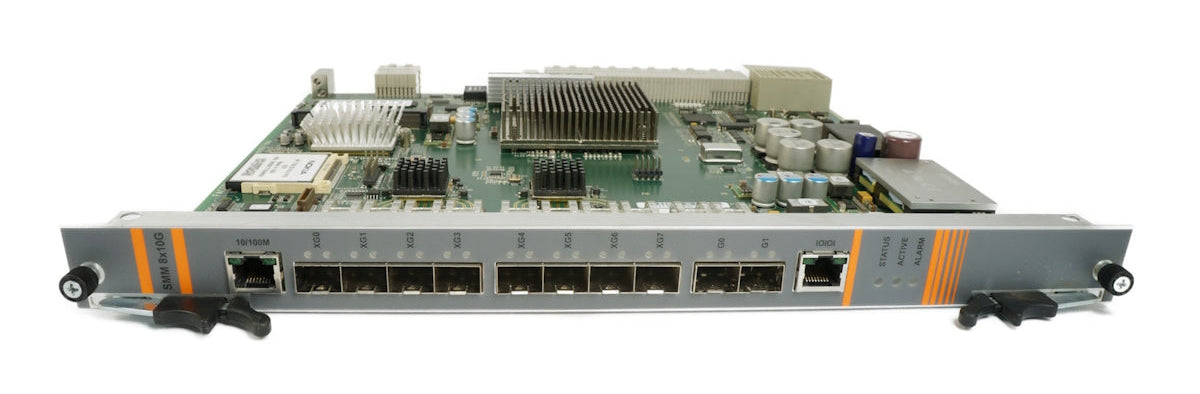

C100G SMM8x10G Switch and Management Module

Casa Systems · C100G-SMM-8x10G
Condition
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

The SMM8x10G provides robust switching and routing features to support a range of services including MPLS, BGP (IPv4 and IPv6), and L2 VPN. Designed for the high availability service providers require, the SMM8x10G runs in Active-Active mode on the data plane and Active-Protect on the control plane and provides 1+1 redundancy. Features such as IEEE 1588v2 Precision Timing and SyncE provide precision timing services required for ultra-broadband services, including mobile backhaul. Management interfaces including CLI, Telnet, SSH, SNMPv1, 2, 3, TACACS+ and Radius enable user friendly, flexible network management

Category Specification / Feature
Capacity Eight 10GE interfaces (SFP+) and two 1GE interfaces (SFP) per module
Management Two management ports:
* 1G Ethernet (RJ45) and a Console port (RJ45)
* Command line interface (CLI) Telnet
* SSH
* SNMPv1, v2 & v3
* Standard DOCSIS & IETF MIBs
* IPDR
* Casa Systems Enterprise MIBs
* Event logging through Syslog Electronic mail notification
* Resource usage reporting TACACS+ and RADIUS
* Front LEDs including Status, Active, and Alarm
Environmental Operating temperature: 0.0° to 50° C
Storage temperature: -40° to 70° C
Operating Humidity: 5% to 95%, non-cond.
Power Requirements (DC): -40.5 to -60 V (dual)
Power Consumption: 160W
Additional Features IEEE 1588v2 Precision Timing and Synchronous Ethernet support for delivering precision timing services for cellular backhaul
IP Features * OSPF V2 and OSPF V3
* IS-IS (IPv4 & IPv6)
* RIPv2 and RIPng
* BGP (IPv4 & IPv6)
* PIM-SM
* IGMP snooping
* IGMP V2 and V3
* Static IP routing
* DHCP Relay and option 82
* DHCPv6
* DHCP prefix delegation
* Multiple DHCP servers
* Proxy ARP IP subnet bundling
* Multiple default routes
* Access Control Lists
* L2 MPLS
* L3 MPLS
* L2VPN VLAN Tagging
* Link Aggregation
* IPIX
* Pseudowire redundancy
Regulatory Compliance * Designed to NEBS level 3 requirements
* Safety: EN/UL/IEC/CAN/CSA/C22.2 60950-1
* EMC: FCC Part 15 Class A & CISPR Class A
* Immunity: EN61000-4
All technical data, specifications and descriptions published on this website are provided for general information purposes only. We make reasonable efforts to ensure that the information is accurate and up to date; however, no guarantee, warranty or representation (express or implied) is given that any information is complete, correct, current or error-free. Images are for illustration purposes only, actual product may not include all parts visible.
Related Part Numbers, Identifiers and Tags
C100G-SMM-8x10G
