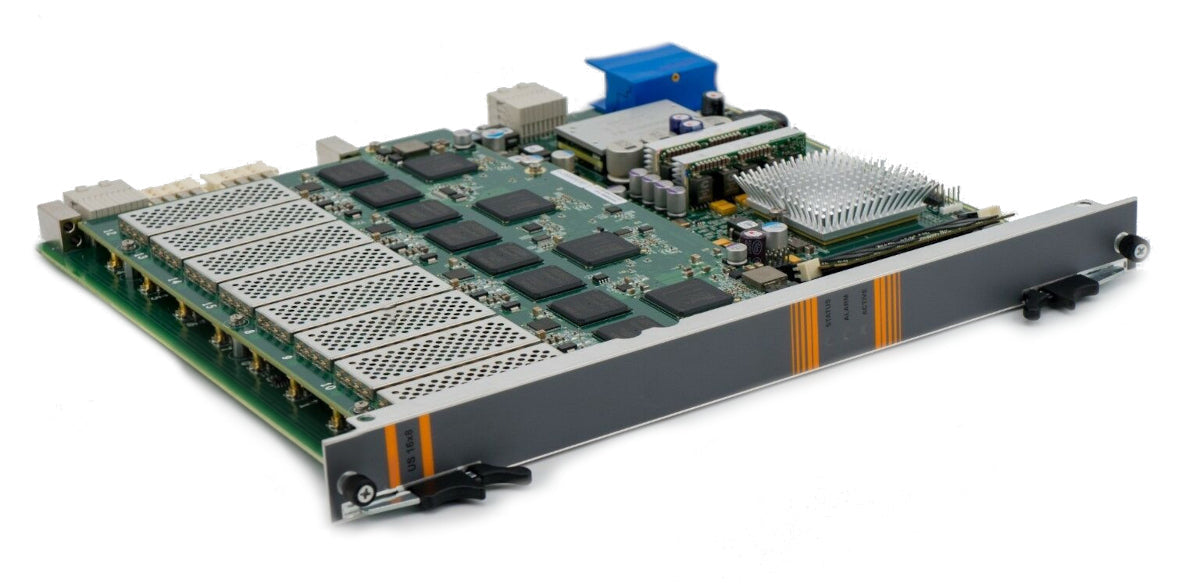

C100G Upstream US16x8 Module
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The US16x8 DOCSIS module is a complete DOCSIS upstream unit that includes RF burst receiving, signal demodulation, DOCSIS upstream MAC, PHY, as well as packet processing and QoS. Together with the RF upstream I/O (RFU) module, it serves as the RF upstream interface between the cable headend and DOCSIS-based cable modems. The US16x8 is a single-slot module, supports 16 DOCSIS burst receivers, and is a hot-swappable unit. Deployable in either the C100G or the smaller C40G, the US16x8 module offers up to 8 channels per port and 128 channels per module.
- Full DOCSIS 3.1 Support: Full OFDMA (96 MHz) support available today
- Superior Channel Density: Software upgradeable to 8 channels per port and 128 channels per module — no field upgrades required
- Complete DOCSIS upstream unit includes RF burst receiving, signal demodulation, DOCSIS upstream MAC, PHY, as well as packet processing and QoS
| Specification | Value |
|---|---|
| Standards Supported | DOCSIS 3.1, EuroDOCSIS 3.0, DOCSIS 3.0 |
| Input Frequency Range | 5 - 100MHz (16 port) 15 - 55 MHz (32 port) |
| QAM Modulations | QPSK, 8, 16, 32 and 64 QAM |
| DOCSIS 3.1 Modulations | QPSK, BPSK, 8, 16, 32, 64, 128, 256, 512, 1024 QAM |
| DOCSIS 3.0 Channels (16 port) | 8 ATDMA per port |
| DOCSIS 3.1 Channels (16 port) | 1 OFDMA + 4 ATDMA per port |
| 32 Port Option | 4 ATDMA per port |
| Logical Channels per Physical Channel | 2 |
| QAM Data Rate / Channel | 0.32 - 30.72 Mbps |
| OFDM Data Rate / Channel | 950 Mbps |
| Power Consumption | 200W |
| I/O Connector Type (16 port) | F-connector |
| I/O Connector Type (32 port) | MCX |
| Redundancy | N + 1 |
| Input Range | -10 to 29 dBmV - 10Log(N) |
C100G-US16x8
