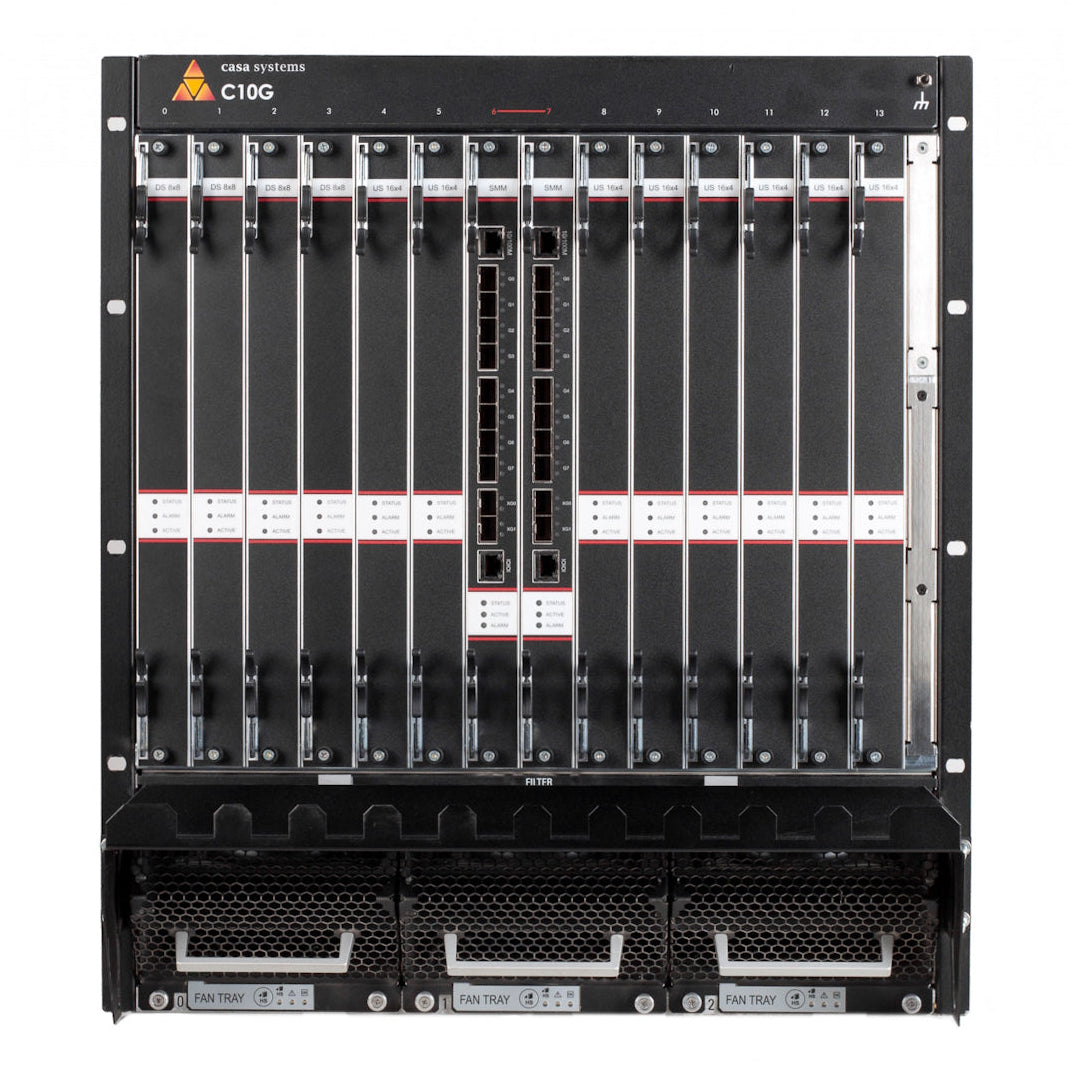

C10G Cable Modem Termination System Chassis
Casa Systems · C10G-Chassis-DC
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
The Casa Systems C10G Cable Modem Termination System (CMTS) is a new class of DOCSIS 3.0 cable edge device that delivers unprecedented performance and scalability in a 12RU platform. It was designed from the ground up to support higher density and increased functionality which have become cornerstones of the CCAP specification. The C10G delivers the highest density in the industry and its service creation capability allows cable operators to deploy DOCSIS, IPTV and digital video over a single port on a single chassis today.
| System | |
|---|---|
| Switching Capacity | 480x2 Gbps |
| Switching Type | MPEG switching from any port to any port |
| DOCSIS Module Slots | 12 DOCSIS module slots per system |
| Downstream Modules | 1~11 Downstream modules per system |
| Upstream Modules | 1~11 Upstream modules per system |
| DOCSIS Features | |
| Compliance | Full DOCSIS 3.0 compliant, Full EuroDOCSIS 3.0 |
| Downstream Channel Bonding | Up to 64 channels |
| Upstream Channel Bonding | Up to 64 channels |
| Encryption / Decryption | DOCSIS 3.0 AES |
| IP Support | DOCSIS 3.0 IPv6, DOCSIS 3.0 Multicast |
| Other DOCSIS Support |
* Complete DOCSIS/EuroDOCSIS 1.1 features * DOCSIS/EuroDOCSIS 2.0 A–TDMA (standard) * PacketCable 1.5 qualified * PacketCable MultiMedia (PCMM) 1.0 * DSG * L2VPN |
| IP Features | |
| Routing Protocols |
* OSPFv2 * IS-IS (IPv4 & IPv6) * RIPv2 * BGP (IPv4 & IPv6) * PIM–SM |
| Forwarding / Switching |
* IGMP snooping * IGMP v2 and v3 * Static IP routing |
| DHCP |
* DHCP Relay and option 82 * DHCPv6 * DHCP prefix delegation * Multiple DHCP servers |
| Layer 2 / Bridging |
* Proxy ARP * IP subnet bundling * Multiple default routes * Access Control Lists * L2VPN VLAN tagging |
| Management | |
| Access Ports |
* RS232 serial port (RJ45) * 10/100BASE-T management port |
| Interface & Security |
* Command line interface (CLI) * Telnet * SSH * SNMPv1, v2 & v3 |
| MIBs & Data |
* Standard DOCSIS & IETF MIBs * IPDR * Casa Systems Enterprise MIBs |
| Reporting |
* Event logging through Syslog * Electronic mail notification * Resource usage reporting * TACACS+ and RADIUS |
| Additional Features | |
| Load Balancing | Dynamic upstream & downstream load balancing |
| Spectrum | Spectrum Management |
| Domains | Software-defined MAC domains |
| Licensing | Software channel licensing |
| Filtering | Ingress cancellation filtering |
| Mechanical | |
| Form factor | 12RU |
| Height | 21 in. / 533 mm |
| Width | 19 in. / 482 mm |
| Depth | 16 in. / 406 mm |
| Weight | 120 lbs (fully loaded) |
| Mounting high | 19 inch, 12 rack unit |
| Front panel LED | Power & alarm |
| Environmental | |
| Operating temperature | 0° to 50° C |
| Storage temperature | -40° to 70° C |
| Operating humidity | 5% to 95%, non-cond. |
| Power requirements (DC) | -40.5 to -60 V (dual) |
| Power consumption | < 2700 W (nominal) |
| Regulatory Compliance | |
| NEBS | Designed to NEBS level 3 requirements |
| Safety | EN/UL/IEC/CAN/CSA/C22.2 60950-1 |
| EMC | FCC Part 15 Class A & CISPR Class A |
| Immunity | EN61000-4 |
