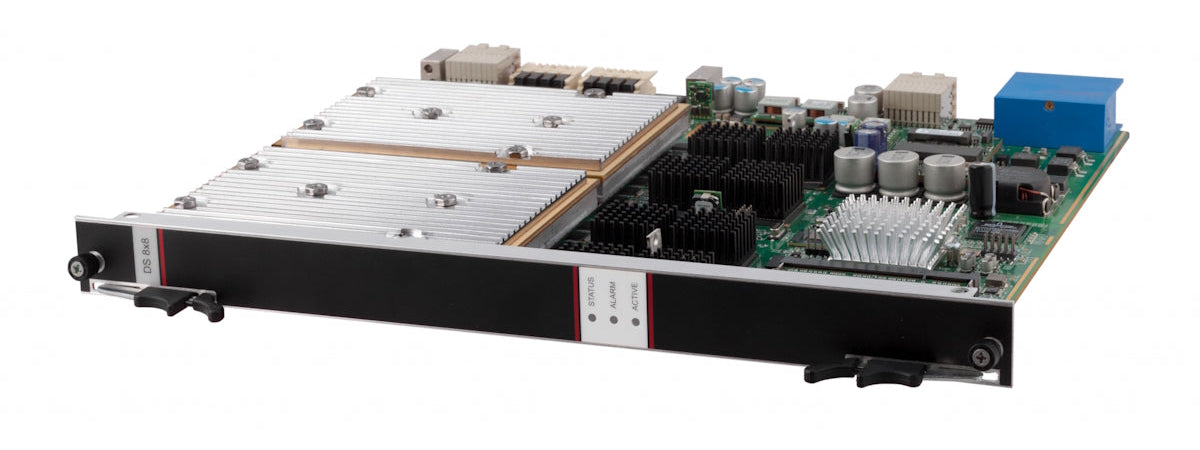

C10G Downstream DS8x8 / DQM64 Module

Name: C10G Downstream DS8x8 / DQM64 Module
Brand: Casa Systems
SKU: 56103434355036

Casa Systems · C10G-DS8x8 · C10G-DQM64

Refurbished

On Request

1-Year Warranty

30-Day Returns

Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

The C10G supports complete separation of downstream (DS) channel capacity and upstream (US) channel capacity in a single physical chassis, providing a flexible downstream to upstream channel ratio. Cable operators can add downstream channels and upstream channels completely independently within the same chassis.

The DOCSIS QAM Module (DQM) is a complete DOCSIS downstream unit that includes DOCSIS packet processing, QoS, DOCSIS downstream MAC, PHY and RF up-conversion.

DOCSIS QAM Module (DQM)
DQM32	32 channels, 4 channels/port
DQM64	64 channels, 8 channels/port
QAM modulation	Annex A, B or C
QAM constellations	64, 128 & 256 QAM
Data rates (DOCSIS)	27 Mbps @ 64 QAM 38 Mbps @ 256 QAM
Data rates (EuroDOCSIS)	36 Mbps @ 64 QAM 51 Mbps @ 256 QAM
Frequency range (center)	48 to 1000 MHz
Frequency step size	5 kHz
Channel width	6 to 8 MHz (tunable)
Maximum output power per channel	60 dBmV @ 1-ch/port 56 dBmV @ 2-ch/port 52 dBmV @ 4-ch/port 49 dBmV @ 8-ch/port
Output step size	0.1 dB
Output accuracy	± 5 ppm
Return loss	50 ~ 870 MHz, 14 dB 870 ~ 1002 MHz, 10 dB
Modulation error rate	43 dB (equalized)
Wideband noise	-73 dBc
RF I/O Downstream Module (RFD)
Number of ports per module	8 ports per module
Connector	F–type, 75 $\Omega$
