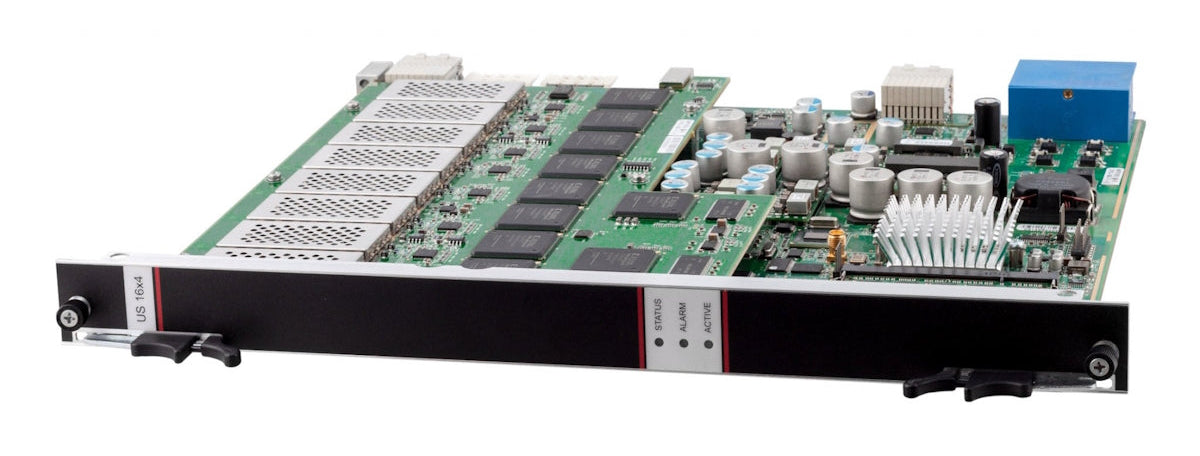

C10G Upstream US16x4 / DCU64 Module

Casa Systems · C10G-US16x4 · C10G-DCU64
1-Year Warranty
30-Day Returns
Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

Description
Technical Specifications

The C10G supports complete separation of downstream (DS) channel capacity and upstream (US) channel capacity in a single physical chassis, providing a flexible downstream to upstream channel ratio. Cable operators can add downstream channels and upstream channels completely independently within the same chassis.

The DOCSIS Control and Upstream module (DCU) is a complete DOCSIS upstream unit that includes DOCSIS packet processing, DOCSIS upstream MAC and burst mode receivers.

DOCSIS Control and Upstream Module (DCU)
DCU32 32 channels, 2 channels per port
DCU64 64 channels, 4 channels per port
Modulation 64 QAM QPSK, 8, 16, 32 & 64 QAM
Data rate/channel Mbps 0.32 – 30.72
Input frequency range (DOCSIS) 5 – 42 MHz
Input frequency range (EuroDOCSIS) 5 – 65 MHz
Input frequency range (J-DOCSIS) 5 – 55 MHz
Input range -16 to 26 dBmV
RF I/O Upstream Module (RFU)
Number of ports per module 16 ports per module
Connector F–type, 75 $\Omega$
