C2200 Cable Modem Termination System
Casa Systems · C2200-Chassis-AC
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications

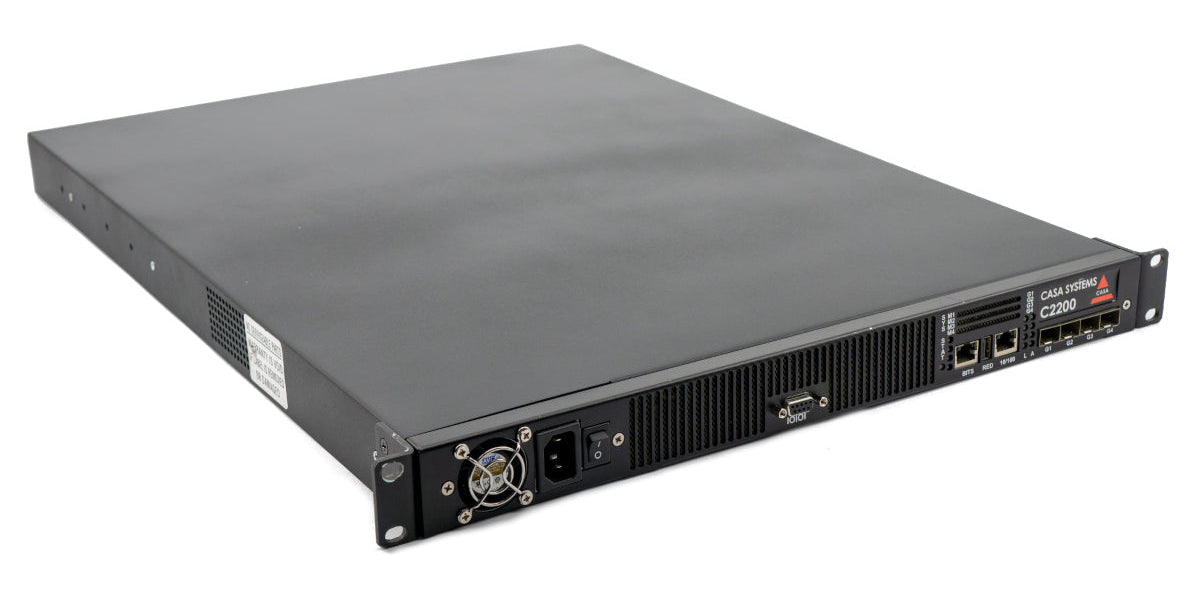

The Casa Systems C2200 Cable Modem Termination System (C2200) is a new class of cable edge device that combines a third generation DOCSIS CMTS and an MPEG video EdgeQAM in a single compact 1RU platform.
Full DOCSIS 3.0 qualified – Multi-‐‑channel DRFI RF for Annex A, B, & C, downstream channel bonding up to 16 channels, upstream channel bonding up to 16 channels, AES encryption/decryption, multicast QoS, bonded channel multicast, full DOCSIS 3.0 MIBs, and IPDR
Separate downstream and upstream modules – Unlike traditional CMTS with fixed downstream to upstream ratio, Casa CMTS has separate downstream modules and upstream modules that provide flexible downstream to upstream ratio
| System | |
|---|---|
| Switching Capacity | 4x2 Gbps switching capacity |
| Switching Type | MPEG stream switching from any port to any port |
| DOCSIS Interfaces Slots | Four DOCSIS interface slots per system |
| Downstream Modules | 1–3 Downstream modules per system |
| Upstream Modules | 1–3 Upstream modules per system |
| DOCSIS Features | |
| Compliance |
Full DOCSIS 3.0 qualified (May 2008) Full EuroDOCSIS 3.0 compliant |
| Downstream Channel Bonding | DOCSIS 3.0 downstream channel bonding up to 16 channels |
| Upstream Channel Bonding | DOCSIS 3.0 upstream channel bonding up to 16 channels |
| Encryption / Decryption | DOCSIS 3.0 AES encryption/decryption |
| IP Support | DOCSIS 3.0 IPv6, DOCSIS 3.0 Multicast |
| Legacy & Protocol Support |
* Complete DOCSIS/EuroDOCSIS 1.1 features * DOCSIS/EuroDOCSIS 2.0 A–TDMA (standard) * DOCSIS/EuroDOCSIS 2.0 S–CDMA (optional) * PacketCable 1.5 compliant * PacketCable MultiMedia (PCMM) 1.0 * DSG * L2VPN |
| IP Features | |
| DHCP | DHCP Relay and option 82, Multiple DHCP servers |
| Bridging / Layer 2 |
* Proxy ARP * IP subnet bundling * Multiple default routes * IGMP snooping * IGMP v2 and v3 * L2VPN VLAN tagging * Access control list |
| Routing | BGP, RIPv2, OSPFv2, IS-IS |
| Protocol | PIM-SM |
| Management | |
| Access Ports |
* RS232 Serial port (DB9) * 10/100BASE-T management port |
| Interface & Security |
* Command line interface (CLI) * Telnet and SSH * SNMPv1, v2, and v3 |
| MIBs & Data |
* Standard DOCSIS and IETF MIBs * IPDR * Casa Systems Enterprise MIBs |
| Reporting |
* Event logging through syslog * Electronic mail notification * Resource usage reporting * TACACS+ and RADIUS |
| Additional Features | |
| Load Balancing | Dynamic upstream and downstream load balancing |
| Spectrum | Spectrum management |
| Domains | Software-defined MAC domains |
| Licensing | Software channel licensing |
| Filtering | Ingress cancellation filtering |
| MPEG Stream Processing | |
| Multiplexing |
* MPEG de-multiplexing and re-multiplexing * Unicast to multicast conversion |
| Stream Control |
* PAT and PMT extraction and regeneration * PID filtering and remapping * PCR jitter removal and re-stamping |
| Table Generation | SI table generation and insertion |
| Encryption | DVB Simulcrypt scrambling, Session-based encryption |
| GigE Interfaces | |
| Speed | 10/100/1000 Mbps |
| Ports | 4-port copper or fiber SFP |
| Wavelength | CWDM |
| Throughput | Full line-rate support |
| DOCSIS QAM Module (DQM) - Downstream | |
| Number of ports | 4 ports per module |
| DQM04 | 4 channels, 1 channel per port |
| DQM08 | 8 channels, 2 channels per port |
| DQM16 | 16 channels, 4 channels per port |
| QAM modulation | Annex A, B or C |
| QAM constellations | 64, 128, & 256 QAM |
| Data rates (DOCSIS) |
27 Mbps @ 64 QAM 38 Mbps @ 256 QAM |
| Data rates (EuroDOCSIS) |
36 Mbps @ 64 QAM 51 Mbps @ 256 QAM |
| Connector | F–type, 75 $\Omega$ |
| Frequency range (center) |
91 to 870 MHz (standard) 48 to 999 MHz (optional) |
| Frequency accuracy | +/- 5 ppm |
| Frequency step size | 5 kHz |
| Channel width | 6 to 8 MHz (tunable) |
| Maximum output power per channel |
61 dBmV @ 1-ch/port 57 dBmV @ 2-ch/port 53 dBmV @ 4-ch/port |
| Output step size | 0.1 dB |
| Return loss |
50 – 870 MHz, 14 dB 870 – 1002 MHz, 10 dB |
| Modulation error rate | 43 dB (equalized) |
| Wideband noise | -73 dBc |
| DOCSIS Control and Upstream Module (DCU) | |
| DCU04 | 4 channels in 4 ports |
| DCU08 | 8 channels in 8 ports |
| DCU16 | 16 channels in 8 ports |
| Modulation | QPSK, 16, 32 & 64 QAM |
| Data rate per channel | 0.32 – 30.72 Mbps |
| Input frequency range (DOCSIS) | 5 – 42 MHz |
| Input frequency range (EuroDOCSIS) | 5 – 65 MHz |
| Input frequency range (J-DOCSIS) | 5 – 55 MHz |
| Connector | F–type, 75 $\Omega$ |
| Input range | -4 to 26 dBmV |
| Mechanical | |
| Form Factor | 1RU |
| Height | 1.75 in. / 44.45 mm |
| Width | 19 in. / 482.6 mm |
| Depth | 23.5 in. / 597 mm |
| Weight | 30 lbs / 13.62 kg |
| Mounting | 19 inch, 1 rack unit high |
| Front Panel LED | Power, alarm, I/O status |
| Environmental | |
| Operating temperature | 0° to 50° C |
| Storage temperature | -40° to 70° C |
| Operating humidity | 5% to 95%, non-cond. |
| Power supply AC operating range | 90 to 264 V |
| Optional DC | -36 to -60 V (redundant) |
| Power consumption | < 400 W (nominal) |
| Regulatory Compliance | |
| Safety | UL/IEC/CSA 60950-1 |
| EMC | FCC Part 15 Class A and CISPR Class A |
| Immunity | EN61000-4 |
