C4 16 Downstream Cable Access Module
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.

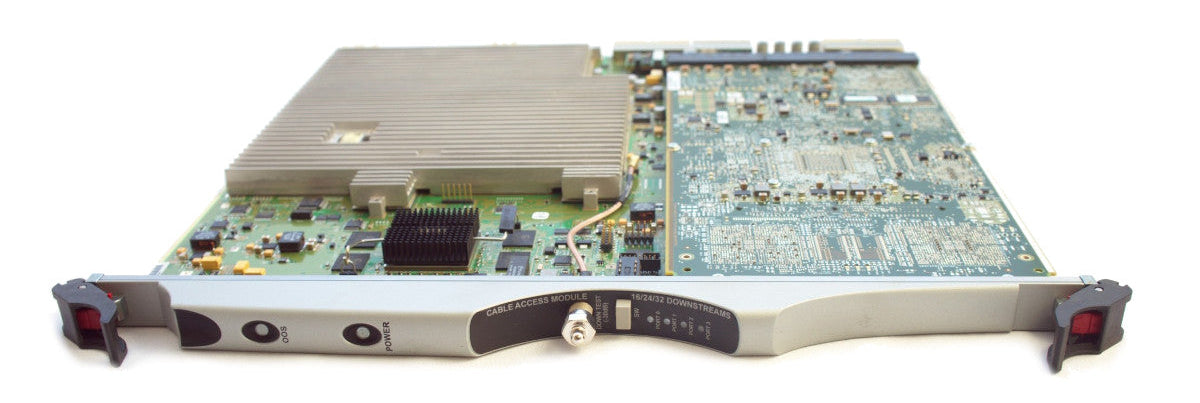

The ARRIS C4 and C4c 16 Downstream Cable Access Module (16D CAM) supports sixteen DOCSIS or EuroDOCSIS 3.0 downstream channels. These channels are grouped onto four upconverters with four Annex A or Annex B channels per upconverter. The Physical Interface Card (PIC) of the 16D CAM has four F-connectors with each F-connector connected to the output of one of the upconverters. Each downstream channel on the same upconverter/F-connector must have a unique center frequency, but the channels are not required to be contiguous. The downstream channels on a single F-connector can span up to 80MHz of spectrum, allowing an MSO flexibility in choosing DOCSIS downstream frequencies.
| RF Downstream | |
|---|---|
| Frequency Range (MHz) | 91 to 999 (DOCSIS® 3.0); 112 to 999 (EuroDOCSIS™ 3.0) |
| Modulation (QAM) | 64, 256 |
| Data Rate (Mbps) (Max.) | 30.34 to 55.62 per channel |
| RF Output Level (dBmV) | 41 to 60 |
| Typical Modulation Error Ratio (MER) (dB) | 47 |
| Symbol Rate (Msym/sec) | 5.361 (DOCSIS); 6.952 (EuroDOCSIS) |
| Bandwidth (MHz) | 6 (DOCSIS), 8 (EuroDOCSIS) |
| Output (load) impedance (ohms) | 75 |
| Physical | |
| Power | -48 VDC (-44 to -72 VDC) |
| Power Consumption Classic Rev G |
139 W max at -48 VDC, 77°F (25°C) |
| Power Consumption Optimized |
136 W max at -48 VDC, 77°F (25°C) |
| Operating Temperature Short Term °F (°C) |
+23 to +131 (-5 to +55) |
| Operating Temperature Long Term °F (°C) |
+41 to +104 (+5 to +40) |
| Storage Temperature °F (°C) | -40 to +158 (-40 to +70) |
| Operating Humidity (Min.-Max.) | 5 to 85% (Non condensing) |
| Dimensions (H × W × D) in. (cm) | 15.8 × 0.8 × 15.0 (40.0 × 1.9 × 38.1) |
| Weight lbs. (kg) | approx 4.1 (1.8) |
C4 16D CAM
