C4 24 Upstream Cable Access Module
Arris · C4 24U CAM
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications

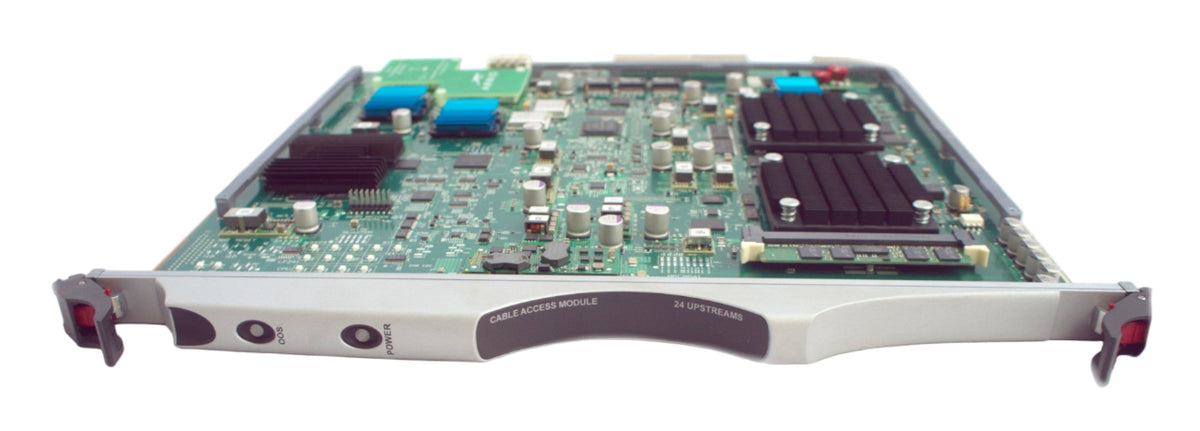

The 24U Cable Access Module (CAM) provides twenty-four physical upstream RF receivers on a single blade for the ARRIS C4 Cable Modem Termination System (CMTS). The 24U CAM uses the same Physical Interface Card (PIC) as the current 12U CAM with eight F connectors. In addition, these upstream channels can be positioned anywhere in the upstream spectrum of 5 MHz to 85 MHz
| RF Upstream | |
|---|---|
| Frequency Range (MHz) | 5 to 85 (5 to 65 with Software Release 8.0) |
| Modulation | QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM |
| Channel Type | TDMA, ATDMA, TDMA/ATDMA, SCDMA |
| Data Rate (Mbps) (Max.) | 30.72 per channel |
| RF Input Level (dBmV) | -16 to +29 |
| Frequency Resolution (KHz) | < 1 |
| Symbol Rate (Ksym/sec) | 160, 320, 640, 1280, 2560, 5120 |
| Bandwidth per Channel (MHz) | 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 |
| Physical | |
| Power | -48 VDC (-44 to -72 VDC) |
| Power Consumption | 100 W nominal and 125 W max at -48 VDC, 77°F (25°C) |
| Operating Temperature: Short Term °F (°C) |
+23 to +131 ( -5 to +55 ) |
| Operating Temperature: Long Term °F (°C) |
+41 to +104 ( +5 to +40 ) |
| Storage Temperature °F (°C) | -40 to +158 ( -40 to +70 ) |
| Operating Humidity (Min.-Max.) | 5 to 85% (Non condensing) |
| Dimensions (H × W × D) in. (cm) | 15.8 × 0.8 × 15.0 (40.0 × 1.9 × 38.1) |
| Weight lbs. (kg) | approx 4.6 (2.1) |
