CG3100 DOCSIS 3.0 Wireless-N Voice/Data Cable Gateway

NETGEAR · CG3100

Condition

Refurbished

Feature Highlights

EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
Single-Band WiFi 4 (N)
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The NETGEAR CG3000/CG3100 DOCSIS 3.0, Wireless-N Gigabit Gateway delivers the ultimate in performance for home and small business networking. This Gateway offers both wired and wireless connections for blazing fast data transfers, VoIP, Real Time HD media streaming, gaming and maximum Internet bandwidth. Along with four Gigabit Ethernet ports enabling maximum wired speeds, this full featured high performance gateway is an ideal solution for the connected home or small business with multiple computers and network enabled devices running multiple applications at the same time.

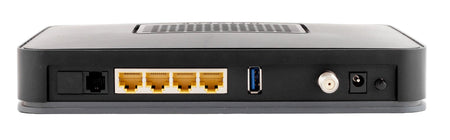

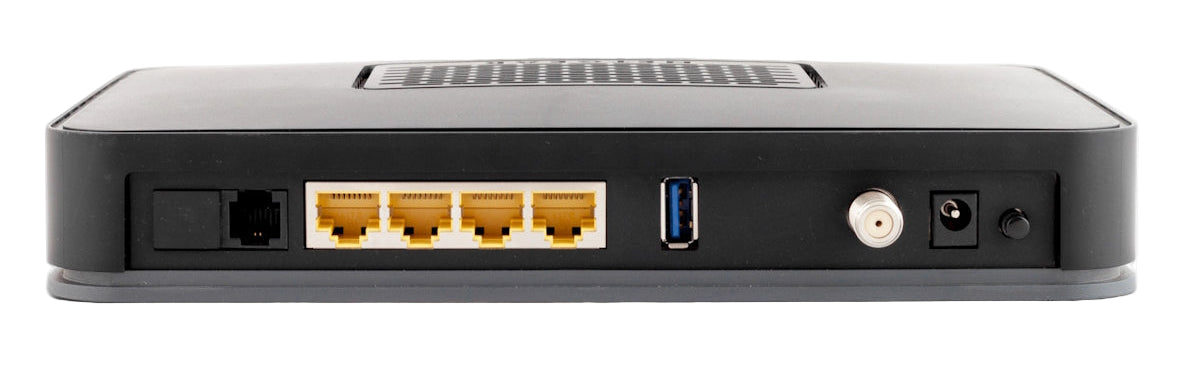

Physical Interfaces	LAN: Four 10/100/1000 Mbps auto-sensing — MDIX, Auto Uplink RJ-45 ports WAN Port: Coax F Connector Wireless: 802.11n in the 2.4 GHz band – access point auto rate capable FXS for analog phones (2 lines) USB Host – 1 Port
System Requirements	2.4 GHz wireless adapter or Ethernet adapter and cable for each computer DOCSIS/EuroDOCSIS 3.0 or earlier Internet service PacketCable / EuroPacketCable 1.5 or earlier or SIP VoIP signaling Microsoft Internet Explorer 6.0 or higher Microsoft Windows Vista, XP, and other operating systems running a TCP/IP network VISTA Ready (32 bit) Windows 7, Linux, Apple
Standards Compliance	DOCSIS 3.0 (CG3000), EuroDOCSIS 3.0 (CG3100), and backward compatible with CMTS’s based on: DOCSIS 2.0, EuroDOCSIS 2.0, DOCSIS 1.1
Voice	PacketCable & EuroPacketCable 1.5 Voice Features: Caller ID, call hold, transfer, forwarding, return, conference, redial, speed dial, anonymous call, voicemail, power control Codecs: AMR, BV-16, G.711, G723.1, G.726, G.729, G729a, G.722, G.168, iLBC, T.38 Fax relay Signaling: MGCP & SIP
Application Layer	DHCP, DNS (Proxy & Dynamic), HTTP, RTP, Passes UPnP
Transport Layer	RSVP, TCP, UDPv4, UDPv6
Network Layer	ARP, ICMP, IGMP, IPv4, IPv6 client/server/relay, IPv6CP fragmentation and reassembly, NAT/PAT, RT QoS
Data Link Layer	Bridging, VPN Pass-through, Static Routing, Port Forwarding, 802.1d, Spanning tree
Physical Layer	Ethernet:10BaseT/100BaseT /1000BaseT
Management Specifications	Advanced Settings: Wireless, Port Forwarding, Port Triggering Event Logs, Trusted User Maintenance: Status, Attached Devices, Backups, Set Password, Software Upgrades Network Time Protocol RF Interface IB Setup: LAN, DNS, Static Routes Syslog Telnet, TR-069, Web Management
WiFi Features	802.1x Disable SSID broadcast Disable the WiFi Radio MAC address Access Control Multiple SSIDs Push ’N Connect WiFi Protected Setup with PIN or push button SID to SSID QoS mapping Turn WiFi on or off with software WEP 64/128 bit WMM-QoS & UAPSD WPA2, WPA2-PSK
Security	Firewall: Stateful packet inspection (SPI), intrusion logging and reporting DHCP client on WAN DMZ Domain & URL Filtering HTTPS IP Address Assignment: Static IP address assignment, internal DHCP server on LAN Mode of operation: Port and Network Address Translation (NAT), static routing NAT traversal (VPN pass-through) for IPSec, PPTP and L2TP VPNs Parental Control
Physical Specifications	Dimensions (h × w × d): 33 × 159 × 215 mm (1.3 × 6.3 × 8.5 in) Weight: .31 kg (.68 lb)
Front Panel LEDs	Cable upstream & downstream Internet & Power LAN 1, 2, 3 & 4, Voice 1 & 2 WiFi, WPS
Regulatory	CE, FCC, UL, C-TICK & A-TICK
Power	Adapter: 12V DC, 2A; plug is localized to country of sale Input Power: 30W On/Off button
