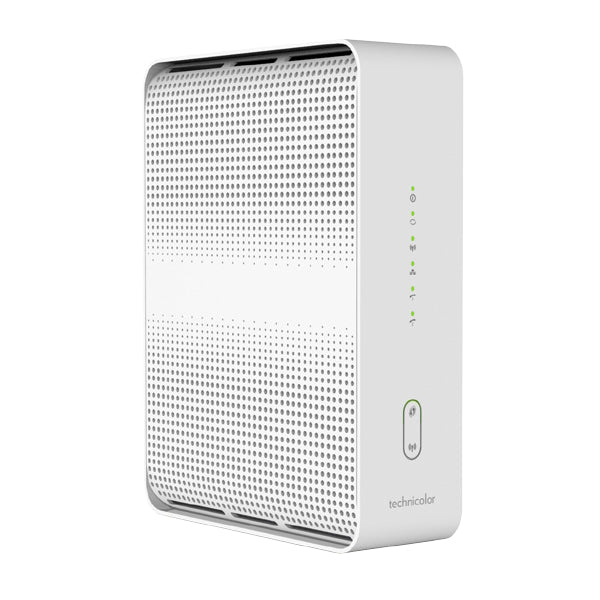

CGA2121 Wireless .11ac Gigabit-Class Cable Gateway with Voice

Technicolor · CGA2121

Condition

Refurbished

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
24x8 Channel Bonding
Dual-Band WiFi 5 (AC)
1.300 Mbps on 5Ghz 3x3 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The CGA2121 is a EuroDOCSIS/DOCSIS 3.0 cable gateway introducing the next generation in ultrahigh-speed data services. This new cable solution offers next to 8 bonded upstream channels, 24 bonded downstream channels for wired gigabit download speeds of up to 1.2 Gbps. Operators can now offer their customers even faster broadband access as well as demanding IPTV services. The dedicated applications processor and software execution environment turns the CGA2121 into powerful and reliable platform in the home, ready for demanding services and applications. The CGA2121 has an extended life cycle thanks to its extensive remote management capabilities, including the ability to smoothly upgrade itself.

RF Downstream
Downstream Modulation	64 / 256 QAM
Downstream Frequency Range	108 – 1002 MHz
Number of Downstream Channels	Up to 24 bonded
Maximum Downstream Rates	1335 Mbps theoretical (24 × 55.62 Mbps)
Capture Windows	1.2 GHz full band capture
Channel Bandwidth	8 MHz
Input Signal Level Range	−15 dBmV to +15 dBmV
Input Impedance	75 Ohm
RF Upstream
Upstream Modulation	QPSK, 8–128 QAM
Upstream Frequency Range	5 – 85 MHz
Number of Upstream Channels	Up to 8 bonded
Maximum Upstream Rates	245 Mbps theoretical (8 × 30.72 Mbps)
Channel Bandwidth	200, 400, 800 kHz; 1.6, 3.2 and 6.4 MHz
Output Signal Level	Up to +61 dBmV
Output Impedance	75 Ohm
Upstream Diagnostics Analyzer	Yes
Wi-Fi
Dual-band Wi-Fi	Full dual-band concurrent Wi-Fi access points, Wi-Fi certified 2.4 GHz (3×3) IEEE 802.11n AP 5.0 GHz (3×3) IEEE 802.11ac AP with IEEE 802.11ac compliant transmit beamforming
Wi-Fi Protected Setup (WPS)	Supported
Wi-Fi security	WPA2-Enterprise / WPA-Enterprise WPA2-Personal / WPA-Personal IEEE 802.1x port-based authentication with RADIUS client
Wi-Fi Multimedia (WMM)	Supported
Virtual APs	Up to 8 BSSIDs (virtual APs) per radio interface
Wi-Fi guest hotspot	Supported via SoftGRE standard
2×2 MIMO 2.4 GHz features	SGi STBC 20/40 MHz coexistence
3×3 MIMO 5 GHz Wi-Fi features	SGi STBC 20/40/80 MHz mode
Dynamic rate switching	Optimizes wireless performance
Radio channel selection	Manual / automatic selection
Hardware

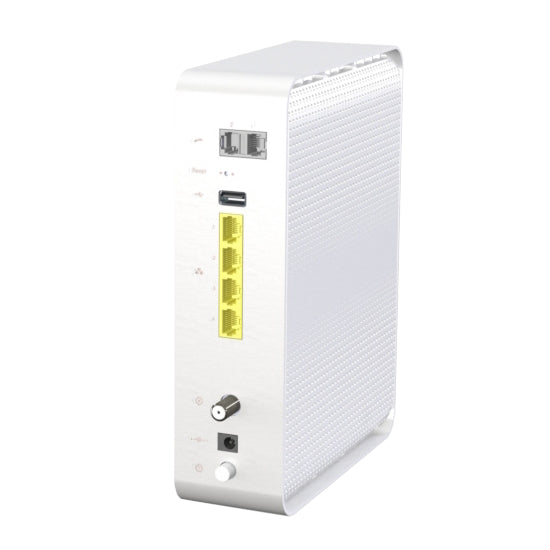

Interfaces WAN	1 F-type connector, external threaded
Interfaces LAN	4-port autosensing 10/100/1000 Base-T Ethernet LAN switch IEEE 802.11n 2.4 GHz IEEE 802.11ac 5 GHz 2 FXS POTS ports 1 USB 2.0 master port
Buttons & indicators	6 status LEDs Wi-Fi on/off button (with backlit LED) WPS button (with backlit LED) Reset button (recessed) Power button
Power input	DC jack
Power supply	12 VDC external PSU
AC voltage	100 – 240 VAC, 50 – 60 Hz (switched mode power supply)
Operating temperature	0° – 40° C (32° – 104° F)
Operating humidity	20% – 90% RH non-condensing
Storage temperature	-20° – 70° C (-4° – 158° F)
