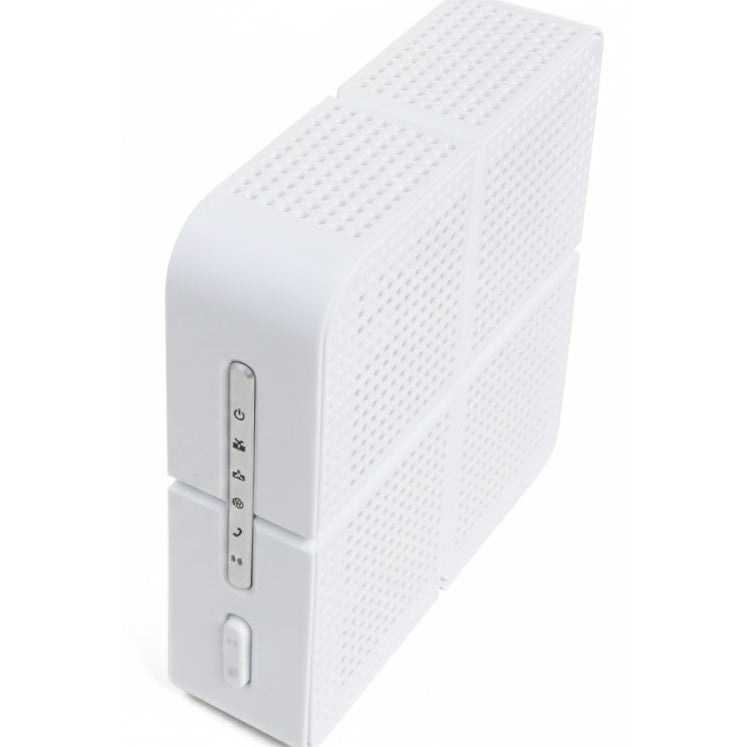

CH7284E EuroDOCSIS 3.0 16X4 Wireless Voice Gateway

The CH7284E Wireless Gateway combines high-speed Internet access, networking, and computer security for a home or small-office LAN. It offers the following features:

• Combination of five separate products in one compact unit — an EURO DOCSIS® 3.0 cable modem, IEEE 802.11b/g/n/ac wireless access point, Ethernet 10/100/1000 Base-T connections, VoIP Internet telephone connections, and firewall.

• An integrated high-speed cable modem for continuous broadband access to the Internet and other online services with much faster data transfer than traditional dial-up or ISDN modems.

• Advanced firewall for enhanced network security from undesired attacks over the Internet. It supports stateful-inspection, intrusion detection, DMZ, denial-of-service attack prevention, and Network Address Translation (NAT).

• One broadband connection for up to 253 computers to surf the web; all computers on the LAN communicate as if they were connected to the same physical network.

• Two 10/100/1000Base-T Ethernet uplink ports supporting half- or full-duplex connections with auto-MDIX capability.

• An IEEE 802.11n/ac wireless access point to enable laptop users to remain connected while moving around the home or small office or to connect desktop computers without installing network wiring. Depending on distance, wireless connection speeds can vary.

• CH7284E wireless function supports Wi-Fi 2.4G/5G dual-band mode.

• A secure Wireless Fidelity (Wi-Fi) broadband connection for Wi-Fi enabled devices on your network, such as your mobile, laptops, tablet, printers, PDAs, and desktops.

• Routing for a wireless LAN (WLAN) or a wired Ethernet LAN; you can connect more than two computers using hubs and/or switches.

• A built-in DHCP server to easily configure a combined wired and/or wireless Class C private LAN.

• Virtual private network (VPN) pass-through operation supporting IPSec, PPTP, or L2TP to securely connect remote computers over the Internet.

• CH7284E Configuration Manager (CMGR) which provides a graphical user interface (GUI) for easy configuration of necessary wireless, Ethernet, router, DHCP, and security settings.
