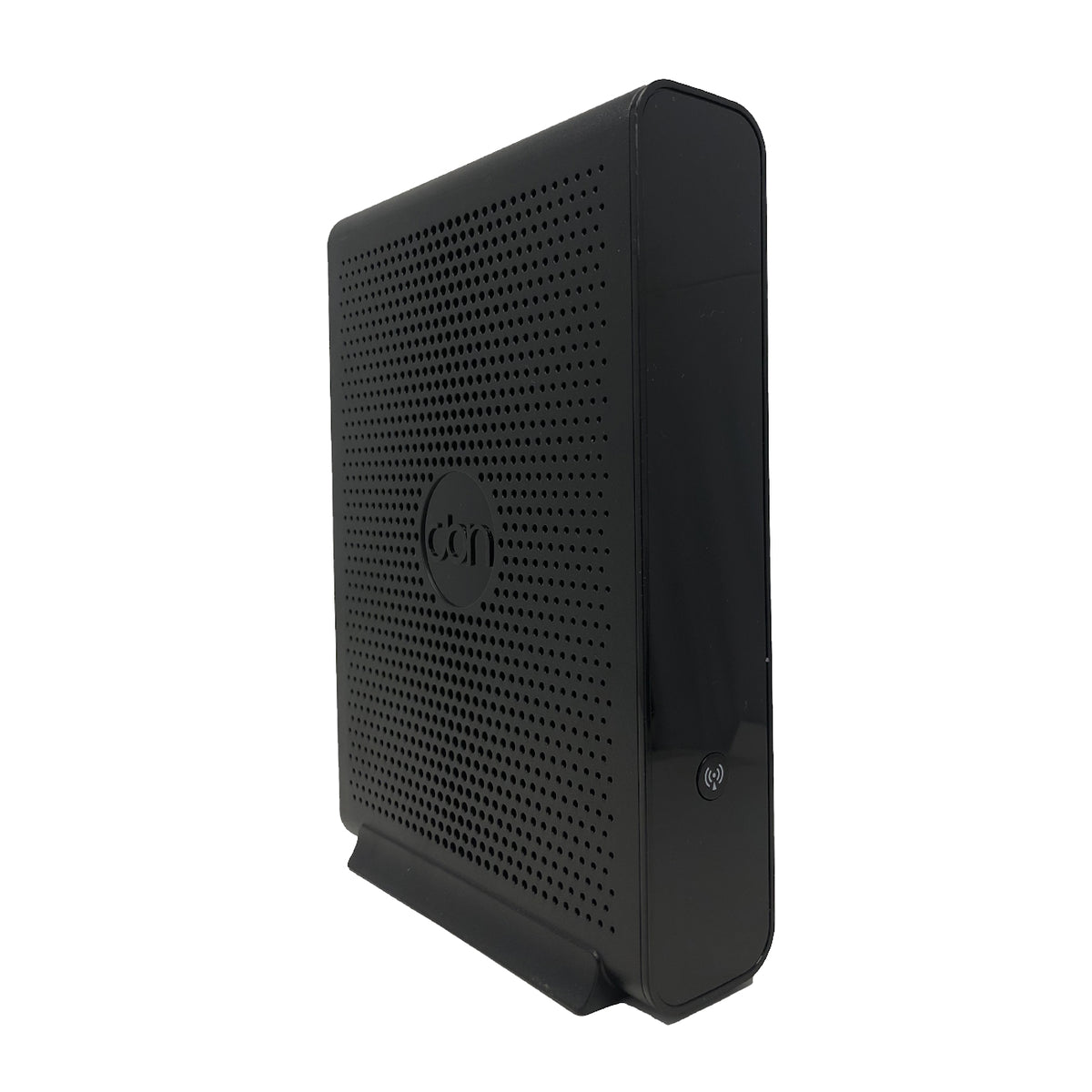

CH7466CE DOCSIS / EuroDOCSIS 3.0 Wireless Voice Gateway
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access24x8 Channel Bonding
Dual-Band WiFi 5 (AC)
1.300 Mbps on 5Ghz 3x3 MIMO
450 Mbps on 2.4Ghz 3x3 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The Compal Broadband Networks’ CH7466CE Docsis / EuroDOCSIS 3.0 Wireless Voice Gateway is a fully integrated all-in-one home networking, communication solution that combines the functionality of a Docsis / EuroDOCSIS 3.0 voice Gateway, four-port 10/100/1000 Gigabit Ethernet with advanced firewall, and an dual band concurrent 3x3 2.4GHz 802.11n and 3x3 5GHz 11ac wireless access point in one convenient package.
The CH7466CE is the perfect broadband solution for the home, home office, or small business; allowing users to create a customer home network to share a single ultra-broadband connection, files, and networked peripherals, using wired or wireless connectivity. Cost-effective, efficient, and secure the CH7466CE enables users to maximize the potential of their existing resources, while benefiting from next generation high-bandwidth data and IP voice services.
| GENERAL |
Standards: Docsis / EuroDOCSIS 3.0, Packet Cable 2.0 Coax: Female F-Connector, 75 ohms Data Ports: Four 10/100/1000 RJ-45 Ethernet Ports with Auto-MDIX Wireless Interface: 802.11 a/b/g/n/ac Wi-Fi Dimensions: 220×160×45 mm Regulatory: RoHS compliant, CE Input Voltage: 12VDC |
| ENVIRONMENTAL |
Operating Temperature: 32 °F to 104 °F (0 °C to 40 °C) Storage Temperature: −22 °F to 158 °F (−30 °C to 70 °C) Operating Humidity: 5 to 95% R.H. (non-condensing) |
| NETWORK |
Gateway: DHCP, NAT, VPN tunneling; static routing and dynamic IP routing (RIPv1, RIPv2); SPI firewall with DoS protection and intrusion prevention; port, packet, and URL keyword filtering; full suite of ALGs; UPnP IGD 1.0; L2TPv3, L2VPN, eRouter Wi-Fi: 3×3 2.4 GHz wireless access point 3×3 5 GHz wireless access point 802.11a/b/g/n/ac Wi-Fi, WDS bridging, 802.11e WMM QoS 802.11e WMM power save/U-APSD (Unscheduled-Automatic Power Save Delivery) WEP-64/128, WPA, WPA2, TKIP, AES, 802.1x, 802.11i (pre-auth) Wi-Fi Pairing User-friendly WPS for connecting compatible devices |
| VOICE |
Protocol: MGCP/NCS including configurable IPsec encryption; configurable to support RFC 2833 event signaling; software upgradeable to support SIP CODECs: 64 kbps PCM, µ-law or A-law companding; G.711, G.726, G.728, G.729, G.723.1, iLBC, V18/32 |
CH7466CE
