CVE-30360 DOCSIS/EuroDOCSIS 3.0 eMTA WIFI GATEWAY
Hitron Technologies · CVE-30360
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access8x4 Channel Bonding
Single-Band WiFi 4 (N)
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204
Description
Technical Specifications

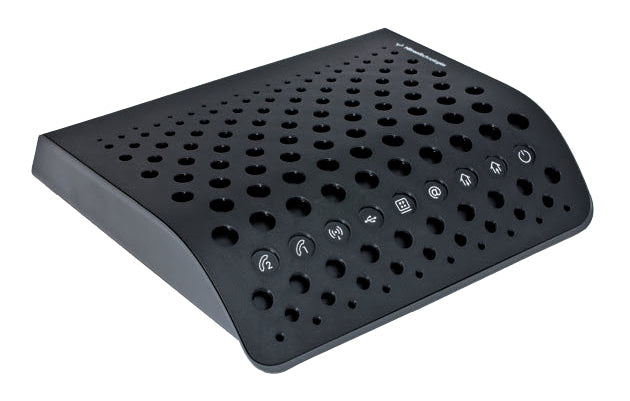

The Hitron CVE-30360 delivers speeds of up to 400Mbps (8x4) with eight bonded downstream channels over its DOCSIS interface. The integrated four-port Gigabit Ethernet Switch and Wi-Fi 802.11n Access Point enable easy home networking.
| General Specifications | |
|---|---|
| Protocol Support |
DOCSIS/EuroDOCSIS 1.1/2.0/3.0 PacketCable/EuroPacketCable 1.5 SNMP v1, v2c, v3 IGMP DLNA and UPnP SIP & MGCP |
| Connectivity |
RF F-type female 75Ω connector 4× RJ-45 Ethernet port 10/100/1000 Mbps 1× USB 2.0 Type-A connector with Host interface 2× FXS RJ-11 telephony ports |
| Management |
Web-based GUI control configuration and management Easy-to-read LEDs clearly display network status and activity Power-on self diagnostic Hitron proprietary MIBs for extended support on DOCSIS, EMTA, SIP, Router and WiFi Management |
| Telephony |
Caller ID (DTMF/FSK) T.38 Fax Relay Simultaneous telephony on both RJ-11 ports G.165/G.168 Echo cancellation up to 16 ms Codecs: G.711, G.723.1, G.729A/E, G.722 |
| Router Function |
MAC address filtering (IPv4/IPv6) IP source/destination address filtering (IPv4/IPv6) DHCP, TFTP and ToD clients (IPv4/IPv6) DHCP server supports RFC 1541 (IPv4) DHCPv6 obtains prefix from DHCPv6 server through prefix delegation Firewall with stateful inspection (IPv4/IPv6) Hacker intrusion prevention and detection Application content filtering (IPv4/IPv6) VPN termination and pass through (IPv4/IPv6) Complete NAT software implemented as per RFC 1631 with port and address mapping (IPv4) DSLite support for IPv4 in-home support with IPv6 MSO backbone 6RD support for quick IPv6 deployment over IPv4 backbone |
| Wireless |
802.11b/g/n 2T2R 2.4 GHz with 300 Mbps PHY data rate 20/40 MHz channel bandwidth Up to 8 SSIDs Security: WEP-64/WEP-128, WPA-PSK/WPA2-PSK (TKIP/AES), WAPI QoS: WMM/WMM-PS WPS (Wi-Fi Protected Setup) PBC, PIN |
| Mechanical |
9 status LEDs (Power, DS, US, Status, Ethernet, USB, Wi-Fi, Line 1/2) Factory reset button Dimensions: 227 mm (W) × 52 mm (H) × 208 mm (D) Weight: 600 g ± 10 g |
| Environmental |
Power: 100 – 120 VAC 50/60 Hz, Output 12 VDC, 2 A Power consumption: 9 W (standby), 16 W (operation) Operating temperature: 0 °C (32 °F) – 40 °C (104 °F) Operating humidity: 10 % – 90 % (non-condensing) Storage temperature: -40 °C (-40 °F) – 70 °C (158 °F) Surge protection: RF input sustains at least 3 kV, Ethernet RJ-45 sustains at least 6 kV |
All technical data, specifications and descriptions published on this website are provided for general information purposes only. We make reasonable efforts to ensure that the information is accurate and up to date; however, no guarantee, warranty or representation (express or implied) is given that any information is complete, correct, current or error-free. Images are for illustration purposes only, actual product may not include all parts visible.
