D5 UEQ AC Power Supply Module - 500W
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The Arris D5 CPCI-AC-6U is the redundant AC power supply unit (PSU) module designed for the Arris D5 Universal Edge QAM (UEQ) chassis.
It converts standard AC mains power into the DC voltages required by the D5's internal components (QAM cards, WAN modules, and controllers) via the CompactPCI (cPCI) backplane.
Form Factor: 6U High, CompactPCI (cPCI) standard compliant (PICMG 2.11).
Input Voltage: Universal AC Input (typically 90–264 VAC, 47–63 Hz), allowing global compatibility without manual switching.
Redundancy: Hot-swappable and supports N+1 redundancy (usually configured with dual PSUs in a single chassis) to ensure uninterrupted operation if one unit fails.
| INPUT | |
|---|---|
| Input—AC Models | 90–264 VAC, 47–63 Hz |
| Power Factor | >0.90/0.95 typical @ 110/220 VAC (full load) |
| Hold-Up Time | 16 ms minimum (full load) |
| Inrush Current | <35/65 A @ 110/230 VAC |
| OUTPUT | |
| Line Regulation | ±0.5% for minimum to maximum voltage input |
| Transient Response | >0.90/0.95 typical @ 110/220 VAC (full load) |
| Over-Voltage Protection | 110–125% of V1/V2/V3 (latched shutdown) |
| Overload Protection | V1 and V2: 125% / V3 and V4: 200% |
| Load Regulation | V1 and V2: ±1% maximum |
| V3 and V4: ±5% maximum | |
| Min Load Requirement | None |
| Turn-On Delay | 2 seconds maximum |
| Initial setting Accuracy | ±1% |
| Ripple/Noise | V1 and V2: 60 mV |
| V3 and V4: 120mV (20M Hz bandwidth) | |

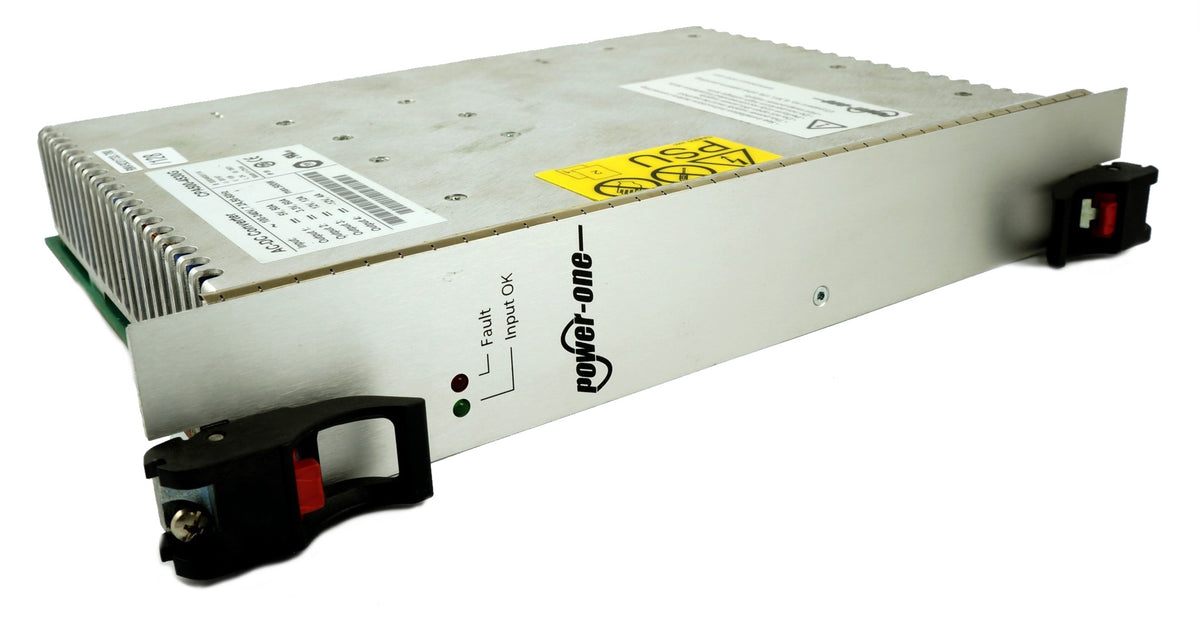

D5 AC PSU 500W
