D5 UEQ AC Power Supply Module - 600W

Name: D5 UEQ AC Power Supply Module - 600W
Brand: Arris
SKU: 56231464173916

Arris · D5 AC PSU 600W

Refurbished

On Request

1-Year Warranty

30-Day Returns

Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

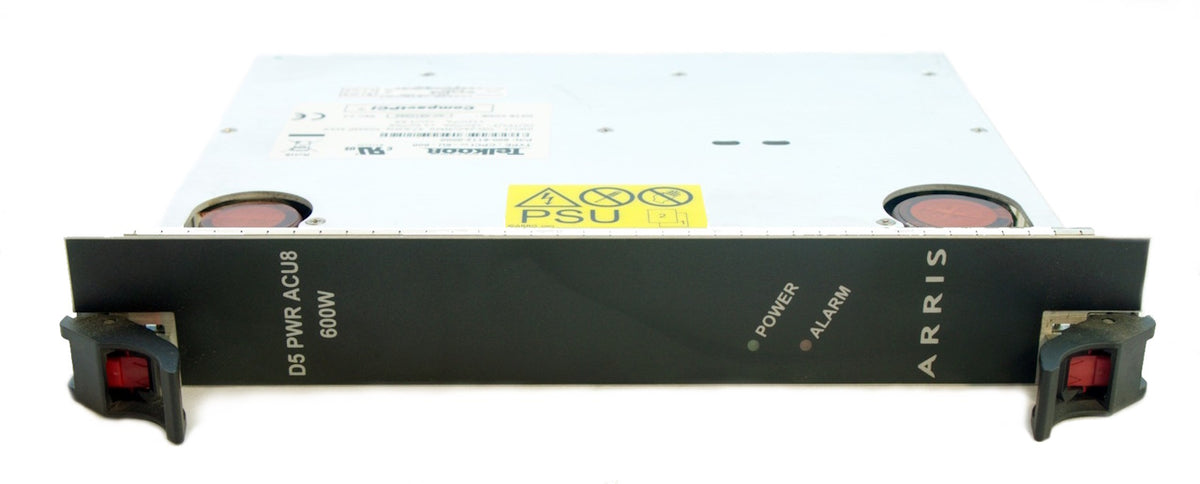

The Arris D5 CPCI-AC-6U is the redundant AC power supply unit (PSU) module designed for the Arris D5 Universal Edge QAM (UEQ) chassis.

It converts standard AC mains power into the DC voltages required by the D5's internal components (QAM cards, WAN modules, and controllers) via the CompactPCI (cPCI) backplane.

Form Factor: 6U High, CompactPCI (cPCI) standard compliant (PICMG 2.11).

Input Voltage: Universal AC Input (typically 90–264 VAC, 47–63 Hz), allowing global compatibility without manual switching.

Redundancy: Hot-swappable and supports N+1 redundancy (usually configured with dual PSUs in a single chassis) to ensure uninterrupted operation if one unit fails.

INPUT
Input—AC Models	90–264 VAC, 47–63 Hz
Power Factor	>0.90/0.95 typical @ 110/220 VAC (full load)
Hold-Up Time	16 ms minimum (full load)
Inrush Current	<35/65 A @ 110/230 VAC
OUTPUT
Line Regulation	±0.5% for minimum to maximum voltage input
Transient Response	>0.90/0.95 typical @ 110/220 VAC (full load)
Over-Voltage Protection	110–125% of V1/V2/V3 (latched shutdown)
Overload Protection	V1 and V2: 125% / V3 and V4: 200%
Load Regulation	V1 and V2: ±1% maximum
	V3 and V4: ±5% maximum
Min Load Requirement	None
Turn-On Delay	2 seconds maximum
Initial setting Accuracy	±1%
Ripple/Noise	V1 and V2: 60 mV
	V3 and V4: 120mV (20M Hz bandwidth)
