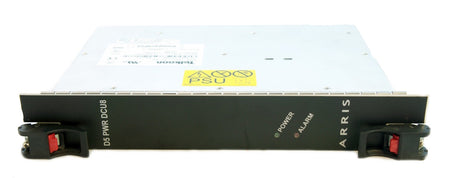

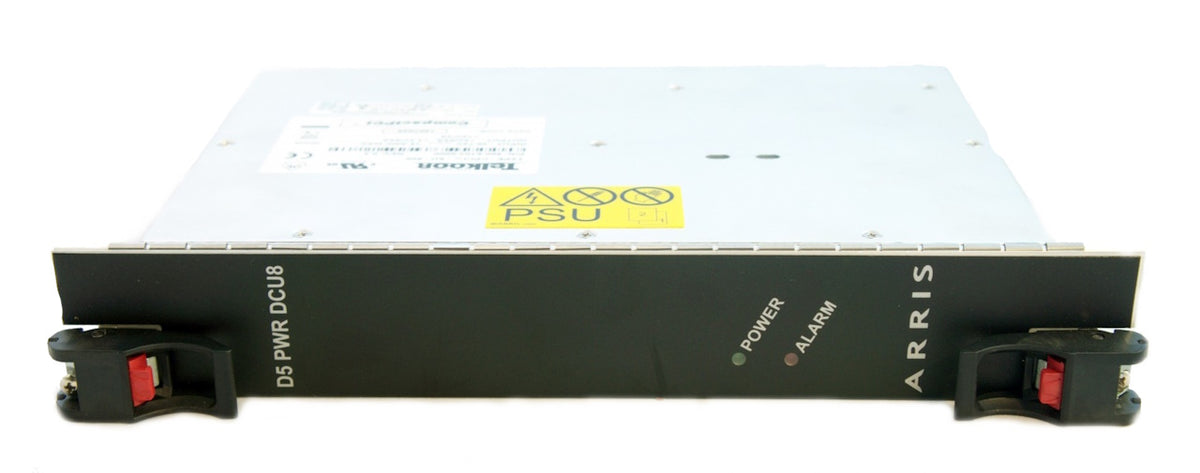

D5 UEQ DC Power Supply Module - 500W

Arris · D5 DC PSU 500W

Condition

Refurbished

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The Arris D5 CPCI-DC-6U is the redundant DC power supply unit (PSU) module designed for the Arris D5 Universal Edge QAM (UEQ) chassis.

It is specifically built for cable headend and hub sites that utilize -48 VDC station power (battery plants) rather than commercial AC power.

Key Specifications
Form Factor: 6U High, CompactPCI (cPCI) standard compliant (PICMG 2.11).

Input Voltage: -48 VDC nominal. It typically operates within a range of -36 VDC to -72 VDC to accommodate battery discharge curves.

Redundancy: Hot-swappable and supports N+1 redundancy (usually 2 units per chassis), allowing for seamless failover if a power feed or module fails.

INPUT
Power Factor	>0.90/0.95 typical @ 110/220 VAC (full load)
Hold-Up Time	16 ms minimum (full load)
Inrush Current	<35/65 A @ 110/230 VAC
Input—48 V Input Models	36–72 VDC Input range
OUTPUT
Line Regulation	±0.5% for minimum to maximum voltage input
Transient Response	>0.90/0.95 typical @ 110/220 VAC (full load)
Over-Voltage Protection	110–125% of V1/V2/V3 (latched shutdown)
Overload Protection	V1 and V2: 125% / V3 and V4: 200%
Load Regulation	V1 and V2: ±1% maximum
	V3 and V4: ±5% maximum
Min Load Requirement	None
Turn-On Delay	2 seconds maximum
Initial setting Accuracy	±1%
Ripple/Noise	V1 and V2: 60 mV
	V3 and V4: 120mV (20M Hz bandwidth)
