D5 Universal Edge QAM Chassis
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.

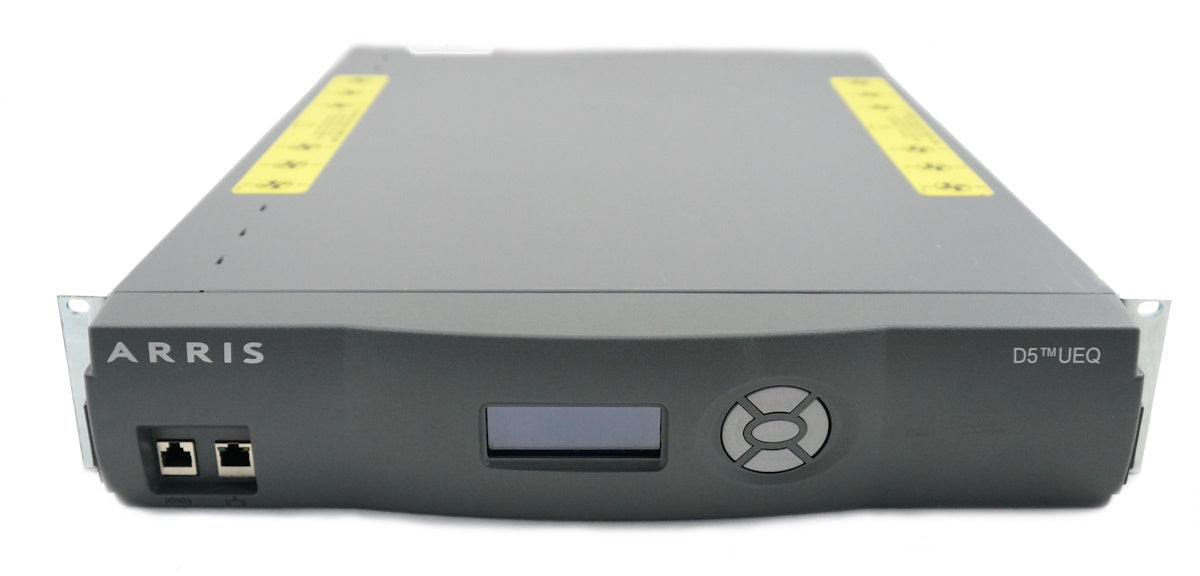

The ARRIS D5 Universal Edge QAM (UEQ) is a unique class of IP edge network device that enables delivery of a wide variety of multimedia content in a redundant, modular, and cost-effective package. It supports a complete QAM-Sharing solution with simultaneous delivery of any combination of Video-On-Demand, Digital Broadcast, Switched Digital Video (SDV) Services, and DOCSIS downstream data using the Modular Cable Modem Termination System (M-CMTS™) architecture. Operators are saved from the capital and operational expense burden of having to replace or retrofit non-compliant Edge QAMs when transitioning to advanced multimedia services. The ARRIS D5 UEQ offers extensive, industry-leading, remote or locally-attached graphical and command line tools for operations management. All management options provide complete access control to all elements of the D5. For those operators seeking additional user-level access control, Radius and TACACS+ authentication is offered as well.
| Environmental | |
|---|---|
| Operating Temperature (°F) | 32 to 122 (0 to 50 Ambient) |
| Storage Temperature (°F) | -40 to 158 (-40 to 70) |
| Relative Humidity | up to 95% (Non-condensing) |
| Electrical/Mechanical | |
| Input Voltage AC | 90-256 Vac, 50-60 Hz |
| Input Voltage AC | -40 to -56 Vdc |
| Maximum Power Consumption (fully loaded) | < 540 Watts |
| Dimensions (W x H x D) in (cm) | 19 x 3.5 x 24 (48 x 8.9 x 61) |
| Fully Loaded Weight lbs (kg) | 50 (27.7) |
| WAN Modules | |
| WAN Module | Single or Dual |
| Standard Gigabit Ethernet SFP interfaces per WAN Module | 4. All Gigabit Ethernet interfaces can be active simultaneously |
| Total Ingress (IEEE802.3z or IEEE802.3ab) | 8 Gb/sec. Optical SFP or 1000BaseT options |
| Gigabit Ethernet Redundancy | 2X (1 + 1), 2 + 1, 3 + 1 |
| IP Unicast and Mulicast (IGMPv2/3) UDP encapsulated packets | 1 to 7. IGMPv2/3 with Source Specific Multicast |
| QAM Module | |
| QAM Module Type 8DX4 | up to 6 Modules per Chassis |
| RF Connectors/Channels per RF output port | External "F" type connectors, 75 ohm (ISO-169-24). 6 block-converted adjacent channels per RF output port. |
| RF output ports per module | 4 |
| Frequency Range | 54-1002 MHz |
| Minimum Frequency Step | 62.5 KHz |
| Modulation Type | 64 and 256 QAM |
| Single Carrier Power per RF | 51 to 60 dBmV |
| Dual Carrier Power per RF | 47 to 56 dBmV |
| Quad Carrier Power per RF | 43 to 55 dBmV |
| Hex Carrier Power per RF | 41 to 53 dBmV |
| Octal Carrier Power per RF | 40 to 52 dBmV |
| Power Level Step Size | 0.1 dB |
| Output Return Loss | >15 dB |
| BER | 1 x 10^-12 |
| MER (equalized) | >46 dB |
| MER (un-equalized) | >42 dB |
| Channel Bonding | Single (1), Dual (2), Quad (8), carriers per RF output port |
| RF block muting | >60 dB |
