D5 QPM 8DX4 Universal Edge QAM Module

Arris · D5 8DX4
Condition
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

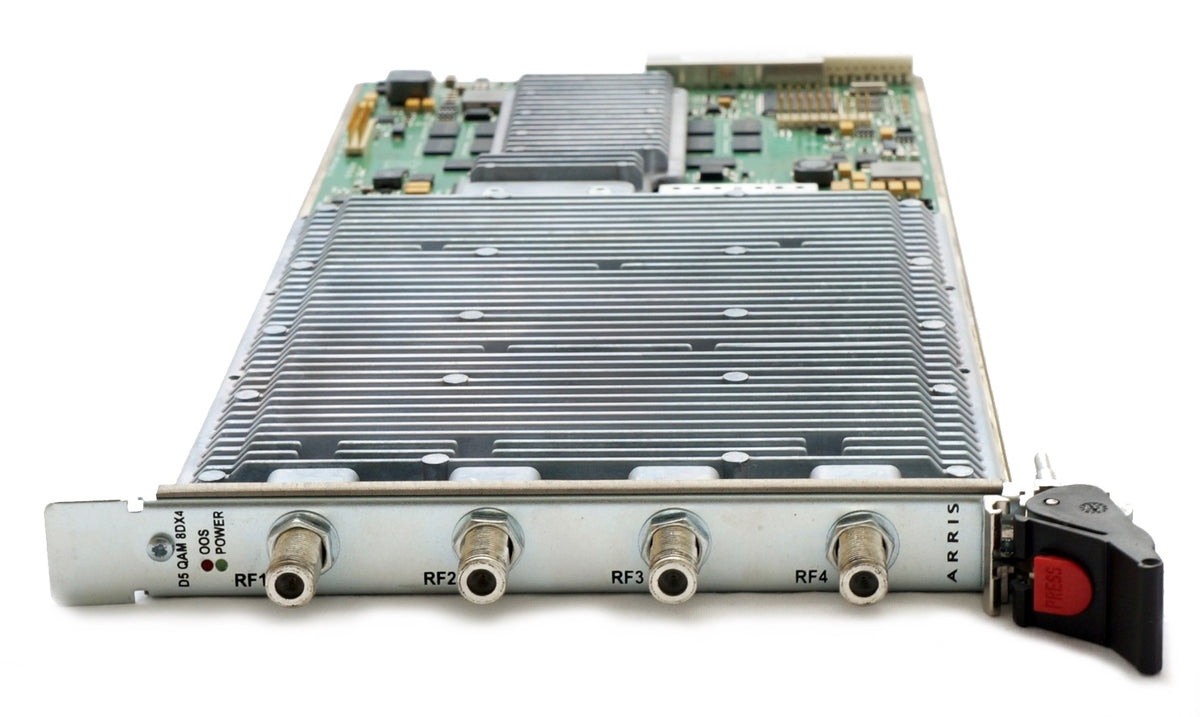

The QPM 8DX4 is a high density QAM module used in the ARRIS D5 Universal Edge QAM (UEQ). It can be used for multiple applications, including Switched Digital Video (SDV), Video On Demand (VOD), Digital Broadcast and DOCSIS Modular CMTS (M-CMTS TM). The module has 4 RF ports, each capable of providing up to 8 QAM channels (ITU-T Rec, J.83 Annex A/B/C).

  • High Density QAM module for the D5 UEQ platform
  • Frequency Range: 54 MHz to 1 GHz
  • 4 RF ports, each supporting up to 8 contiguous QAM channels
    • – 32 QAM channels per module
    • – 192 QAM channels per D5 UEQ fullfill chassis
    • – Supports ANNEX A/B/C
  • Exceeds DOCSIS 3.0 DRFI Specifications
  • Simultaneous support of multiple Services
    • – Within a QAM Carrier
    • – Within a bonded QAM channel group
  • Arbitrary QAM channel muting allows non-contiguous channel assignments
  • FPGA-based architecture allows for future enhancements
  • True diagnostic capability of the QAM modulation process via advanced demodulator features which allow program stream analysis of a selected program
QAM Module
QAM Module Type 8DX4 up to 6 Modules per Chassis
RF Connectors/Channels per RF output port External "F" type connectors, 75 ohm (ISO-169-24). 6 block-converted adjacent channels per RF output port.
RF output ports per module 4
Frequency Range 54-1002 MHz
Minimum Frequency Step 62.5 KHz
Modulation Type 64 and 256 QAM
Single Carrier Power per RF 51 to 60 dBmV
Dual Carrier Power per RF 47 to 56 dBmV
Quad Carrier Power per RF 43 to 55 dBmV
Hex Carrier Power per RF 41 to 53 dBmV
Octal Carrier Power per RF 40 to 52 dBmV
Power Level Step Size 0.1 dB
Output Return Loss >15 dB
BER 1 x 10^-12
MER (equalized) >46 dB
MER (un-equalized) >42 dB
Channel Bonding Single (1), Dual (2), Quad (8), carriers per RF output port
RF block muting >60 dB
