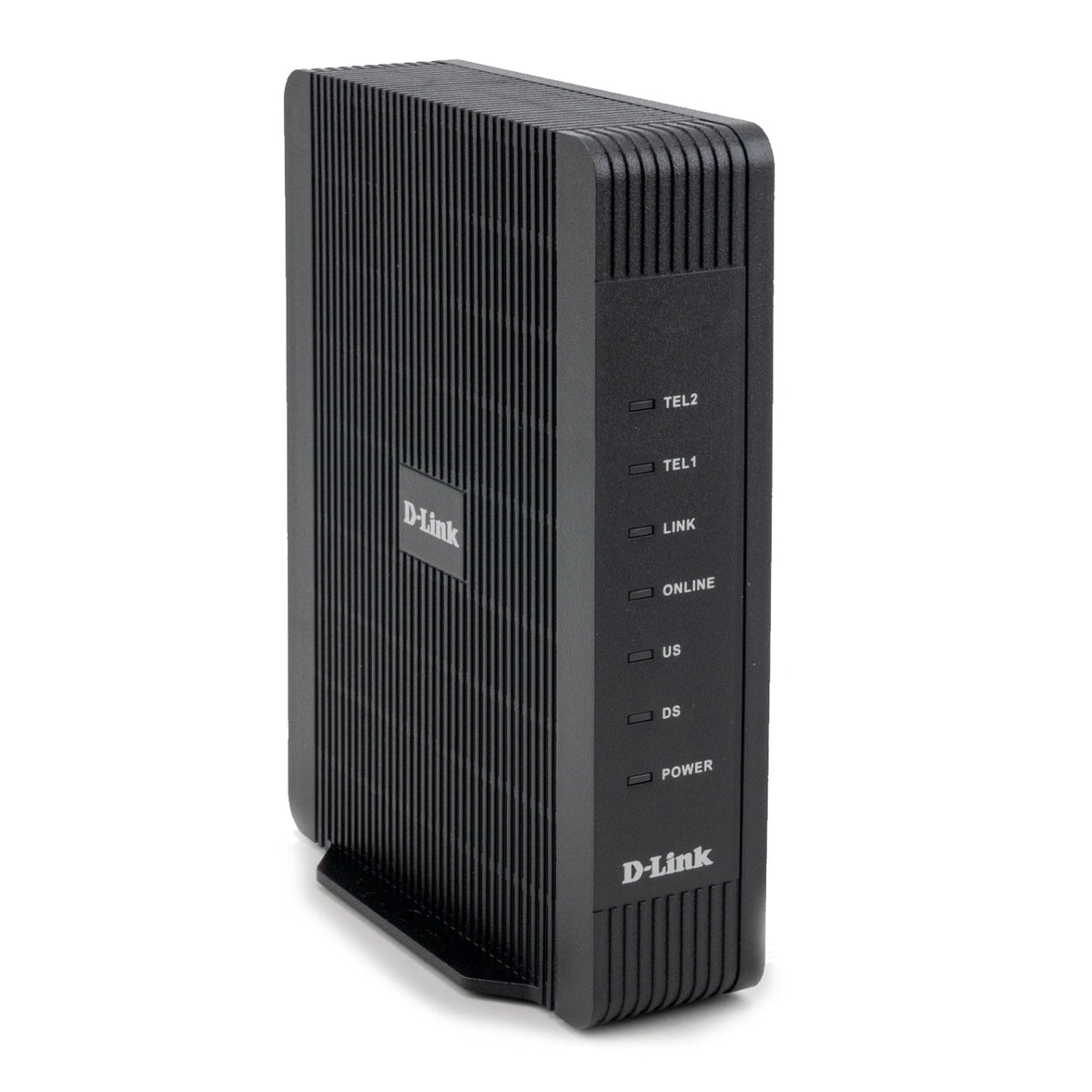

DCM-3012G DOCSIS 3.0 24x8 EMTA Modem

D-Link · DCM-3012G

Condition

Surplus New

Feature Highlights

DOCSIS 3.0 WAN Access
24x8 Channel Bonding
1 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

Hardware

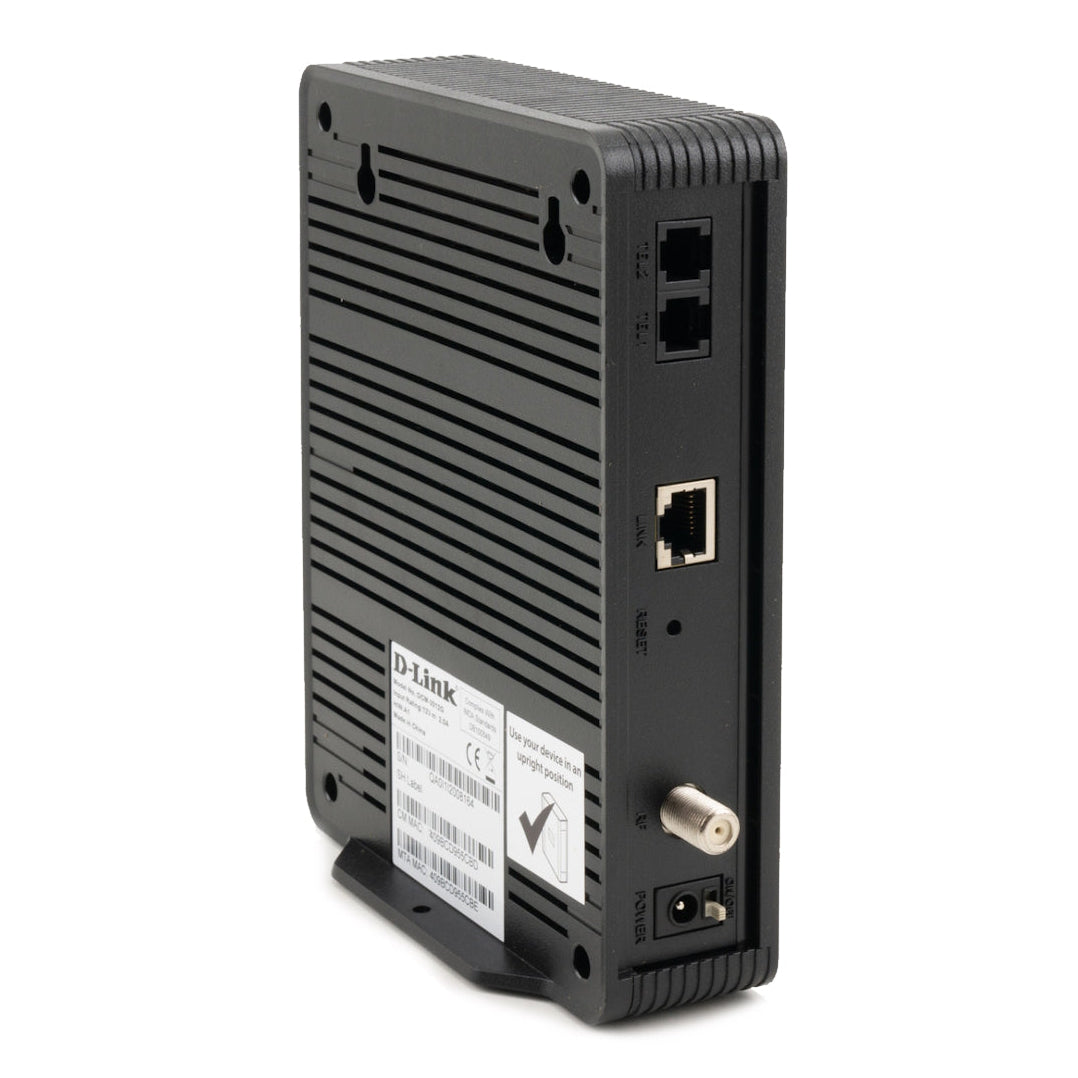

Interface	F-type female WAN port; 1× Gigabit LAN ports; 2× RJ-11 telephony ports
Button	Reset
Power Supply	DC 12V/2A
Dimension (W×L×H)	172 × 132 × 39.4 mm
Weight	405 g ± 10 g (device only)
RF Downstream
Frequency Range	108 ~ 1002 MHz
Bonded Channels	Up to 24
Capture Bandwidth	1 GHz
Carrier Bandwidth	DOCSIS: 6 MHz; EuroDOCSIS: 8 MHz
Modulation	64, 256 or 1024 QAM
Data Rate	DOCSIS: up to 900 Mbps; EuroDOCSIS: 1.2 Gbps
Input Signal Level	−15 dBmV ~ +15 dBmV
RF Upstream
Frequency Range	5 ~ 85 MHz
Bonded Channels	Up to 8
Modulation	256 QAM, 128 QAM (S-CDMA only), 64 QAM, 32 QAM, 16 QAM, 8 QAM, QPSK
Data Rate	Up to 200 Mbps
Output Power Level	+18 dBmV ~ +55 dBmV
Telephony
Supervisory Voltage	48V DC nominal
Ringing Load Capacity	10 REN total; 5 per line
Provisionable High Loop	Yes
Environmental
Operating Temperature	0 ~ 40°C
Storage Temperature	−10 ~ 60°C
Operating Humidity	5% ~ 95% non-condensing
