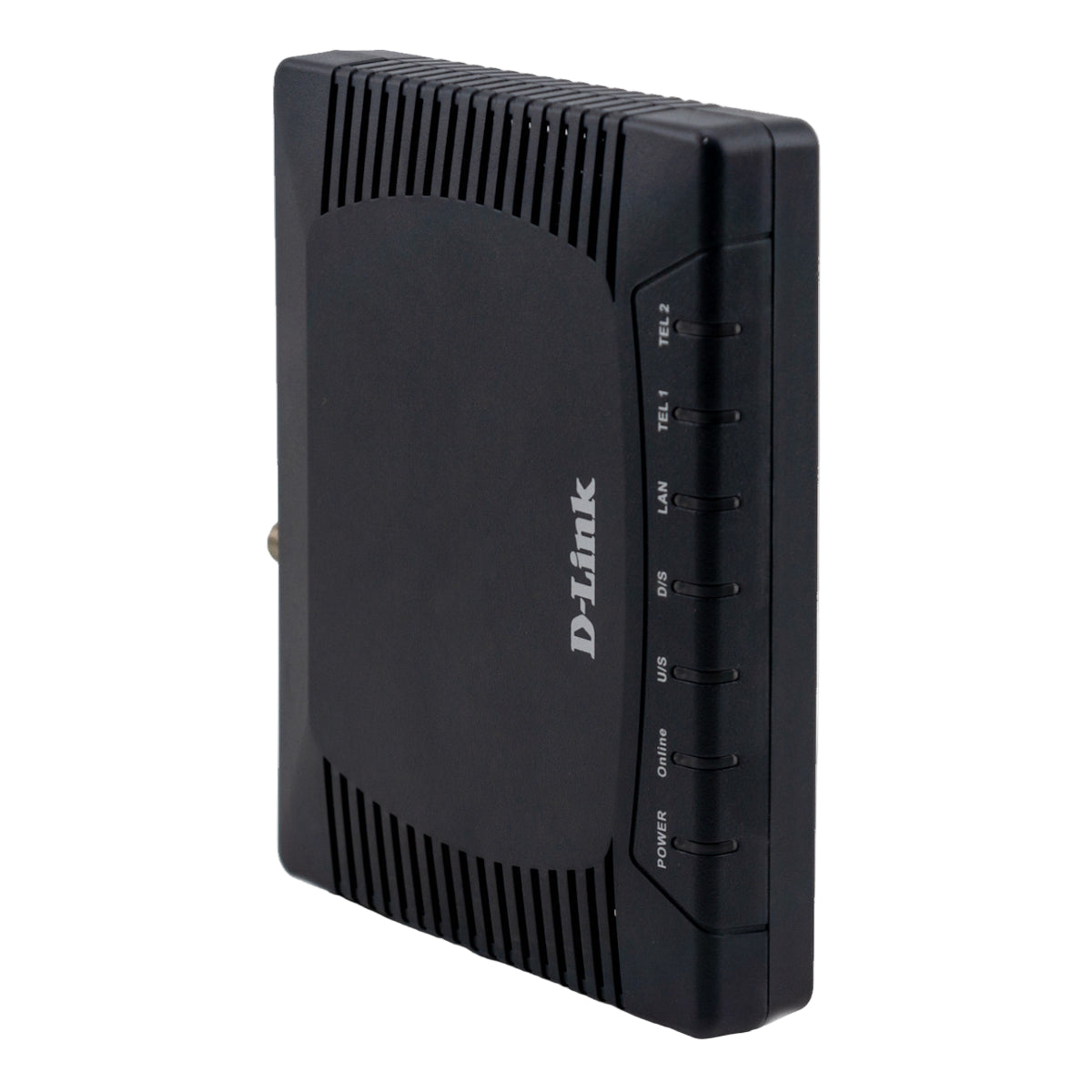

DCM-712 PacketCable 1.5 and DOCSIS/EURODOCSIS 3.0 Compliant Embedded MTA

D-Link · DCM-712

Condition

Surplus New

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
1 x Gigabit Ethernet LAN
2 x FXS Phone

Quantity

1-Year Warranty

30-Day Returns

Essential Support

Certified Pre-Owned

Our refurbished equipment comes from enterprises upgrading their infrastructure, often because they outgrew the capacity or simply had the budget to spend.
Every product must pass our strict Quality Assurance standards, undergoing a series of tests and inspections before being resold.
By choosing refurbished hardware, you aren't just saving money, you are actively participating in the circular economy and improving your sustainability.

Unused Pre-Owned

Surplus New equipment consists of items that previous owners kept in stock as spares or overbought, meaning they have never been used.
While the original packaging might be opened or missing, every product is carefully inspected to verify its pristine, unused condition before being resold.
By choosing surplus new hardware, you aren't just saving money, you are actively participating in the circular economy and improving your sustainability.

Please feel free reach out to us with any questions.

Email +36 70 625 7203

Share on Facebook
Share on LinkedIn

Description

Technical Specifications

Leverage from edge technology DOCSIS3.0 / EURODOCSIS3.0, DCM-712 can adopt dynamic bandwidth adjustment by providing various set of downstream and upstream combination up to cable plant requirement, such as 4 D/S with 4 U/S or 8 D/S with 4 U/S… etc.

Not only DCM-712 can provide ultra data bandwidth via the RF input, meanwhile, it also provides Voice over IP and Gigabit Ethernet Residential Gateway functionality integrated with Cable Modem which allows you implement your VoIP phone call directly through Cable Modem Broadband Network service with its built-in PacketCable1.5 and DOCSIS/EURODOCSIS 3.0 compliant specification.

Equipped with two standard phone ports, DCM-712 could easily provide end-users low-cost, long-distance calling, faxing, and a host of advanced services. And with the integration of Gigabit Ethernet port, the DCM-712 could also be used as a 10/100/1000bps wire-speed Cable Modem Residential Gateway in your home or small office. The ability to route data information into your broadband network could help you easily extend your local network and carries more applications.

The DCM-712 is MGCP/SIP compliant product and has been tested with most major VoIP Softswitch vendors’ Call Management systems. And it also has voice quality support that includes hardware-based Quality of Service (QoS), voice compression (popular voice CODECs G.711), echo cancellation, dynamic latency (jitter) buffers, silence suppression, and comfort noise generation.

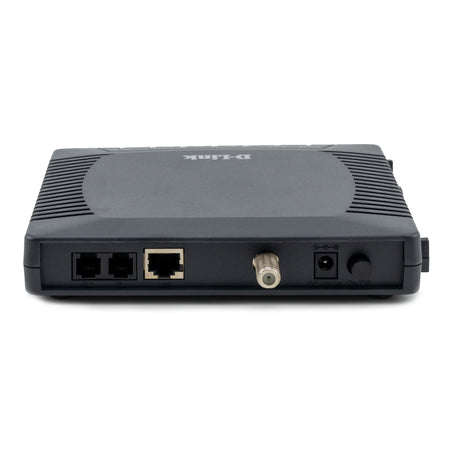

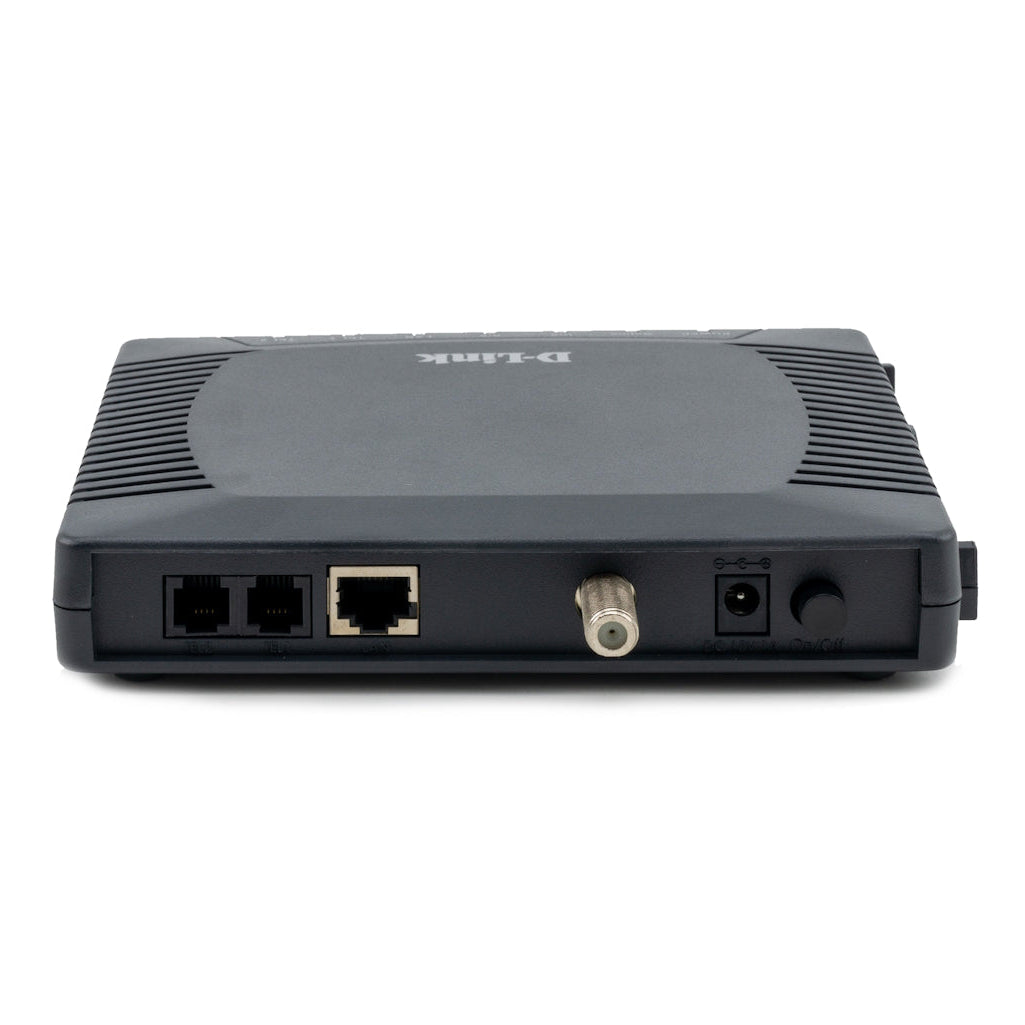

Physical Interface	• To WAN: F-type female 75 ohm connector • To Telephone: RJ-11 Telephone Socket × 2 • To LAN: GbE Ethernet 10/100/1000 Mbps × 1 • To Power: 12V DC / 1A
Standard Support	• DOCSIS/EURODOCSIS 1.0/1.1/2.0/3.0 • PacketCable 1.0/1.1/1.5
Downstream / Receiver	• Demodulation: 8 Downstream with up to 1024QAM • Data Rate: – 30 Mbps (64QAM), 43 Mbps (256QAM) DOCSIS – 41 Mbps (64QAM), 55 Mbps (256QAM) EuroDOCSIS – Up to 320 Mbps by 8 channels bonding • Frequency Range: – 88 MHz to 1002 MHz DOCSIS – 108 MHz to 1002 MHz EuroDOCSIS • Bandwidth: – 6 MHz DOCSIS – 8 MHz EuroDOCSIS • Input Power: –15 dBmV to +15 dBmV
Upstream / Transmitter	• Modulation: QPSK, 8/16/32/64/128/256QAM, 4 U/S • Data Rate: 30 Mbps (TDMA), 35 Mbps (S-CDMA), 30 Mbps × 4 U/S channel • Frequency Range: – 5 ~ 42 MHz DOCSIS – 5 ~ 65 MHz EuroDOCSIS • Bandwidth: – 200 kHz, 400 kHz, 800 kHz, 1600 kHz (TDMA) – 1600/3200/6400 kHz (S-CDMA) • Output Signal Level: – +8 to +58 dBmV (QPSK) – +8 to +54 dBmV (64QAM) – +8 to +53 dBmV (S-CDMA)
Voice / Fax	• Audio Codec: G.711 • VAD • CNG • Echo cancellation: G.165/G.168 up to 16 ms • Packet Tone: DTMF generation / Call Progress Generation / Custom Tone • Call discrimination: Fax and Modem Detection
Network Protocol	• Network protocol: IP / TCP / UDP / ARP / ICMP / DHCP / TFTP / SNMP / HTTP • Routing • Internet Sharing: NAT / NAPT / DHCP server / DNS relay • Application protocol: SNMP v1/v2/v3 • DHCP server: LAN DHCP service with address & WAN connection • DHCP client: Auto-assign IP & DNS • DNS Server: Local host name & return referral on non-resolution

All technical data, specifications and descriptions published on this website are provided for general information purposes only. We make reasonable efforts to ensure that the information is accurate and up to date; however, no guarantee, warranty or representation (express or implied) is given that any information is complete, correct, current or error-free. Images are for illustration purposes only, actual product may not include all parts visible.
