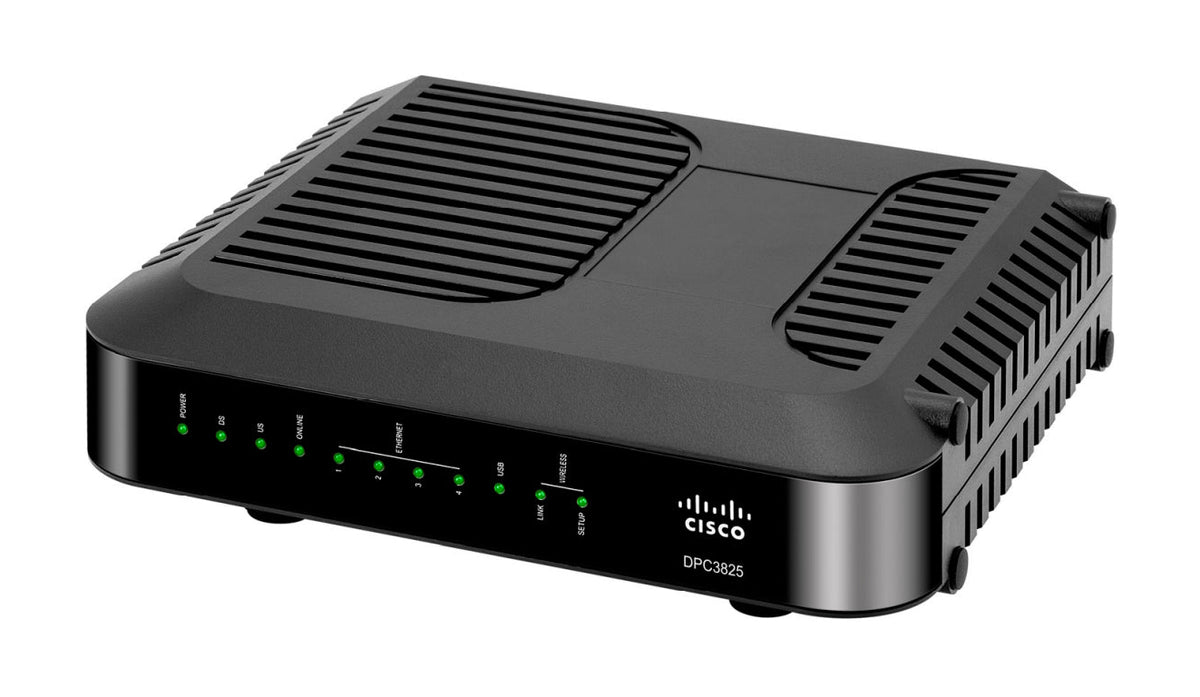

DPC3825 8x4 DOCSIS 3 Wireless Residential Gateway

Cisco · DPC3825
Condition

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
Single-Band WiFi 4 (N)
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

The Cisco Model DPC3825 8x4 DOCSIS 3.0 Wireless Residential Gateway (DPC3825) is a high-performance home gateway that combines a cable modem, router and wireless access point in a single device providing a cost-effective voice and networking solution for both the home and small office. The DPC3825 provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels can deliver downstream data rates in excess of 340 Mbps and upstream data rates in excess of 120 Mbps. That’s up to eight times faster downloads than conventional single-channel DOCSIS® 2.0 cable modems.

Features
DOCSIS
  • Compliant with DOCSIS 3.0, 2.0, 1.1, and 1.0 standards to deliver high-end performance and reliability
Connections
  • Four 1000/100/10BASE-T Ethernet ports to provide wired connectivity
  • High-performance broadband Internet connectivity to energize your online experience
  • 802.11n, 2×2 Wireless Access Point (WAP) with four Service Set Identifiers (SSIDs)
  • WPS, including a push-button switch to activate WPS for simplified and secure wireless setup
  • USB 2.0 Type 1 host port (factory option)
Design and Function
  • User-friendly web GUI with simplified navigation and quick setup feature
  • Context-sensitive pop-up Help for each configuration page
  • DOCSIS-5 compliant LED labeling and behavior provides a user- and technician-friendly method to check operational status and act as a troubleshooting tool
  • Attractive, compact design and versatile orientation to stand vertically, lie flat on the desktop or shelf, or mount easily on a wall
  • TR-068 compliant color-coded interface ports and corresponding cables simplify installation and setup
Management
  • Allows automatic software upgrades by your service provider
  • Provisionable via DOCSIS config file, SNMP, and/or XML
Security
  • User-configurable Parental Control blocks access to undesirable Internet sites
  • Advanced firewall technology deters hackers and protects the home network from unauthorized access
Wireless Access Point
802.11n
  • 2×2 2.4 GHz or 2×2 Dual Band 2.4/5 GHz wireless access point
  • (2) Internal Antennas
  • Wi-Fi Compliant
  • Wi-Fi Security (WPA2, WPA2-PSK, WPA, WPA-PSK, WEP)
  • WMM-QoS (Wireless Multi-Media – Quality of Service)
  • WMM Power Save
  • WPS
  • Wireless Bridging – WDS allows connection to “Range Extender Products”
  • RADIUS Authentication (Client, EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5)
  • MBSSID (4 SSIDs with unique NAT scopes)
  • Wi-Fi “Hot Spot” support (Static DHCP IP Scope over tunnel)
RF Downstream
Operating Frequency Range 88 to 1002 MHz
Tuner Frequency Range 88 to 1002 MHz
Tuner (2) Frequency agile block tuners, 32 MHz bandpass each
Demodulation 8 demodulators, 4 per tuner, each demodulator; 64 QAM or 256 QAM
Maximum Data Rate 8 downstream channels, each 6 MHz channel:
42.88 Mbps for 256 QAM and 30.34 Mbps for 64 QAM
Bandwidth 6 or 8 MHz
Operating Level Range -15 to +15 dBmV
Input Impedance 75 ohms
RF Upstream
Operating Frequency Range 5 to 42 MHz, 5 to 65 MHz or 5 to 85 MHz
Transmitter Frequency Range 5 to 42 MHz, 5 to 65 MHz or 5 to 85 MHz
Upstream Transmission 4 upstream channels
Modulation QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM / ATDMA, 128 QAM / SCDMA
Electrical
Input Voltage 15 VDC
Power Consumption (DC, in modem module) ~12 Watts Online

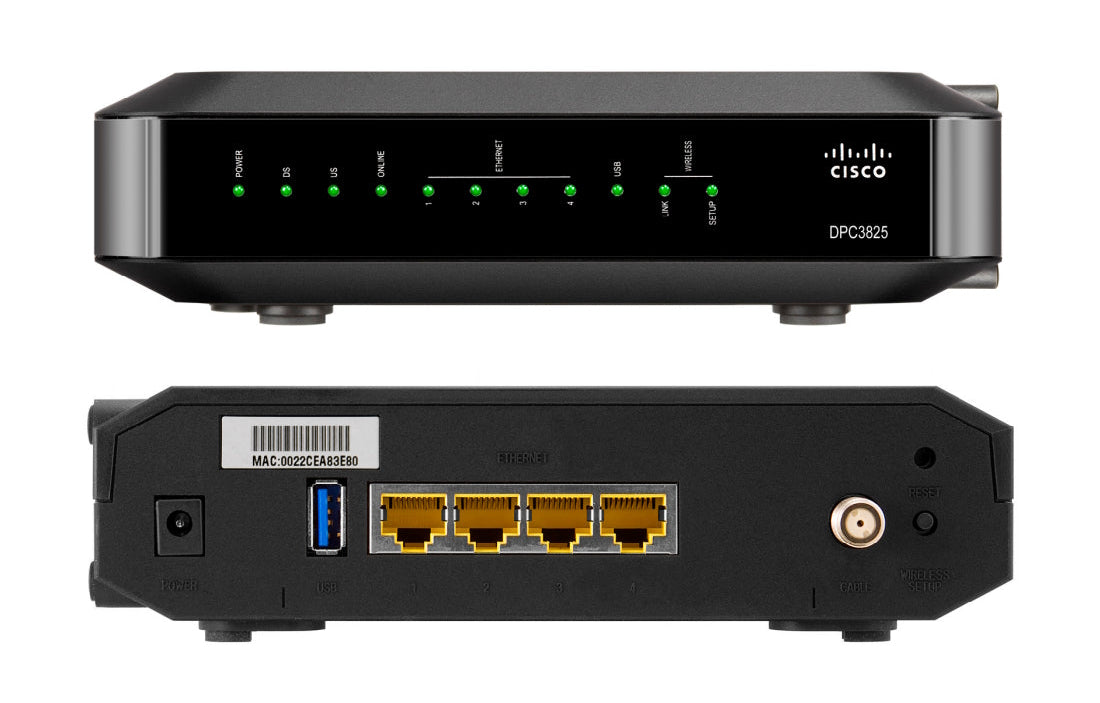

Data Ports 1000/100/10BASE-T (Auto-negotiate with Auto-MDIX): RJ-45 Ethernet (4)
USB 2.0: USB Type 1 (1)
RF Female F-Type
Output Impedance 75 ohms
Mechanical
Dimensions (W × D × H) F-Type connector included:
5.6 in × 7.3 in × 1.9 in (14.5 cm × 18.6 cm × 5 cm)

F-Type connector not included:
5.6 in × 6.9 in × 1.9 in (14.5 cm × 17.6 cm × 5 cm)
Weight 13.7 oz (0.390 kg)
Operating Temperature 32° to 104°F (0° to 40°C)
Operating Humidity 0 to 95% RH non-condensing
Storage Temperature −4° to 158°F (−20° to 70°C)
