DPC3848V 24x8 DOCSIS 3 Wireless Residential Gateway

Cisco · DPC3848V
Condition

Feature Highlights

DOCSIS 3.0 WAN Access
24x8 Channel Bonding
Dual-Band WiFi 5 (AC)
1.300 Mbps on 5Ghz 3x3 MIMO
450 Mbps on 2.4Ghz 3x3 MIMO
4 x Gigabit Ethernet LAN
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

Looking for a multifaceted, high-performance home and small office gateway that combines a cable modem, router, and wireless access points in a single device? You’ve found it in the Cisco Residential Wireless Gateway Model DPC3848. This cost-effective networking solution provides a faster connection to the Internet by incorporating 24 bonded downstream channels along with eight bonded upstream channels. Bonded channels can deliver downstream data rates of up to 900 Mbps and upstream data rates up to 170 Mbps. That’s up to 24 times faster downloads than conventional single-channel DOCSIS 2.0 cable modems.

Features
DOCSIS
  • Compliant with DOCSIS 3.0, 2.0, 1.1, and 1.0 standards to deliver high-end performance and reliability

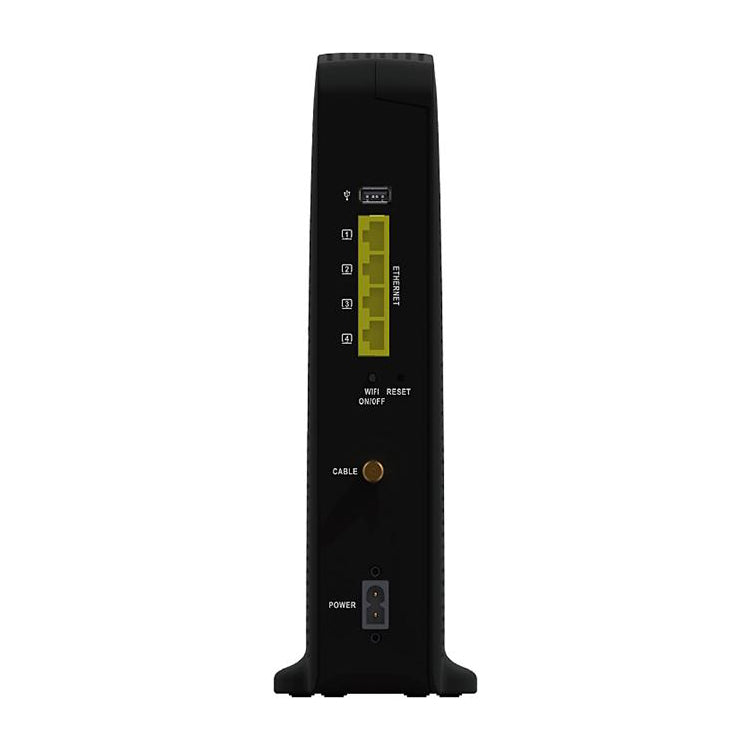

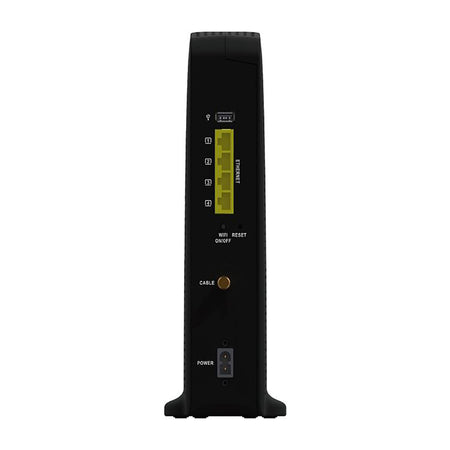

Connections
  • Four 10/100/1000BASE-T Ethernet ports to provide wired connectivity
  • High-performance broadband Internet connectivity to enhance your online experience
  • One USB 2.0 Type 2 connection
  • Dual-band concurrent 802.11ac Wireless Access Point (WAP) with eight Service Set Identifiers (SSIDs), backwards compatible with 802.11b/g/n
  • Including a pushbutton switch to activate WPS for simplified and highly secure wireless setup
  • Configurations with MoCA 2.0 available for in-home networking using existing coaxial cable

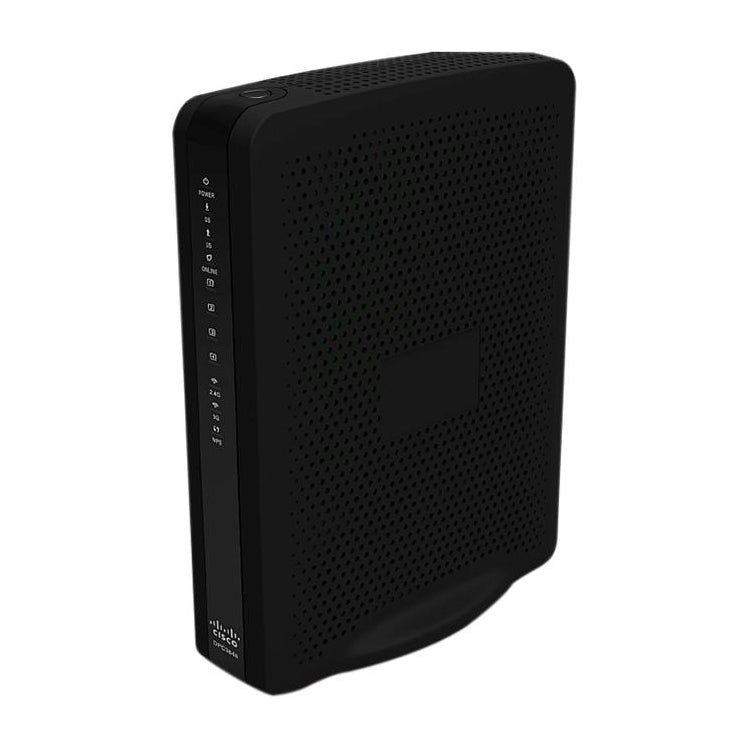

Design and Function
  • Attractive, compact design and versatile orientation to stand vertically on the desktop or shelf, or mount easily on a wall
  • Dual-color LED status indicators on the front panel provide an informative and easy-to-understand display that indicates the cable modem operational status
  • TR-068 compliant color-coded interface ports and corresponding cables simplify installation and setup
Management
  • User-configurable Parental Control blocks access to undesirable Internet sites
  • Advanced firewall technology deters hackers and protects the home network from unauthorized access
  • Residential gateway allows automatic software upgrades by your service provider
Wireless Access Point
802.11 b/g/n/ac
  • Available hardware options for wireless access point:
  • 3×3 MIMO, 2.4 GHz and 5 GHz dual band concurrent
  • 26 dBm output power for 2.4 GHz and 24 dBm output power for 5 GHz
  • 6 internal antennas
  • DFS certified operation for models with 5 GHz option for maximum spectrum utilization and reduced interference
  • Wi-Fi compliant security (WPA2-Enterprise, WPA2-PSK, WPA-Enterprise, WPA-PSK, WEP)
  • WMM-QoS (Wireless Multi-Media – Quality of Service)
  • WMM Power Save
  • WPS
  • Wireless Bridging – WDS (Wireless Distribution System) – allows connection to "Range Extender Products"
  • RADIUS Authentication (Client, EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5)
  • MBSSID (8 SSIDs with unique NAT scopes)
  • Wi-Fi “Hot Spot” support (Static DHCP IP Scope over tunnel)
RF Downstream
Operating frequency range 108 to 1002 MHz
Tuner frequency range 108 to 1002 MHz
Tuner 1 GHz full-band capture tuner that eliminates restrictions on downstream channel frequency plan
Demodulation 8 demodulators, each demodulator: 64 QAM or 256 QAM
Maximum data rate 24 downstream channels, each 6 MHz channel:
42.88 Mbps for 256 QAM and 30.34 Mbps for 64 QAM per channel
Bandwidth 6 MHz
Operating level range –15 to +15 dBmV
Input impedance 75 ohms
RF Upstream
Operating frequency range 5 to 42 MHz with options for 5 to 85 MHz
Upstream transmission Assumes 8 upstream channels
Modulation QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM/ATDMA, 128 QAM/SCDMA
Electrical
Input voltage 110–240 VAC
Power consumption (modem module) ~17 W
Data ports Gigabit Ethernet (Auto-negotiate with Auto-MDIX): RJ-45 Ethernet (4)
Optional with some part numbers: USB 2.0, USB Type 2 (1)
RF Female F-type
Output impedance 75 ohms
Mechanical
Dimension (H × D × W) Not F-Type connector:
Cisco DPC3848: 273 × 88 × 208 mm
Cisco DPC3848V: 273 × 88 × 208 mm
Cisco DPC3848VM: 281 × 88 × 243 mm
Weight ~2 lbs
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 0 to 95% RH noncondensing
Storage temperature –20 to 70° C (–4 to 158° F)
