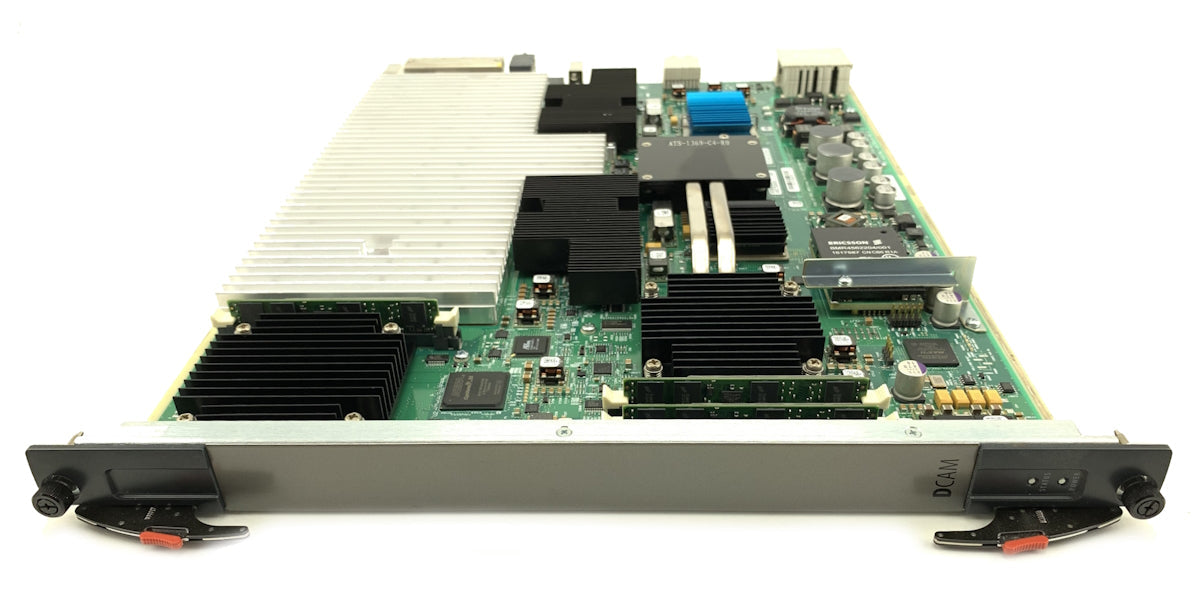

E6000 CER Downstream Cable Access Module

Arris · E6000 DCAM
1-Year Warranty
30-Day Returns
Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

Description
Technical Specifications

Support with Software Release 1.0 (Partial Feature Listing)
DCAM
-8 RF (F-Connectors) per Physical Interface Card (PIC)
-128 Channels (Annex A or Annex B)
-Hardware capacity for 256 channels
-Max 16 Channels per RF connector
-Up to 7+1 RF Sparing in Rel. 1.0
IPv6 Features
-Cable modem management
-Dual-Stack CPE
-IS-IS Routing with Multi-topology support
-Cable Source Verify with DHCP Lease Query
-Route Injection (RI) for DHCPv6 Prefix Delegation
-OSPFv3
-Prefix Stability
-Distribute Lists
-TFTP Enforce / Dynamic Shared Secret
-DS and US Subscriber Management Filters
DOCSIS 3.0 Multicast IP Video Support (via IGMPv3 Control)
Policy-Based Routing
DOCSIS 3.0 24 Channel Bonding (Downstream)
DOCSIS 3.0 Four Channel Bonding (Upstream)
IS-IS, BGPv4
PacketCableâ„¢ Multimedia Support
Dynamic Cable Modem Load Balancing
SII Lawful Intercept (RFC 3924)
802.1Q VLAN tagging
Extended ACLs & Named ACLs
Secure Shell v2 (SSHv2)
DOCSIS Ping
DHCP Relay Agent (Option 82)
DNS Client
TFTP Enforce and Dynamic Shared Secret
BSoD L2 VPN
BPI+ Enforce
IPDR/SP

RF Downstream
Frequency Range (MHz)57 to 999 (DOCSIS® 3.0); 90 to 1002 (EuroDOCSIS™ 3.0)
Modulation (QAM)64, 256 (256 Only in Release 1.0)
Data Rate (Mbps) (Max.)30.34 to 55.62 per channel (42.89 to 55.62 in Release 1.0)
RF Output Level (dBmV)41 to 60
Typical Modulation Error Ratio (MER) (dB)47
Symbol Rate (Msym/sec)5.361 (DOCSIS); 6.952 (EuroDOCSIS)
Bandwidth (MHz)6 (DOCSIS), 8 (EuroDOCSIS)
Output (load) impedance (ohms)75
Physical
Power-48 VDC (-40 to -72 VDC)
Power Consumption325 W nominal and TBD W max at -48 VDC, 77°F (25°C)
Operating Temperature:
Short Term °F (°C)+23 to +131 (+5 to +55)
Long Term °F (°C)+41 to +104 (+5 to +40)
Storage Temperature °F (°C)-40 to +158 (-40 to +70)
Operating Humidity (Min.-Max.)5 to 85% (Non condensing)
Dimensions (H x W x D) in. (cm)13.8 x 1.2 x 17.8 (35.0 x 3.0 x 45.3)
Weight lbs. (kg)approx. 5.3 (2.4)
