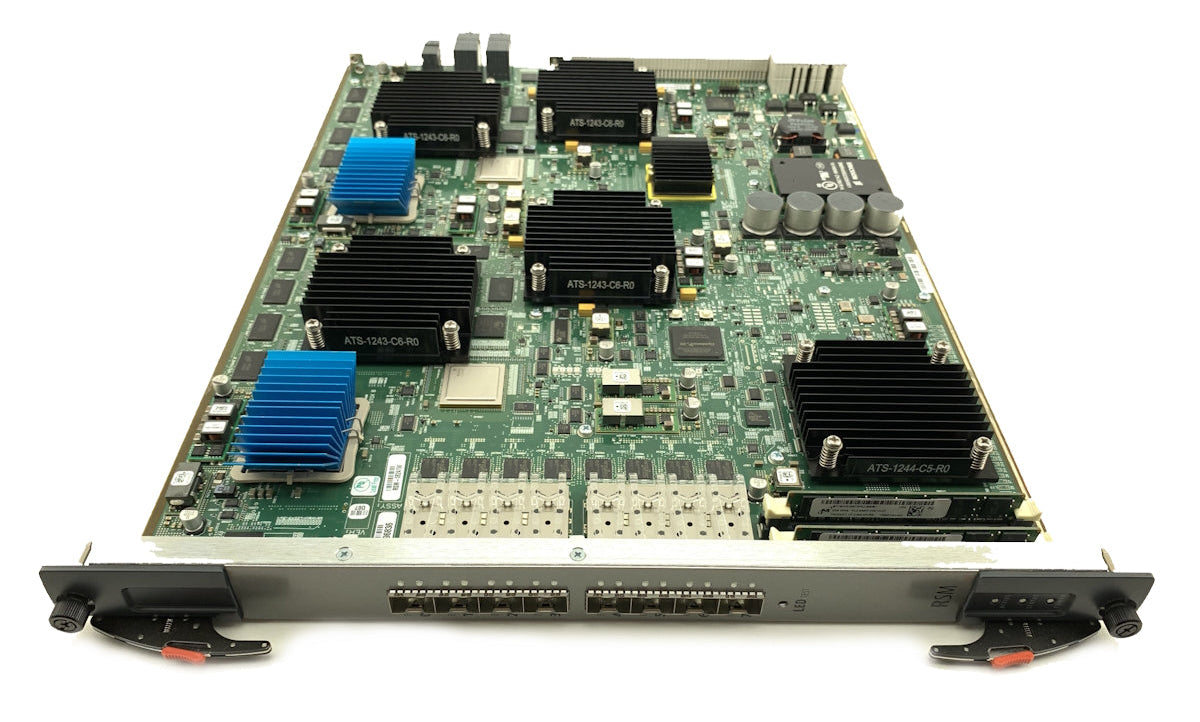

E6000 CER Router System Module
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204
Software Release 1.0 Features (Partial List)
Downstream CAM (DCAM) (128D Annex A or B)
- 8 RF (F Connectors) per Physical Interface Card (PIC)
- 128 Channels
- Max 16 Channels per RF connector
- Up to 7+1 RF Sparing in Rel. 1.0
Upstream CAM (UCAM)
- Flexible Mapping of Upstream Channels to RF Connectors
- Up to 12 Upstream Channels per RF Connector
- 24 RF (MCX) Connectors per Physical Interface Card (PIC)
- Up to 5+1 RF Sparing in Rel. 1.0
IPv6 Features
- Cable Modem Management
- Dual-Stack CPE
- IS-IS Routing with Multi-topology support
- Cable Source Verify with DHCP Lease Query
- Route Injection (RI) for DHCPv6 Prefix Delegation
- OSPFv3
Prefix Stability
DOCSIS 3.0 Multicast IP Video Support (via IGMPv3 Control)
Policy-Based Routing
DOCSIS 3.0 24 Channel Bonding (Downstream)
DOCSIS 3.0 Four Channel Bonding (Upstream)
IS-IS, BGPv4
PacketCableâ„¢ Multimedia Support
Dynamic Cable Modem Load Balancing
SII Lawful Intercept (RFC 3924)
802.1Q VLAN tagging
Extended ACLs & Named ACLs
Secure Shell v2 (SSHv2)
DOCSIS Ping
DHCP Relay Agent (Option 82)
DNS Client
TFTP Enforce and Dynamic MIC
BSoD L2 VPN
BPI+ Enforce
IPDR/SP
| Installation Environment | |
|---|---|
| Management Interfaces | 10/100/1000 Mbps Ethernet (RJ-45) plus Console (serial port, RJ45) |
| Network-side Interfaces | 10 Gigabit Ethernet (SFP+) auto-baud, eight per module |
| Connector Access | NSI Ethernet ports via front of chassis, management ports via rear (RSM PIC) |
| Management Access | |
| In-band Management | Access Control Lists via any NSI port |
| Out-of-Band Management | Via dedicated Ethernet port on RSM PIC |
| Console | Serial port on RSM PIC |
| Future Capabilities (not supported in Release 1.0) | |
| Dedicated Ethernet Interface | On RPIC for Conditional Access System (CAS) |
| Active and Stand-by DT1 | Interfaces on RPIC |
| Physical | |
| Power | -48 VDC (-40 to -72 VDC) |
| Power Consumption | 215 W nominal and TBD W max at -48 VDC, 77°F (25°C) |
| Operating Temperature – Short Term °F (°C) | +23 to +131 (+5 to +55) |
| Operating Temperature – Long Term °F (°C) | +41 to +104 (+5 to +40) |
| Storage Temperature °F (°C) | -40 to +158 (-40 to +70) |
| Operating Humidity (Min.–Max.) | 5 to 85% (Non-condensing) |
| Dimensions (H × W × D) in. (cm) | 13.8 × 1.2 × 17.8 (35.0 × 3.0 × 45.3) |
| Weight lbs. (kg) | 5.1 (2.3) |
