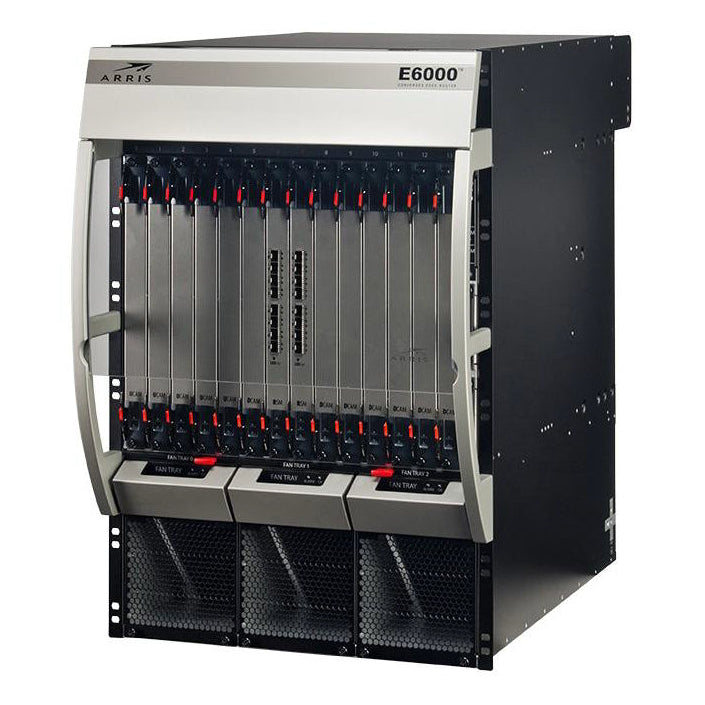

E6000 Converged Edge Router Chassis "Shell"
Arris · E6000 CHAS
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
The E6000® Converged Edge Router (CER) is a next generation Converged Cable Access Platform (CCAP™) that provides cable operators unprecedented advances in channel density, power efficiency, and cost savings in a redundant, integrated architecture designed from the ground up for high availability. This powerful design allows operators to converge all services (video, high speed data, and voice) on a single physical connector, enabling additional savings in capital and operational expenditures along with increased operational efficiency.
| RF Downstream | |
|---|---|
| Frequency Range (MHz) Gen 1 DCAM | 57 to 999 (DOCSIS 3.0) |
| Frequency Range (MHz) Gen 2 DCAM-2 | 90 to 1002 (EuroDOCSIS 3.0) |
| Frequency Range (MHz) | 108 to 1218 |
| RF Output Level (dBmV) | 25 to 60 (SC-QAMs) |
| Typical MER (dB) | 47 |
| Modulation (QAM) | 64, 256, DOCSIS 3.1 |
| Data Rate (Mbps, Max) | 30.34 to 55.62 per channel (SC-QAMs) |
| Output Impedance (ohms) | 75 |
| Physical | |
| Power (Gen 1) | -48 VDC (-40 to -72 VDC) |
| Power (Gen 2) | -48 VDC (-44 to -72 VDC) |
| Power Consumption (full-fill Gen 1 system) | 3,800 W nominal at -48 VDC, 77°F (25°C) |
| Power Consumption (full-fill Gen 2 system) | 5,800 W nominal at -48 VDC, 77°F (25°C) |
| Operating Temperature (Short Term °F / °C) | +23 to +131 (-5 to +50) |
| Operating Temperature (Long Term °F / °C) | +41 to +104 (+5 to +40) |
| Storage Temperature (°F / °C) | -40 to +158 (-40 to +70) |
| Operating Humidity | 5 to 85% (non-condensing) |
| Dimensions (H × W × D in / cm) | 28 × 17.4 × 32.5 (72.0 × 44.2 × 82.6) |
| Weight (lbs / kg) | Approx. 235 (107) |
| RF Upstream | |
| Frequency Range (MHz) | 5 to 85 (UCAM) 5 to 204 (UCAM-2) |
| SC-QAM Modulation | QPSK, 16 QAM, 32 QAM, 64 QAM |
| Channel Type | OFDMA (UCAM-2), TDMA, ATDMA, TDMA/ATDMA |
| Data Rate (Mbps, Max) | 30.72 per channel (ATDMA) |
| RF Input Level (dBmV) | -16 to +29 |
| Frequency Resolution (kHz) | < 1 |
| Symbol Rate (Ksym/sec) | 1280, 2560, 5120 |
| Bandwidth per SC-QAM (MHz) | 1.6, 3.2, 6.4 |
| Management and NSI Interfaces | |
| Management Interfaces (Gen 1) | 10/100/1000 Mbps Ethernet (RJ-45) plus Console (serial port, RJ45) |
| Management Interfaces (Gen 2) | 10/100/1000 Mbps Ethernet (RJ-45) plus Console (serial port, RJ45) |
| Network-side Interfaces (Gen 1) | 10 Gigabit Ethernet (SFP+) auto-baud, eight per card |
| Network-side Interfaces (Gen 2) | 100 Gigabit Ethernet (QSFP-28), three per slot; 10 Gigabit Ethernet (SFP+), ten per slot |
| Management Access | |
| In-band Management | With Access Control Lists via any NSI port |
| Out-of-Band Management | Via dedicated Ethernet port on RPIC and RPIC-2Q |
| Console Port | Serial port on RPIC and RPIC-2Q |
