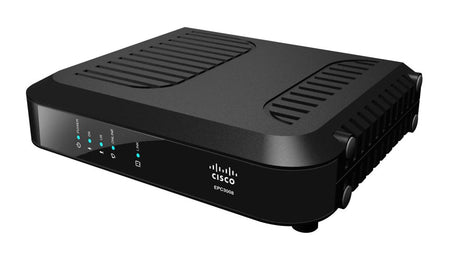

EPC3008 EuroDOCSIS 3 8x4 Cable Modem

Cisco · EPC3008

Condition

Refurbished

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
1 x Gigabit Ethernet LAN

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The Cisco Model EPC3008 EuroDOCSIS 3.0 8x4 Cable Modem (EPC3008) provides EuroDOCSIS broadband service providers with a cost-effective solution for delivering high-speed bi-directional data services. The EPC3008 provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels deliver downstream data rates in excess of 440 Mbps. That’s up to eight times faster than conventional single-channel EuroDOCSIS 2.0 cable modems.

Features
EuroDOCSIS	Eight (8) bonded downstream channels with data rates in excess of 440 Mbps Four (4) bonded upstream channels with data rates in excess of 120 Mbps Designed to meet EuroDOCSIS 3.0 specifications and backward compatibility with EuroDOCSIS 2.0, 1.1 and 1.0 networks Enhanced packet processing technology to maximize performance Expanded tuning range, 88–1002 MHz Color-coded connectors and cables for easy installation and setup
Connections	10/100/1000BASE-T auto-sensing/auto-MDIX Ethernet port Support for up to 64 users (on user-supplied Ethernet hubs)
Design and Function	Attractive compact design with versatile orientation: stand vertically, lie flat, or mount on a wall Dual-color LED status indicators on the front panel provide an informative and easy-to-understand display of modem operational status Easy-to-understand generic icons indicate the purpose of LEDs Rugged electronic components for long-term reliability
Management	Software upgradeable by network download Remote manageability using SNMP V1/V2 and V3

RF Downstream
Operating Frequency Range	88 to 1002 MHz
Tuner Frequency Range	88 to 1002 MHz
Tuner	(1) Frequency agile block tuner, 96 MHz bandpass
Demodulation	8 demodulators, 4 per tuner, each demodulator; 64 QAM or 256 QAM
Maximum Data Rate	8 downstream channels, each 6 MHz channel: 42.88 Mbps for 256 QAM and 30.34 Mbps for 64 QAM
Bandwidth	8 and/or 6 MHz
Operating Level Range	43 to 73 dBµV for 64 QAM 47 to 77 dBµV for 256 QAM
Input Impedance	75 ohms
RF Upstream
Operating Frequency Range	5 to 65 MHz
Transmitter Frequency Range	5 to 65 MHz
Upstream Transmission	4 upstream channels
Modulation	QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM at ATDMA mode QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM, 128 QAM at SCDMA mode
Electrical
Input Voltage	12 VDC / 50–60 Hz
Power Consumption (Modem Module)	~ 5.0 Watts
Data Ports	Ethernet 10/100/1000BASE-T (Auto-sensing with Auto-MDIX) RJ-45 Ethernet (1)
RF	Female "F" type
Impedance	75 ohms
Mechanical
Dimensions (W × D × H) (Approximate)	Not including “F” connector: 7 in × 5.9 in × 2.76 in (17.8 cm × 14.9 cm × 7.0 cm)
Weight (Approximate)	0.24 kg (8.4 oz)
Battery Type and Capacity	1 cartridge, Li-Ion, 3 cells, 2600 mAh
Operating Temperature	32° to 104°F (0° to 40°C)
Operating Humidity	0 to 90% RH non-condensing
Storage Temperature	−4° to 140°F (−20° to 60°C)
