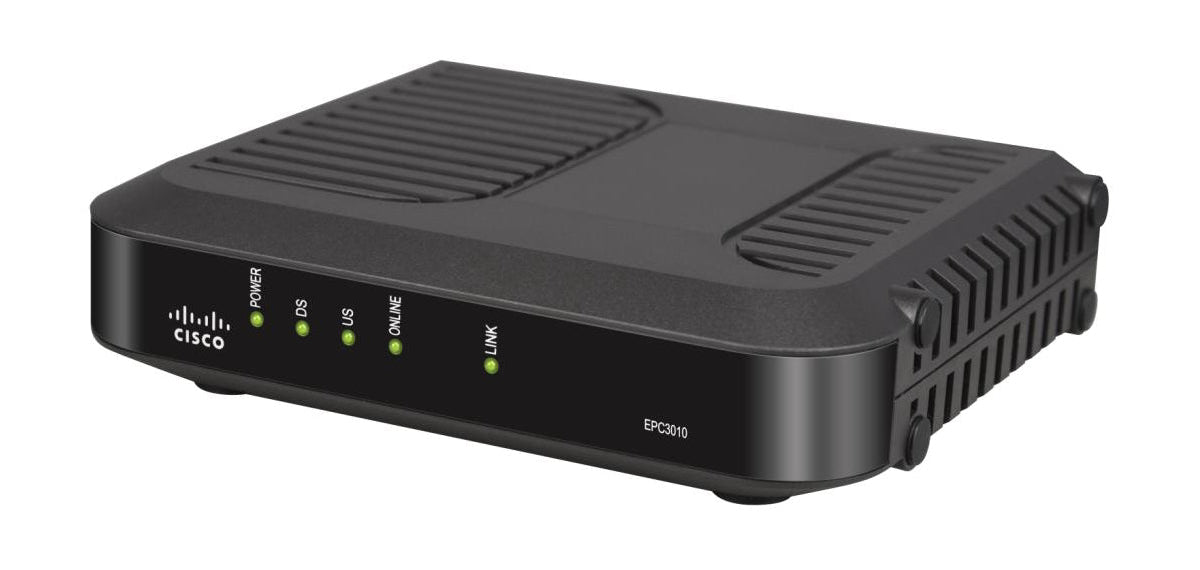

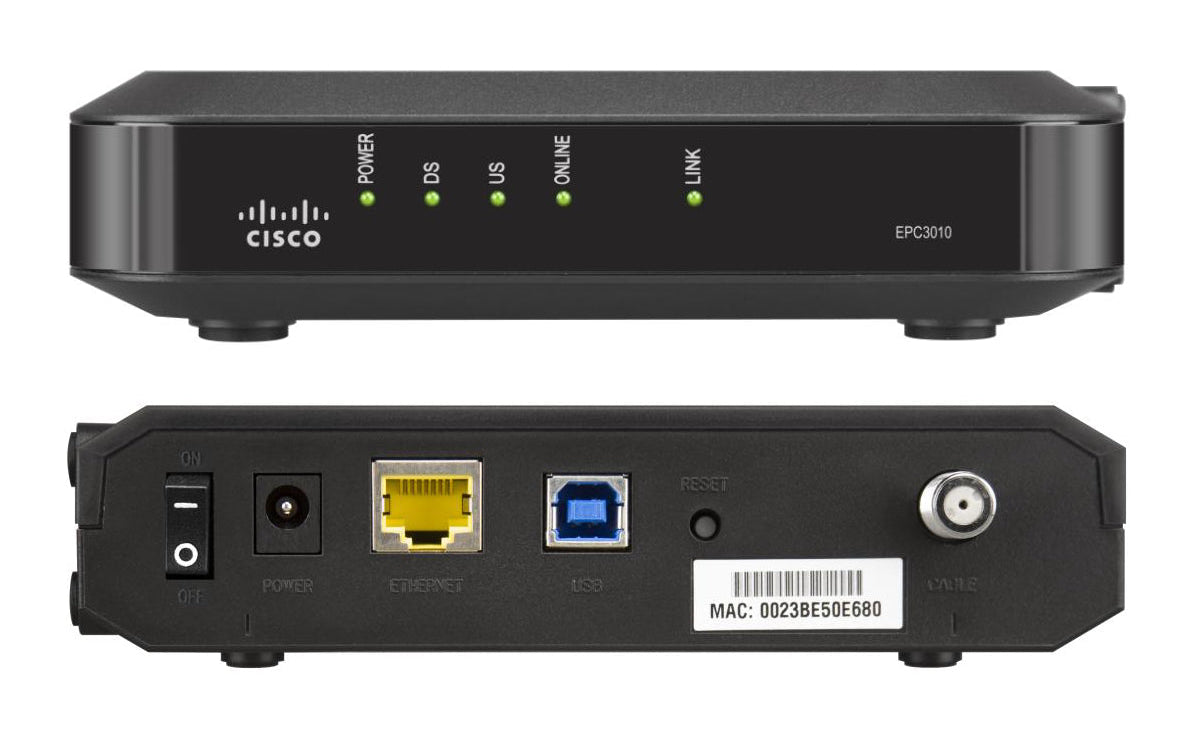

EPC3010 DOCSIS 3 8x4 Cable Modem

Cisco · EPC3010

Condition

Refurbished

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
1 x Gigabit Ethernet LAN

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The Cisco Model EPC3010 8x4 EuroDOCSIS 3.0 Cable Modem (EPC3010) provides EuroDOCSIS™ broadband service providers with a cost-effective solution for delivering high-speed bi-directional data services. The EPC3010 provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels deliver downstream data rates in excess of 440 Mbps (up to eight times faster than conventional single-channel EuroDOCSIS 2.0 cable modems) and upstream data rates four times as fast.

Category	Details
EuroDOCSIS	Compliant with EuroDOCSIS 3.0, 2.0, 1.1, and 1.0 standards to deliver high-end performance and reliability
Connections	1000/100/10BASE-T auto-sensing/auto-MDIX Ethernet port USB 2.0 data port (option) Support for up to 64 users (1 USB port user and up to 63 users on user-supplied Ethernet hubs)
Design and Function	Dual color LEDs provide a user-friendly method to check real-time operational status Attractive, compact design and versatile orientation TR-068 compliant color-coded interface ports and cables Rugged electronic components for long-term reliability
Management	Allows automatic software upgradeable by network download Remote manageability using SNMP V1/V2 and V3
Software and Documentation	CD-ROM containing user guide and USB drivers for Windows 7, Vista, XP, 2000

RF Downstream
Operating Frequency Range	108 to 1002 MHz
Tuner Frequency Range	108 to 1002 MHz
Tuner	(2) Frequency agile block tuners, 32 MHz bandpass each
Demodulation	8 demodulators, 4 per tuner, each 64 QAM or 256 QAM
Maximum Data Rate	8 downstream channels, 8 MHz each: 55.62 Mbps (256 QAM) / 41.71 Mbps (64 QAM)
Bandwidth	8 or 6 MHz
Operating Level Range	+43 to +73 dBµV (64 QAM) +47 to +77 dBµV (256 QAM)
Input Impedance	75 ohms
RF Upstream
Operating Frequency Range	5 to 65 MHz
Transmitter Frequency Range	5 to 65 MHz
Upstream Transmission	4 upstream channels
Modulation	QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM (ATDMA) 128 QAM (SCDMA)
Electrical
Input Voltage	12 VDC
Power Consumption (modem module)	~7 Watts
Data Ports	GigE RJ-45 (4) USB 2.0 Type B (1)
RF	Female F-Type
Output Impedance	75 ohms
Mechanical
Dimensions (W × D × H)	Without F-Type: 15 × 12.2 × 3.5 cm (6 × 4.75 × 1.6 in.) With F-Type: 15 × 13.3 × 3.5 cm (6 × 5.5 × 1.6 in.)
Weight	0.280 kg (9.9 oz)
Operating Temperature	0°–40°C (32°–104°F)
Operating Humidity	0–95% RH non-condensing
Storage Temperature	−20°–70°C (−4°–158°F)
